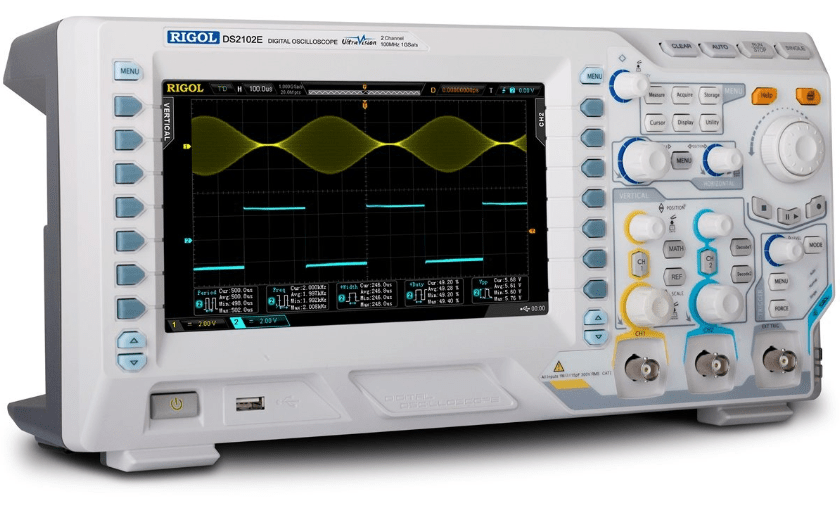

Rigol DS2102E
High quality 2 channel DSO with 100 MHz bandwidth, 1 GSa/s (per Channel) and 28 Mpts memory depth (per Channel).
100 MHz Largeur de bande
2 voies analogiques Nombre de voies
1 GSa/s Taux d'échantillonnage en temps réel
56 Mpts Profondeur mémoire
8 pouces (TFT LCD) Taille de l'écran
| Attribut | Valeur |
|---|---|
| Largeur de bande | 100 MHz |
| Nombre de voies | 2 voies analogiques |
| Taux d'échantillonnage en temps réel | 1 GSa/s |
| Profondeur mémoire | 56 Mpts |
| Taille de l'écran | 8 pouces (TFT LCD) |
| Résolution verticale | 8 bits |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Base de temps | 5 ns/div à 50 s/div |
| Taux de capture des formes d'onde | jusqu'à 50 000 formes d'onde/s |
| Interface de communication | USB Host, USB Device, LAN (LXI) |
| Model | DS2102E |
|---|
The Rigol DS2102E is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s per channel and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
