Rigol

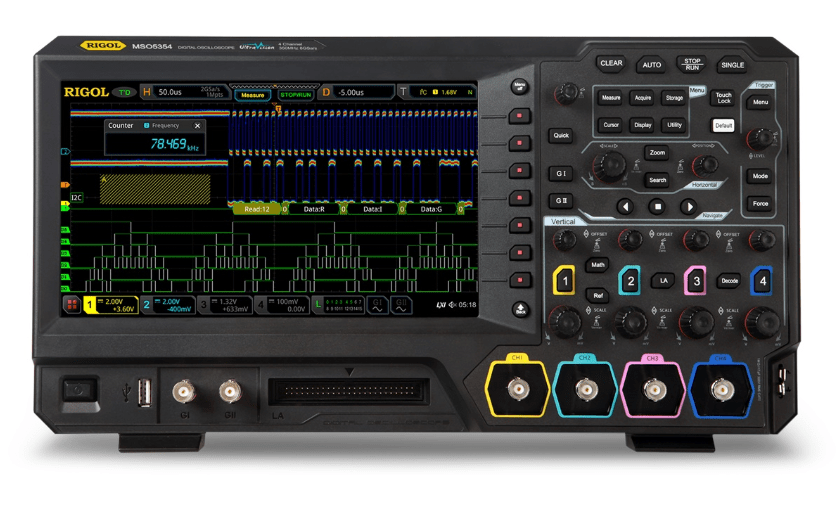

Rigol MSO5354
High quality 4 channel oscilloscope with 350 MHz Bandwidth, 8 GSa/s sample rate, up to 200 Mpts memory depth and a 22.9 cm touchdisplay 1024x600 pixel.
Upgradable to a MSO with a 16 channel logic analyzer and expandable by a 2 channel waveform generator.
350 MHz Largeur de bande
4 voies Nombre de voies analogiques
16 voies Nombre de voies numériques
8 GSa/s Taux d'échantillonnage maximum
200 Mpts Profondeur mémoire
| Attribut | Valeur |
|---|---|
| Largeur de bande | 350 MHz |
| Nombre de voies analogiques | 4 voies |
| Nombre de voies numériques | 16 voies |
| Taux d'échantillonnage maximum | 8 GSa/s |
| Profondeur mémoire | 200 Mpts |
| Taux de capture des formes d'onde | 500 000 formes d'onde/s |
| Résolution verticale | 8 bits (12 bits en mode haute résolution) |
| Taille de l'écran | 10,1 pouces, écran tactile capacitif |
| Résolution de l'écran | 1024 x 600 pixels |
| Interfaces de communication | USB Host, USB Device, LAN (LXI), HDMI |
| Model | MSO5354 |
|---|
The MSO5000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology
developed by RIGOL. Integrating 6 independent instruments into one, the MSO5000 series is equipped with super high sample bandwidth ratio of 8 GSa/s, extremely high memory depth of up to 200 Mpts, clear 9" display, excellent waveform capture rate of 500.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today's inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers.
The MSO5000 series digital oscilloscope launched by RIGOL this time integrates 7 independent instruments into 1, including one digital oscilloscope, one spectrum analyzer, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO5000 series offers you a flexible and economical solution to address your actual needs.
