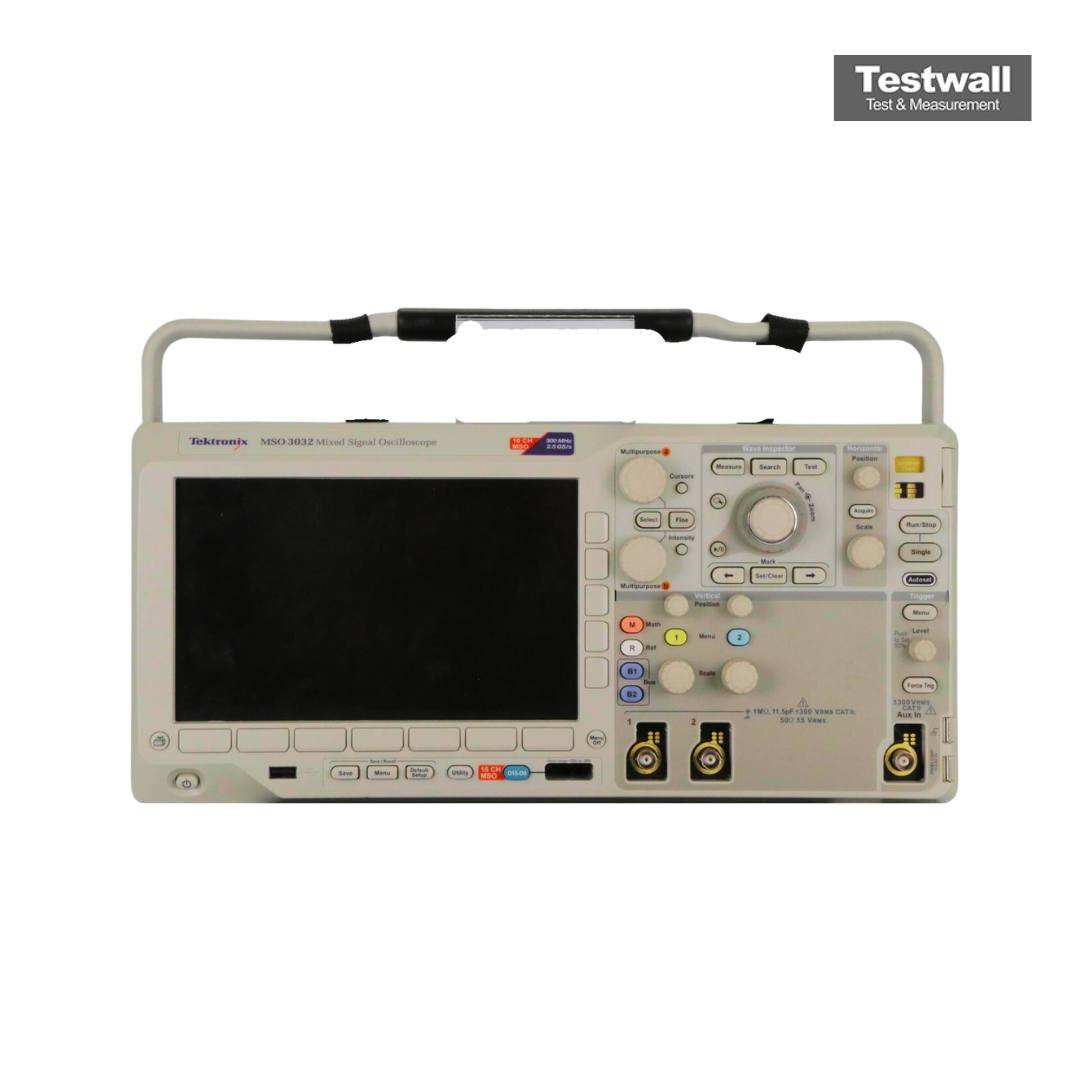

Tektronix MSO3032
| Attribut | Valeur |
|---|---|
| Largeur de bande | 300 MHz |
| Nombre de voies analogiques | 2 |
| Nombre de voies numériques | 16 |
| Taux d'échantillonnage | 2,5 GS/s |
| Longueur d'enregistrement | 10 M points |
| Résolution verticale | 8 bits |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Base de temps | 4 ns/div à 1000 s/div |
| Taux de capture des formes d'onde | 50 000 formes d'onde par seconde |
| Interface de connectivité | USB, LAN (Ethernet), port GPIB en option |
Tektronix MSO3032 Options:
- MSO3032 - DPO3AUDIO - Audio Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2S, Left Justified, Right Justified, TDM, and custom audio buses, as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3032 - DPO3AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3032 - DPO3COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3032 - DPO3EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3032 - DPO3PWR - Power Analysis Module. Enables quick and accurate analysis of power quality, switching loss, harmonics, safe operating area (SOA), modulation, ripple, and slew rate (dI/dt, dV/dt).
- MSO3032 - DPO3VID - HDTV and Custom (nonstandard) Video Triggering Module.
- MSO3032 - Opt. A0 - North America power plug
- MSO3032 - Opt. A1 - Universal Euro power plug
- MSO3032 - Opt. A2 - United Kingdom power plug
- MSO3032 - Opt. A3 - Australia power plug
- MSO3032 - Opt. A5 - Switzerland power plug
- MSO3032 - Opt. A6 - Japan power plug
- MSO3032 - Opt. A10 - China power plug
- MSO3032 - Opt. A11 - India power plug
- MSO3032 - Opt. A99 - No power cord
- MSO3032 - Opt. L0 - English manual
- MSO3032 - Opt. L1 - French manual
- MSO3032 - Opt. L2 - Italian manual
- MSO3032 - Opt. L3 - German manual
- MSO3032 - Opt. L4 - Spanish manual
- MSO3032 - Opt. L5 - Japanese manual
- MSO3032 - Opt. L6 - Portuguese manual
- MSO3032 - Opt. L7 - Simplified Chinese manual
- MSO3032 - Opt. L8 - Traditional Chinese manual
- MSO3032 - Opt. L9 - Korean manual
- MSO3032 - Opt. L10 - Russian manual
- MSO3032 - Opt. L99 - No manual
- MSO3032 - Opt. C3 - Calibration Service 3 years
- MSO3032 - Opt. C5 - Calibration Service 5 years
- MSO3032 - Opt. CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- MSO3032 - Opt. D1 - Calibration Data Report
- MSO3032 - Opt. D3 - Calibration Data Report 3 years (with Opt. C3)
- MSO3032 - Opt. D5 - Calibration Data Report 5 years (with Opt. C5)
- MSO3032 - Opt. R5 - Repair Service 5 years (including warranty)
| Model | MSO3032 |
|---|
L'oscilloscope mixte Tektronix MSO3032 combine 2 canaux analogiques et 16 numériques avec une bande passante de 300 MHz, une mémoire de 5 Mpoints, une résolution temporelle MagniVu™ de 121,2 ps, une navigation Wave Inspector®, des déclenchements avancés, une interface de sonde TekVPI®, un écran WVGA 9″ et une connectivité USB/Ethernet rapide.
Conçu pour le débogage efficace des systèmes embarqués, il prend en charge l'analyse de bus série (I2C, SPI, CAN, RS‑232, etc.), FFT, plus de 50k formes d’onde/s et des mesures automatisées pour les conceptions mixtes.
Testwall peut fournir l’oscilloscope mixte Tektronix MSO3032 d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit des instruments de haute performance avec une fiabilité et une qualité de service inégalées. Contactez-nous pour l’étalonnage ou la réparation du Tektronix MSO3032.
