Tektronix MSO56B
| Attribut | Valeur |
|---|---|
| Nombre de voies | 6 voies analogiques |
| Bande passante | 500 MHz (extensible jusqu'à 2 GHz) |
| Taux d'échantillonnage | 6,25 GS/s sur toutes les voies simultanément |
| Résolution verticale | 12 bits (jusqu'à 16 bits en mode haute résolution) |
| Longueur d'enregistrement | Jusqu'à 250 Mpoints par voie |
| Voies numériques | 48 voies logiques numériques (via sondes optionnelles FlexChannel) |
| Écran | Écran tactile capacitif HD de 15,6 pouces (1920 x 1080 pixels) |
| Déclenchement et décodage série | Prise en charge de protocoles série : I²C, SPI, USB, CAN, LIN, RS-232 et autres |
| Connectivité | USB 3.0, LAN (LXI), DisplayPort, entrée/sortie auxiliaire |
| Système d'exploitation | Windows 10 intégré avec interface utilisateur tactile intuitive |
| Model | MSO56B |
|---|

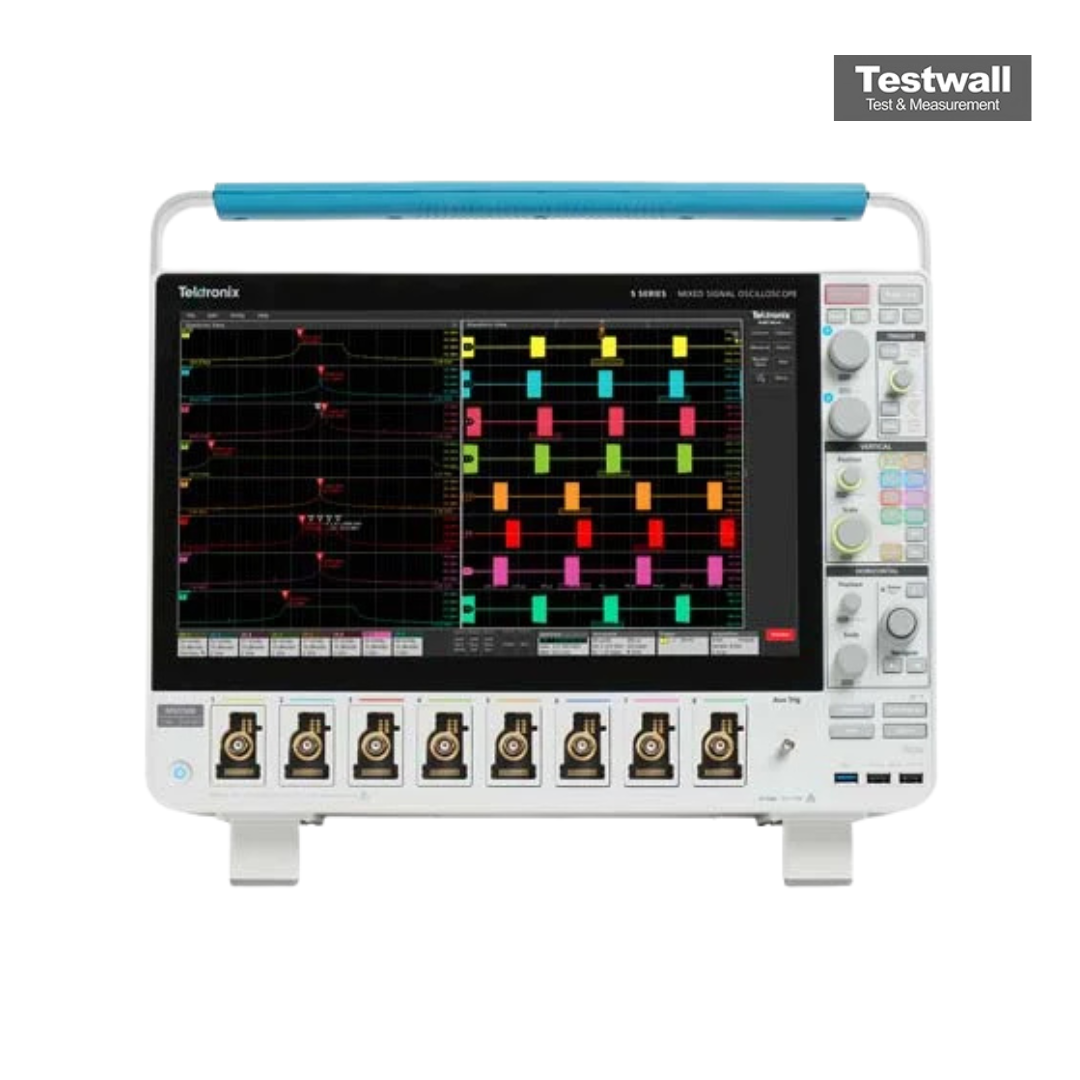

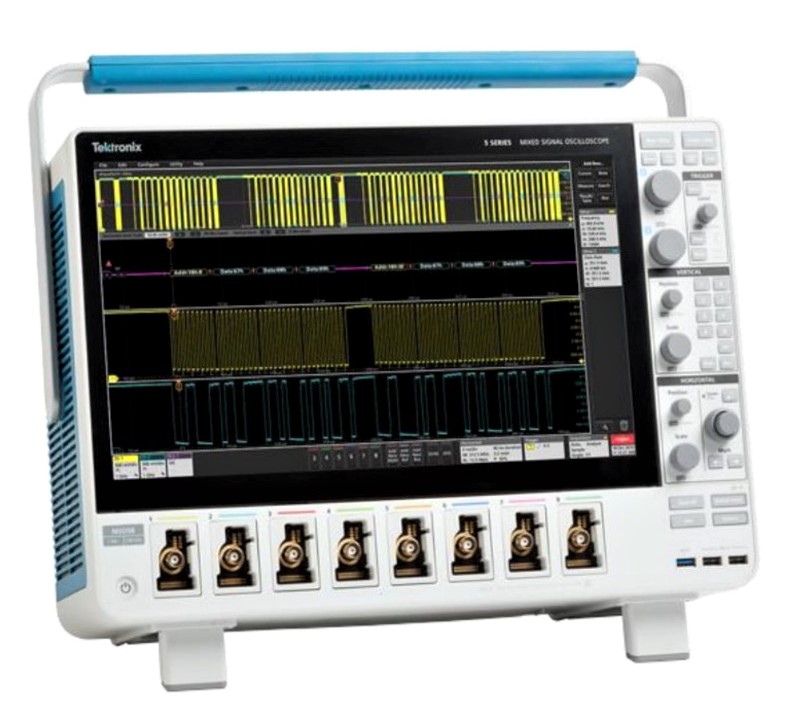

TEKTRONIX MSO56B Mixed Signal Oscilloscope
The Tektronix MSO56B offers an advanced Mixed Signal Oscilloscope solution, providing better visibility into complex systems with six analog channels, featuring a large 15.6-inch high-definition display. This scope is ideal for applications such as embedded systems, automotive electronics, power supply design, and more, where multiple analog signals need to be observed and characterized for device performance verification and system debugging. The FlexChannel technology enables each input to be used as a single analog channel, eight digital logic inputs (with the TLP058 logic probe), or as simultaneous analog and spectrum views. The Tektronix MSO56B Mixed Signal Oscilloscope redefines oscilloscope capabilities with its flexibility and configurability, providing users with ample options to view and analyze waveforms efficiently.
The MSO56B Mixed Signal Oscilloscope excels in performance, featuring up to 2 GHz analog bandwidth, 6.25 GS/s sample rates, and a 12-bit analog-to-digital converter, providing accurate signal fidelity and resolution for precise waveform analysis. It employs Digital Phosphor technology with FastAcq for fast waveform capture, enabling the observation of infrequent and complex system problems. The oscilloscope also offers comprehensive triggering options, including Visual Trigger, which scans through all acquisitions and triggers based on on-screen geometric shapes. With the TekVPI probe interface and IsoVu Isolated Measurement System, the MSO56B ensures precise and reliable measurements while minimizing the effects of common mode interference. Overall, this oscilloscope provides an intuitive user interface, powerful analysis tools, and extensive search and navigation capabilities, making it an excellent choice for demanding measurement and debugging tasks in various applications.
Specifications for the TEKTRONIX MSO56B Mixed Signal Oscilloscope Include:
| Bandwidth | 2 GHz |
| Channels | 6 analog/48 digital ch. |
| Sample Rate | 6.25 GS/s on all analog/digital ch. |
| Record Length | 62.5 Mpoints on all analog/digital ch. |
