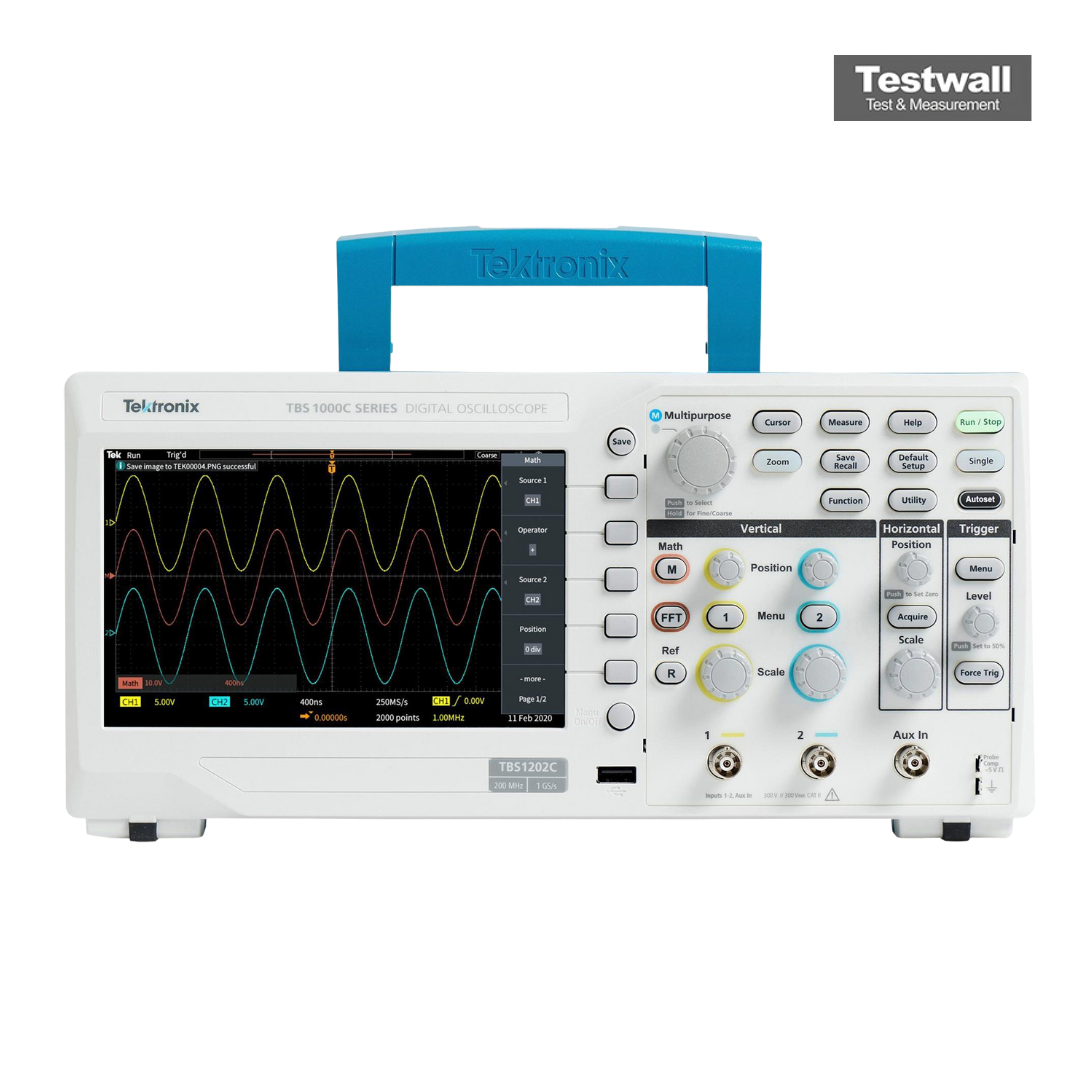

Tektronix TBS1202C
| Attribut | Valeur |
|---|---|
| Bande passante | 200 MHz |
| Nombre de voies | 2 voies analogiques |
| Taux d'échantillonnage | 2 GS/s |
| Longueur d'enregistrement | 2,5 kpts par voie |
| Résolution verticale | 8 bits |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Base de temps | 5 ns/div à 50 s/div |
| Affichage | Écran couleur LCD TFT 7 pouces (WVGA 800 x 480) |
| Interfaces de connectivité | USB 2.0 (hôte et périphérique), Wi-Fi (en option) |
| Fonctions de mesure automatique | 34 mesures automatiques intégrées |
Tektronix TBS1202C Options:
- TBS1202C - L0 - English front panel overlay
- TBS1202C - L1 - French front panel overlay
- TBS1202C - L2 - Italian front panel overlay
- TBS1202C - L3 - German front panel overlay
- TBS1202C - L4 - Spanish front panel overlay
- TBS1202C - L5 - Japanese front panel overlay
- TBS1202C - L6 - Portuguese front panel overlay
- TBS1202C - L7 - Simplified Chinese front panel overlay
- TBS1202C - L8 - Traditional Chinese front panel overlay
- TBS1202C - L9 - Korean front panel overlay
- TBS1202C - L10 - Russian front panel overlay
- TBS1202C - A0 - North America power plug (115 V, 60 Hz)
- TBS1202C - A1 - Universal Euro power plug (220 V, 50 Hz)
- TBS1202C - A2 - United Kingdom power plug (240 V, 50 Hz)
- TBS1202C - A3 - Australia power plug (240 V, 50 Hz)
- TBS1202C - A5 - Switzerland power plug (220 V, 50 Hz)
- TBS1202C - A6 - Japan power plug (100 V, 50/60 Hz)
- TBS1202C - A10 - China power plug (50 Hz)
- TBS1202C - A11 - India power plug (50 Hz)
- TBS1202C - E1 - Universal Euro, United Kingdom, and Switzerland power plug
- TBS1202C - C3 - Calibration Service three years. Includes traceable calibration or functional verification applicable, for recommended calibrations. Coverage includes the initial calibration plus two years calibration coverage.
- TBS1202C - C5 - Calibration Service five years. Includes traceable calibration or functional verification applicable, for recommended calibrations. Coverage includes the initial calibration plus four years calibration coverage.
- TBS1202C - D1 - Calibration Data Report
- TBS1202C - D3 - Calibration Data Report three years (with Option C3)
- TBS1202C - D5 - Calibration Data Report five years (with Option C5)
- TBS1202C - T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a five days turnaround time and priority access to customer support.
- TBS1202C - T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD, or EOS plus preventative maintenance. Including a five days turnaround time and priority access to customer support.
| Model | TBS1202C |
|---|

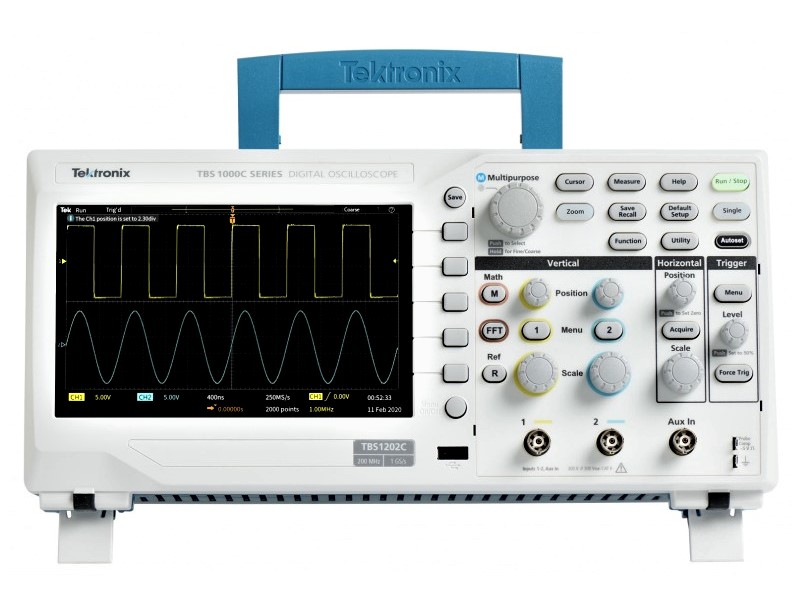

Tektronix TBS1202C Oscilloscope
The TTektronix TBS1202C Oscilloscope is a two-channel digital storage oscilloscope that provides accurate real-time signal acquisition and analysis for electronic circuits and systems. It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community. Tektronix TBS1202C Oscilloscopeprovides high-quality signal visualization and analysis with advanced triggering capabilities and a comprehensive set of measurement and analysis tools.
The Tektronix TBS1202C Oscilloscope is designed for quick hands-on learning and easy operation with just the right combination of features and capabilities. Featuring 7-inch WVGA color display with 15 horizontal divisions it shows 50% more signal. With dual window FFT it provides simultaneous time and frequency domain views. The TBS1000C Series Oscilloscope offers several acquisition modes including Sample Mode, Peak Detect Mode & Average Mode for signal analysis. Additionally, its intuitive user interface and compact design make Tektronix TBS1202C Oscilloscope easy to use and transport, making it an excellent choice for on-the-go applications.
Specifications for the Tektronix TBS1202C Oscilloscope Include:
| Bandwidth | 50 MHz |
| Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 20 K points |
