Teledyne LeCroy

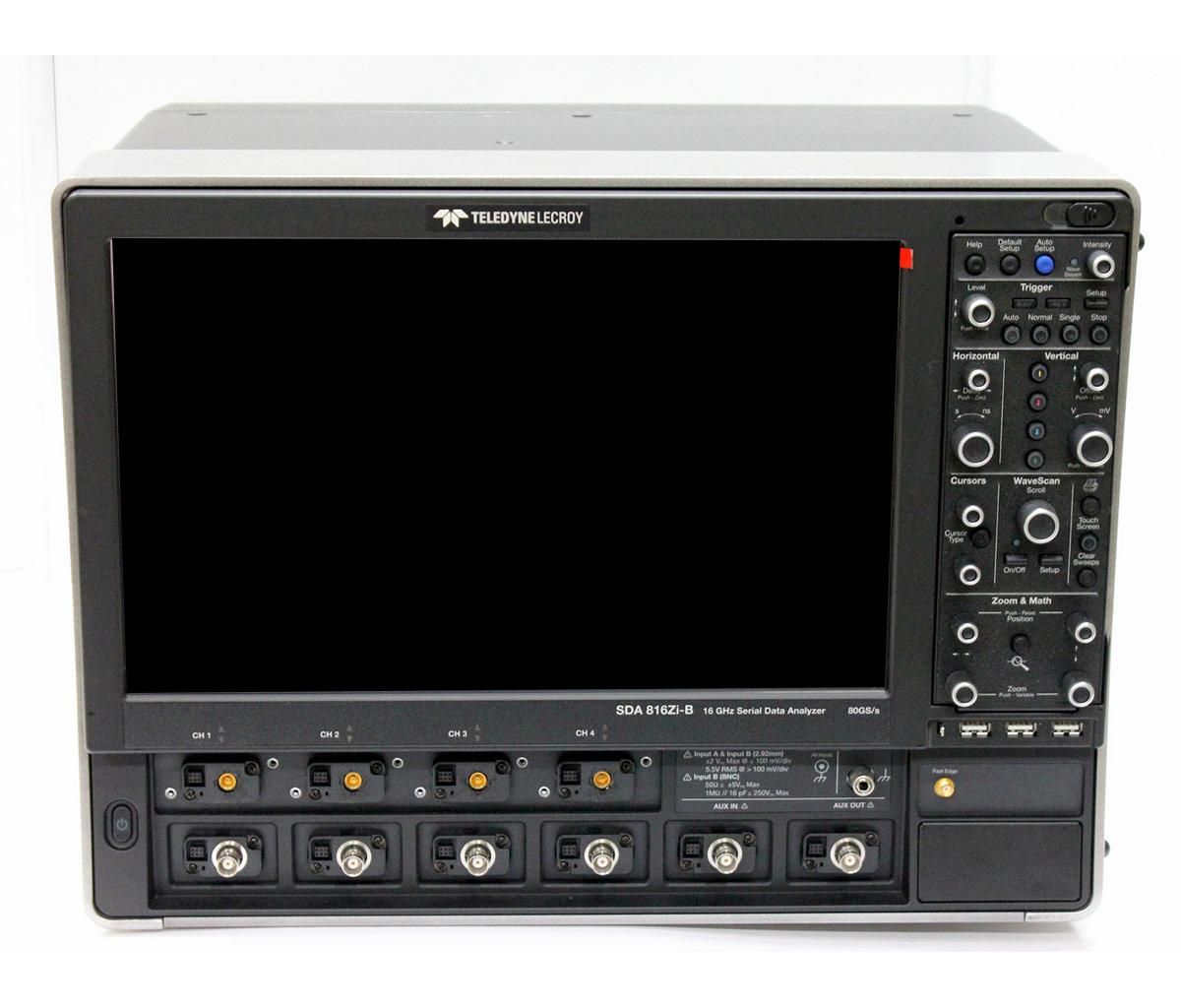

Teledyne LeCroy SDA-816ZI-B
4 Ch 16 GHz Serial Data Analyzer
16 GHz Largeur de bande passante
40 GS/s Taux d'échantillonnage
4 voies Nombre de voies
256 Mpts/voie Longueur de mémoire
8 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Largeur de bande passante | 16 GHz |
| Taux d'échantillonnage | 40 GS/s |
| Nombre de voies | 4 voies |
| Longueur de mémoire | 256 Mpts/voie |
| Résolution verticale | 8 bits |
| Bruit de plancher (RMS) | 1,5 mV typique |
| Impédance d'entrée | 50 Ω |
| Analyse des signaux série | Jusqu'à 16 Gb/s, conforme aux normes PCIe, USB, SATA, DDR |
| Affichage | Écran tactile 15,3 pouces haute résolution |
| Interface de connectivité | USB, Ethernet, GPIB (en option) |
Teledyne LeCroy SDA-816ZI-B Options:
- SDA-816ZI-B - SDA8Zi-STD - 64 Mpts/Ch Standard Memory for SDA 8 Zi-B, Includes 8 GB of RAM
- SDA-816ZI-B - SDA8Zi-L-128 - 128 Mpts/Ch Memory Option for SDA 8 Zi-B
- SDA-816ZI-B - SDA8Zi-VL-256 - 256 Mpts/Ch Memory Option for SDA 8 Zi-B
- SDA-816ZI-B - WM8Zi-500GB-HD - Upgrade from 160 GB Hard Drive to 500 GB Hard Drive
- SDA-816ZI-B - GPIB-4 - GPIB Option for Teledyne LeCroy Oscilloscope, Half-height Card
- SDA-816ZI-B - WM8Zi-8-UPG-16GBRAM - 8 GB to 16 GB CPU RAM Option
- SDA-816ZI-B - WM8Zi-8-UPG-32GBRAM - 8 GB to 32 GB CPU RAM Option
- SDA-816ZI-B - SDA8Zi-UPG-14GBIT-80b-SYMBOL-TD - 80-bit NRZ, 8b/10b, and 64b/66b 14.1 Gbps Serial Trigger upgrade. Also includes 8b/10b and 64b/66b decode.
- SDA-816ZI-B - SDA8Zi-CompleteLinQ - Complete Multi-Lane SDA LinQ Framework, including Eye, Jitter, Noise, Crosstalk Measurements, with EyeDrII and VirtualProbe
- SDA-816ZI-B - SDA8Zi-CrossLinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye, Jitter, Noise and Crosstalk Measurements
- SDA-816ZI-B - SDA8Zi-LinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye and Jitter Measurements
- SDA-816ZI-B - SDA8Zi-Crosstalk - Single-Lane Serial Data Analysis Framework, Eye, Jitter, Noise and Crosstalk Measurements
- SDA-816ZI-B - WM8Zi-PAM4 - PAM4 Signal Analysis
- SDA-816ZI-B - WM8Zi-VIRTUALPROBE - Advanced De-embedding, Emulation and Virtual Probing Toolkit
- SDA-816ZI-B - WM8Zi-EYEDRII - Signal Integrity Toolkit - Channel & Fixture De-embedding/Emulation, Tx/Rx Equalization
- SDA-816ZI-B - WM8Zi-EYEDRII-VP - Bundle - EyeDrII and VirtualProbe Toolkits
- SDA-816ZI-B - WM8Zi-CBL-DE-EMBED - Cable De-embed Option
- SDA-816ZI-B - WM8Zi-VECTORLINQ - VectorLinQ – Flexible vector signal analysis for electrical signals (RF and baseband I-Q)
- SDA-816ZI-B - WM8Zi-OPTICAL-LINQ - Optical-LinQ – Coherent optical modulation analysis
- SDA-816ZI-B - WM8Zi-JITKIT - Clock and Clock-Data Timing Jitter Analysis Package
- SDA-816ZI-B - WM8Zi-SPECTRUM - Spectrum Analyzer Mode
- SDA-816ZI-B - HDA125-18-LBUS - 12.5 GS/s High-speed Digital Analyzer with 18ch QuickLink leadset and LBUS connection
- SDA-816ZI-B - HDA125-09-LBUS - 12.5 GS/s High-speed Digital Analyzer with 9ch QuickLink leadset and LBUS connection
- SDA-816ZI-B - WM8ZI-DDR2-TOOLKIT - DDR2 and LPDDR2 Debug Toolkit
- SDA-816ZI-B - WM8ZI-DDR3-TOOLKIT - DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit
- SDA-816ZI-B - WM8ZI-DDR4-TOOLKIT - DDR4, DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit
- SDA-816ZI-B - WM8ZI-UPG-DDR3-TOOLKIT - DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit Upgrade
- SDA-816ZI-B - WM8ZI-UPG-DDR4-TOOLKIT - DDR4, DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit Upgrade
- SDA-816ZI-B - QPHY-10GBase-KR - QualiPHY Enabled 10GBase-KR Software Option
- SDA-816ZI-B - QPHY-10GBASE-T - QualiPHY Enabled 10GBase-T Software Option
- SDA-816ZI-B - QPHY-BroadR-Reach - QualiPHY Enabled BroadR-Reach Software Option
- SDA-816ZI-B - QPHY-DDR2 - QualiPHY Enabled DDR2 Software Option
- SDA-816ZI-B - QPHY-DDR3 - QualiPHY Enabled DDR3 Software Option
- SDA-816ZI-B - QPHY-DDR4 - QualiPHY Enabled DDR4 Software Option
- SDA-816ZI-B - QPHY-DisplayPort - QualiPHY Enabled DisplayPort Software Option
- SDA-816ZI-B - QPHY-eDP - QualiPHY Enabled Embedded DisplayPort Software Option
- SDA-816ZI-B - QPHY-ENET - QualiPHY Enabled Ethernet 10/100/1000BT Software Option
- SDA-816ZI-B - QPHY-HDMI2 - QualiPHY Enabled HDMI 1.4 and HDMI 2 Software Option
- SDA-816ZI-B - QPHY-LPDDR2 - QualiPHY Enabled LPDDR2 Software Option
- SDA-816ZI-B - QPHY-MIPI-DPHY - QualiPHY Enabled MIPI D-PHY Software Option
- SDA-816ZI-B - QPHY-MIPI-MPHY - QualiPHY Enabled MIPI M-PHY Software Option
- SDA-816ZI-B - QPHY-MOST50 - QualiPHY Enabled MOST50 ePHY Software Option
- SDA-816ZI-B - QPHY-MOST150 - QualiPHY Enabled MOST150 oPHY Software Option
- SDA-816ZI-B - QPHY-PCIe3 - QualiPHY Enabled PCIe 3.0 Software Option
- SDA-816ZI-B - QPHY-PCIe - QualiPHY Enabled PCIe Gen1 Software Option
- SDA-816ZI-B - QPHY-SATA-TSG-RSG - QualiPHY Enabled SATA Software Option
- SDA-816ZI-B - QPHY-SAS2 - QualiPHY Enabled SAS-2 Software Option
- SDA-816ZI-B - QPHY-SAS3 - QualiPHY Enabled SAS-3 Software Option
- SDA-816ZI-B - QPHY-SFI - QualiPHY Enabled SFI Software Option
- SDA-816ZI-B - QPHY-USB - QualiPHY Enabled USB 2.0 Software Option
- SDA-816ZI-B - QPHY-USB3-Tx-Rx - QualiPHY Enabled USB 3.0 Transmitter/Receiver Compliance Software Option
- SDA-816ZI-B - QPHY-USB3.1-Tx-Rx - QualiPHY Enabled USB 3.1 Transmitter/Receiver Compliance Software Option
- SDA-816ZI-B - LSIB-1 - High-speed PCIe Gen1 x4 Digitizer Output
- SDA-816ZI-B - MS-500 - 500 MHz, 2 GS/s, 18 Ch, 50 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-816ZI-B - MS-500-36 - 250 MHz, 1 GS/s, 36 Ch, 25 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-816ZI-B - MS-250 - 250 MHz, 1 GS/s, 18 Ch, 10 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-816ZI-B - WM8Zi-DFP2 - Digital Filter Software Package
- SDA-816ZI-B - WM8Zi-SDM - Serial Data Mask Software Package
- SDA-816ZI-B - WM8Zi-PWR - Power Analysis Option
- SDA-816ZI-B - WM8Zi-EMC - EMC Pulse Parameter Software Package
| Model | SDA-816ZI-B |
|---|
Le Teledyne LeCroy SDA-816Zi-B offre une acquisition haute fidélité de 16 GHz, une validation de protocole multi-voie et une analyse complète des trames, gigue et diaphonie. Avec sa grande longueur d’enregistrement et sa mémoire segmentée, il fournit une vision précise pour les tests avancés de validation et de conformité.
Conçu pour l’intégrité du signal haute performance, cet oscilloscope intègre des tests crosstalk et BER en temps réel avec des packages de conformité entièrement automatisés, idéal pour les systèmes multi-voies complexes.
Testwall peut fournir le Teledyne LeCroy SDA-816Zi-B d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit une instrumentation haute performance avec une fiabilité et une qualité de service incomparables. Veuillez nous contacter directement si vous avez besoin d’une calibration ou d’une réparation du Teledyne LeCroy SDA-816Zi-B.
