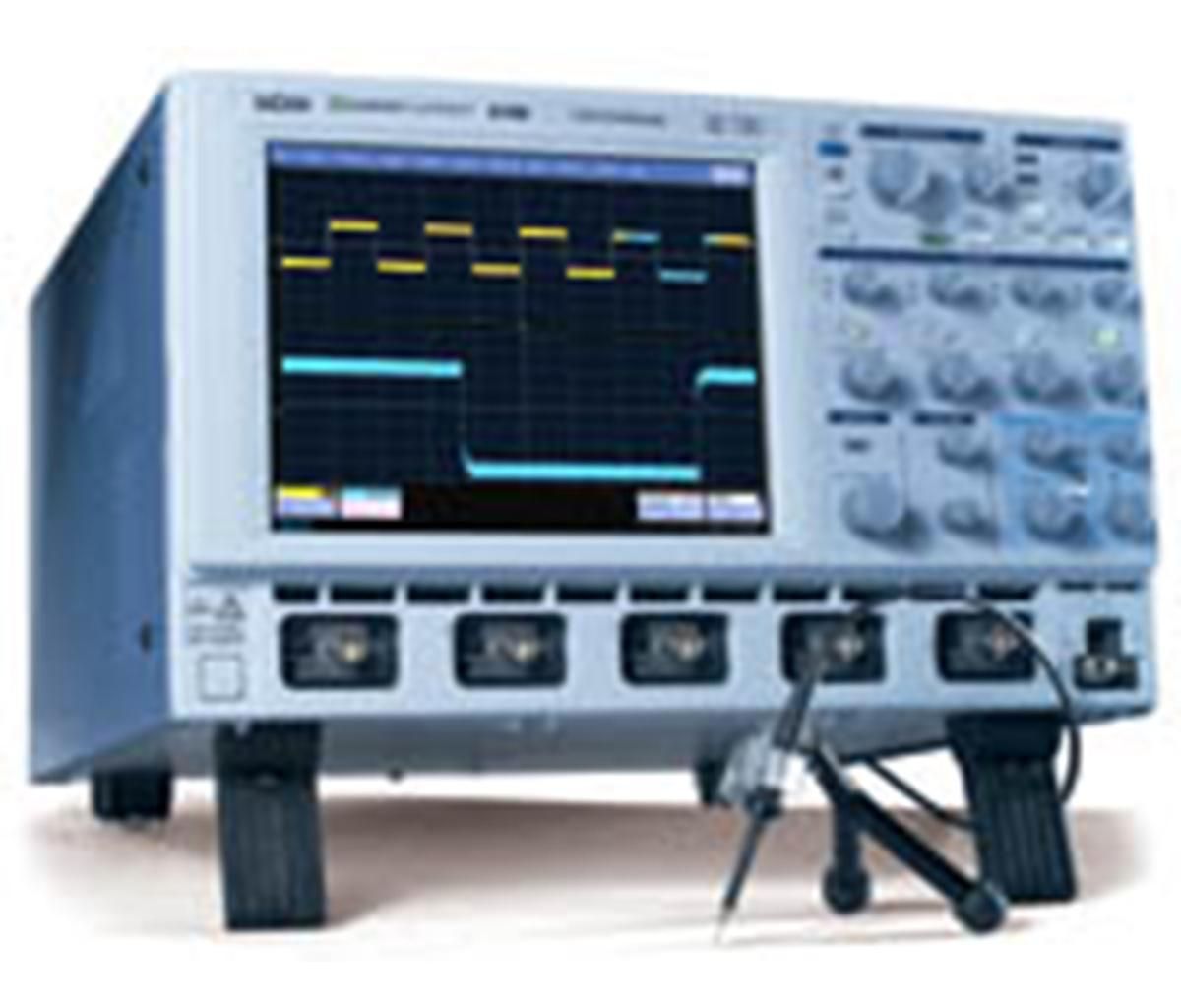

Teledyne LeCroy WR6050
| Attribut | Valeur |
|---|---|
| Bande passante | 500 MHz |
| Nombre de voies | 4 voies analogiques |
| Taux d'échantillonnage | 5 GS/s (en temps réel) |
| Mémoire d'acquisition | jusqu'à 24 Mpts/voie |
| Résolution verticale | 8 bits |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Base de temps | 200 ps/div à 1000 s/div |
| Écran | Écran couleur LCD 10,4 pouces |
| Interfaces de communication | USB, Ethernet (LAN), GPIB (en option) |
| Alimentation électrique | 100 – 240 V CA, 50/60 Hz |
Teledyne LeCroy WR6050 Options:
- WR6050 - -S - S Memory Option (4M/2M points per channel)
- WR6050 - -M - M Memory Option (8M/4M points per channel)
- WR6050 - -L - L Memory Option (16M/8M points per channel)
- WR6050 - -VL - VL Memory Option (24M/12M points per channel)
- WR6050 - XMAP - Master Analysis Package (includes XMATH, XDEV, and JTA2)
- WR6050 - XMATH - Advanced Math Package (comprehensive WaveShape Analysis tools)
- WR6050 - XDEV - Advanced Customization Package (VBScript, Excel, MATLAB, Mathcad support)
- WR6050 - XWAV - Intermediate Math Package (value-priced version of XMATH)
- WR6050 - JTA2 - Jitter and Timing Analysis Package
- WR6050 - XVAP - Value Analysis Package (includes XWAV and JTA2)
- WR6050 - DDM2 - Disk Drive Measurement Package
- WR6050 - DFP2 - Digital Filter Package 2
- WR6050 - PMA2 - PowerMeasure Analysis Package
| Model | WR6050 |
|---|
The Teledyne LeCroy WR6050 is a 500 MHz, 4-channel digital oscilloscope with 2.5 GS/s real-time sampling. Featuring a high-resolution color screen with waveform overlay, zoom and advanced math functions, it delivers precise analysis and clear visualization. Its compact benchtop design ensures reliability and efficient operation for a wide range of applications.
This versatile oscilloscope is ideal for both development and troubleshooting tasks, offering robust performance and ease of use across general-purpose electronic measurements.
Testwall can supply the used Teledyne LeCroy WR6050, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy WR6050.
