TENNEY C20RC
TENNEY C20RC Options:
- C20RC - RS232 - RS 232 communications
- C20RC - RS485 - RS485 communications
- C20RC - H2O-5GAL - 5-gallon water reservoir (Humidity Model Only)
- C20RC - H2O-RECIRC - Recirculating system for humidity water (Humidity Model Only)
- C20RC - DEMIN - Water demineralizer (Humidity Model Only)
- C20RC - EXT-DRYER - External dryer for obtaining humidity levels as low as 5% (Humidity Model Only)
- C20RC - ADD-PORTS - Additional ports
- C20RC - SHELVING - Shelving, adjustable and removable
- C20RC - CO2-BOOST - Automatic CO2 cooling boost system
- C20RC - LN2-BOOST - Automatic LN2 cooling boost system
- C20RC - HEAT-BOOST - Boost heating system
- C20RC - GN2-PURGE - GN2 purge system
- C20RC - REC-INST - Recording instruments
- C20RC - NIST-CAL - NIST Calibration
- C20RC - ISO17025-CAL - Calibration services accredited to the ISO 17025 standard
| Model | C20RC |
|---|

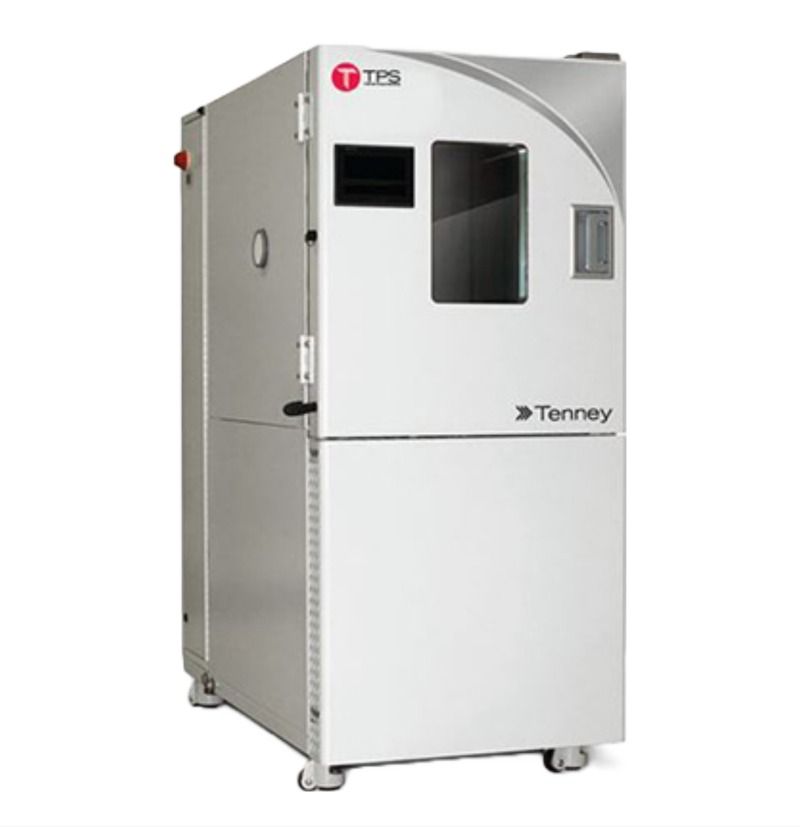

TENNEY C20RC Temperature and Humidity Chamber
The Tenney C20RC Temperature and Humidity Chamber is equipped with the innovative Smart 1.2TM controller, it offers state-of-the-art control capabilities and advanced communication options, including Ethernet, RS485, and a USB port for seamless data transfer and monitoring. The test chamber also includes a heated viewing glass window, chamber light, two 3" cable ports, solid-state humidity sensor, and platinum RTD temperature sensor to accommodate a wide range of testing requirements.
The Tenney C20RC Temperature and Humidity Chamber is equipped with heavy-duty leveling casters that enable easy mobility, while the use of Nichrome wire air heaters, semi-hermetic reciprocating compressors, and thermal expansion valves ensure optimal temperature regulation and efficiency. Additionally, the Tenney C20RC is equipped with FM-approved safety OTP, backup safety thermal cutoff, and a main electrical disconnect LOTO, ensuring the highest levels of safety for both users and equipment. With a chamber vent port and one shelf provided as standard, the Tenney C20RC test chamber offers an all-encompassing solution for comprehensive and reliable environmental cycling testing.
Specifications for the TENNEY C20RC Temperature and Humidity Chamber Include:
| Temperature Range | -68 °C to 180 °C (-73 ºC to 180 ºC option) |
| Interior Volume | 20 ft ³ |
| Interior Dimensions | 30" x 32" x 36" |
| Humidity Range | 20% to 95% RH |
