TENNEY C30RC2.0
TENNEY C30RC2.0 Options:
- C30RC2.0 - OPT - RS 232 or RS485 communications
- C30RC2.0 - OPT - 5-gallon water reservoir (Humidity Model Only)
- C30RC2.0 - OPT - Recirculating system for humidity water (Humidity Model Only)
- C30RC2.0 - OPT - Water demineralizer (Humidity Model Only)
- C30RC2.0 - OPT - External dryer for obtaining humidity levels as low as 5% (Humidity Model Only)
- C30RC2.0 - OPT - Additional ports
- C30RC2.0 - OPT - Shelving, adjustable and removable
- C30RC2.0 - OPT - Automatic CO2 or LN2 cooling boost system
- C30RC2.0 - OPT - Boost heating system
- C30RC2.0 - OPT - GN2 purge system
- C30RC2.0 - OPT - Recording instruments
- C30RC2.0 - OPT - NIST Calibration
- C30RC2.0 - OPT - Calibration services accredited to the ISO 17025 standard
- C30RC2.0 - OPT - Additional engineered to order custom configurations
| Model | C30RC2.0 |
|---|

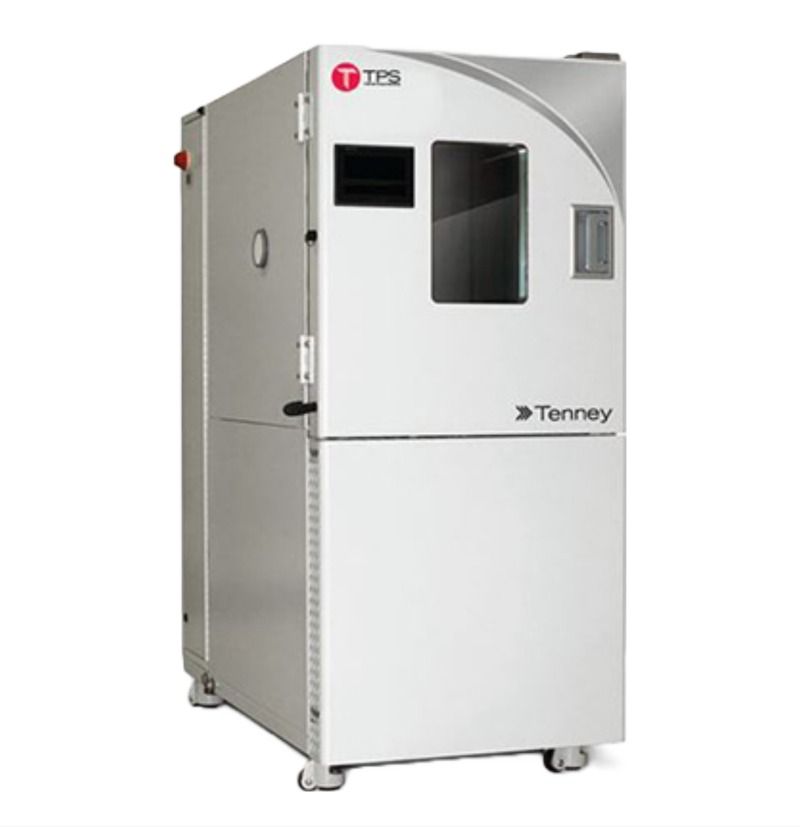

TENNEY C30RC2.0 Temperature and Humidity Chamber
The Tenney C30RC2.0 Temperature and Humidity Chamber is equipped with the innovative Smart 1.2TM controller, it offers state-of-the-art control capabilities and advanced communication options, including Ethernet, RS485, and a USB port for seamless data transfer and monitoring. The test chamber also includes a heated viewing glass window, chamber light, two 3" cable ports, solid-state humidity sensor, and platinum RTD temperature sensor to accommodate a wide range of testing requirements.
The Tenney C30RC2.0 Temperature and Humidity Chamber is equipped with heavy-duty leveling casters that enable easy mobility, while the use of Nichrome wire air heaters, semi-hermetic reciprocating compressors, and thermal expansion valves ensure optimal temperature regulation and efficiency. Additionally, the Tenney C30RC2.0 is equipped with FM-approved safety OTP, backup safety thermal cutoff, and a main electrical disconnect LOTO, ensuring the highest levels of safety for both users and equipment. With a chamber vent port and one shelf provided as standard, the Tenney C30RC2.0 test chamber offers an all-encompassing solution for comprehensive and reliable environmental cycling testing.
Specifications for the TENNEY C30RC2.0 Temperature and Humidity Chamber Include:
| Temperature Range | -68 °C to 180 °C (-73 ºC to 180 ºC option) |
| Interior Volume | 30 ft ³ |
| Interior Dimensions | 36" x 40" x 36" |
| Humidity Range | 20% to 95% RH |
