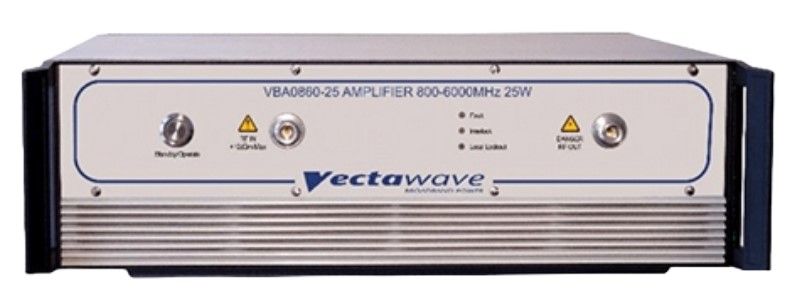

Vectawave VBA0860-25
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 800 MHz – 6000 MHz |
| Puissance de sortie nominale | 25 Watts |
| Gain typique | 45 dB |
| Puissance d'entrée maximale | 0 dBm |
| Impédance d'entrée/sortie | 50 Ohms |
| Connecteurs RF | SMA femelle (entrée), N femelle (sortie) |
| Tension d'alimentation | +28 VDC |
| Figure de bruit typique | 8 dB |
| Point de compression à 1 dB (P1dB) | +44 dBm |
| Température de fonctionnement | 0 °C à +50 °C |
Vectawave VBA0860-25 Options:
- VBA0860-25 - - Rack Mountable case style
- VBA0860-25 - - Benchtop case style with rear panel connectors
- VBA0860-25 - - Benchtop case style with front panel connectors
| Model | VBA0860-25 |
|---|
VECTAWAVE VBA0860-25 High Power Amplifier
The Vectawave VBA0860-25 High Power Amplifier spaning frequency of 800 to 6000 MHz, is tailored for EMC applications. The amplifier is based on high performance extra wideband GaN output stages and utilises Vectawave proprietary Quadrature Hybrid combining techniques, minimising loss for a more efficient solution. This amplifier utilizes robust push-pull MOSFET technology to ensure exceptional even order harmonic suppression.
The Vectawave VBA0860-25 Operates in class A, it offers minimal distortion and a remarkable tolerance for 100% mismatch, rendering fold-back protection unnecessary. The amplifier can be controlled remotely via the Ethernet, USB and GPIB interfaces. The digital interface system manages enabling and disabling the amplifier, monitoring power supply health, communicating with the control computer and implementing electrical interlocks. These attributes make the Vectawave VBA0860-25 an excellent choice for the most demanding transducer needs, emphasizing its robustness and adaptability for general linear power requirements.
Specifications for the VECTAWAVE VBA0860-25 High Power Amplifier Include:
| Frequency Range | 800 to 6000 MHz |
| Rated Output Power | 25 W |
| Output Power Harmonics | Better than -20dBc (1-6GHz) / Better than -12dBc (0.8-1GHz) @ Rated Linear Power |
| Output Impedence | 50 Ohms |
