Vectawave
Vectawave VBA250-400
High Power Amplifier, 10kHz - 250MHz, 400W
250 MHz – 400 MHz Plage de fréquences
250 W CW Puissance de sortie
≥ 50 dB Gain
0 dBm (typique) Puissance d'entrée maximale
50 Ω Impédance d'entrée/sortie
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 250 MHz – 400 MHz |
| Puissance de sortie | 250 W CW |
| Gain | ≥ 50 dB |
| Puissance d'entrée maximale | 0 dBm (typique) |
| Impédance d'entrée/sortie | 50 Ω |
| Harmoniques | ≤ -20 dBc |
| Alimentation électrique | 220 – 240 V CA, 50/60 Hz |
| Connecteurs RF | Entrée : N femelle / Sortie : N femelle |
| Refroidissement | Refroidissement par air forcé |
| Format | Rack 19 pouces |
Vectawave VBA250-400 Options:
- VBA250-400 - Rack mount with front panel connectors - Case Style Option: Rack mount with front panel connectors
- VBA250-400 - Rack mount with rear panel connectors - Case Style Option: Rack mount with rear panel connectors
| Model | VBA250-400 |
|---|

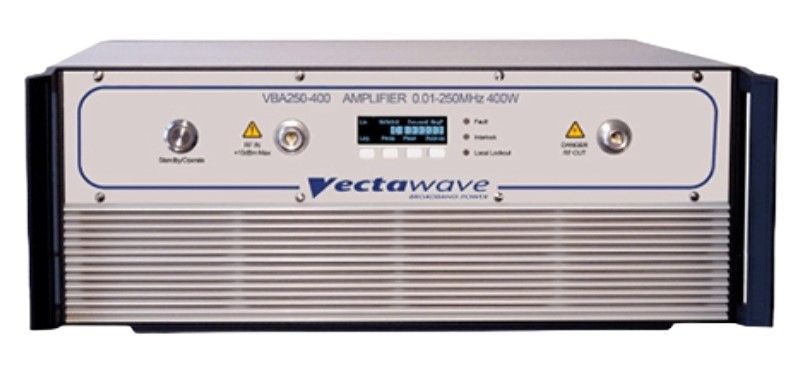

VECTAWAVE VBA250-400 High Power Amplifier
The Vectawave VBA250-400 High Power Amplifier spaning frequency of 10kHz to 250MHz, is tailored for EMC applications. This amplifier utilizes robust push-pull MOSFET technology to ensure exceptional even order harmonic suppression. Operating in class A, it offers minimal distortion and a remarkable tolerance for 100% mismatch, rendering fold-back protection unnecessary. These attributes make the Vectawave VBA250-400 an excellent choice for the most demanding transducer needs, emphasizing its robustness and adaptability for general linear power requirements.
Specifications for the VECTAWAVE VBA250-400 High Power Amplifier Include:
| Frequency Range | 10 kHz to 250 MHz |
| Rated Output Power | 400 W Min (10kHz - 80MHz) / 360 W Min (80-250MHz) |
| Output Power Harmonics | Better than -20dBc @ 250W |
| Output Impedence | 50 Ohms |
