Fujikura

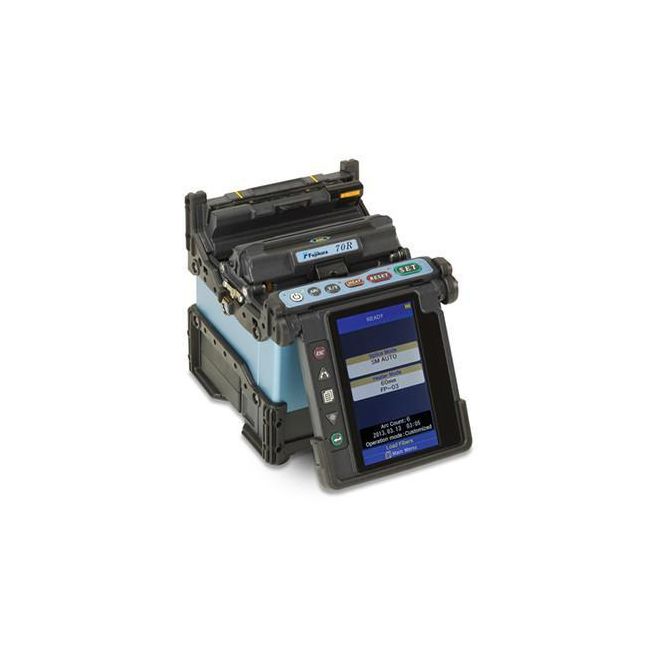

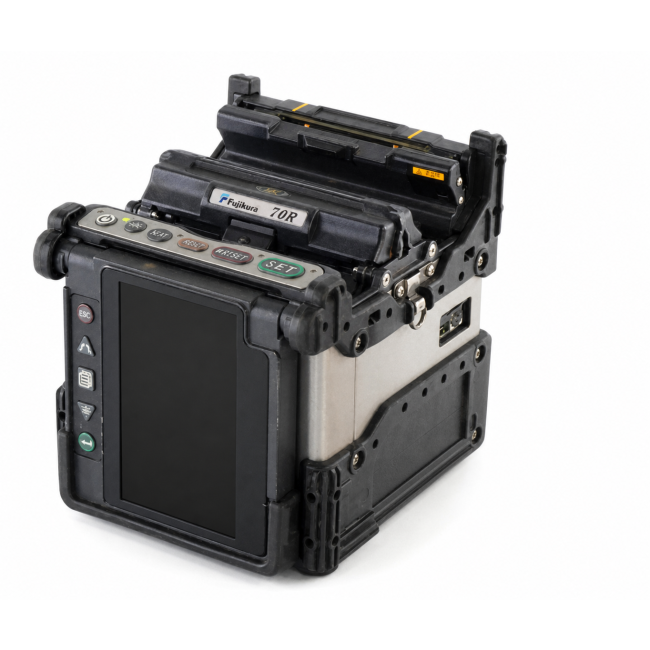

Fujikura 70R Fusion Splicer
Fusion Splicer
9 seconds Splicing Time
15 seconds Heating Time
SM, MM, DS, NZDS, and bend-insensitive fibers Applicable Fiber Types
0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) Splice Loss (Typical)
Approximately 200 splice and heat cycles per charge Battery Capacity
| Attribute | Value |
|---|---|
| Splicing Time | 9 seconds |
| Heating Time | 15 seconds |
| Applicable Fiber Types | SM, MM, DS, NZDS, and bend-insensitive fibers |
| Splice Loss (Typical) | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Battery Capacity | Approximately 200 splice and heat cycles per charge |
| Display | 5.0-inch color LCD touchscreen monitor |
| Fiber Alignment Method | Core alignment using LID (Local Injection and Detection) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Weight | Approximately 2.1 kg (4.6 lbs) including battery |
| Ingress Protection Rating | IP52 (dust and drip resistant) |
| Model | 70R |
|---|
