Fujikura

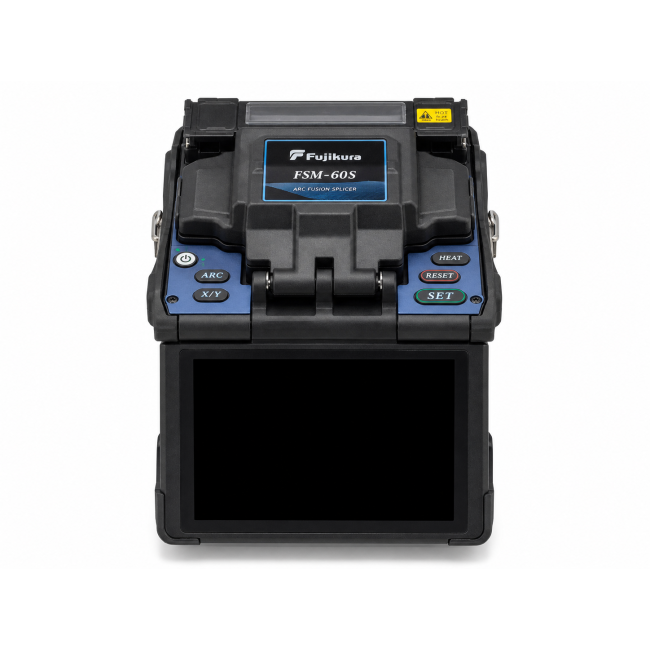

Fujikura FSM-60S
Fusion Splicer SM & MM
SM, MM, DS, NZDS, EDF, and other specialty fibers Applicable Fiber Types
9 seconds (standard SM fiber) Splicing Time
15 seconds (with standard 60mm sleeve) Heating Time
0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS) Typical Splice Loss
80 to 150 µm Fiber Clad Diameter
| Attribute | Value |
|---|---|
| Applicable Fiber Types | SM, MM, DS, NZDS, EDF, and other specialty fibers |
| Splicing Time | 9 seconds (standard SM fiber) |
| Heating Time | 15 seconds (with standard 60mm sleeve) |
| Typical Splice Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS) |
| Fiber Clad Diameter | 80 to 150 µm |
| Fiber Coating Diameter | 100 to 1000 µm |
| Cleave Length | 5 to 16 mm |
| Battery Capacity | Approximately 200 splice and heat cycles per charge |
| Display | 5.0-inch color LCD monitor |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
Fujikura FSM-60S Options:
- FSM-60S - FH-60-250 - Fibre Holder for 250µm coating
- FSM-60S - FH-60-900 - Fibre Holder for 900µm coating
- FSM-60S - CLAMP-S60A - Sheath Clamp for coating diameter up to 250µm, 8mm to 16mm cleave / for coating diameter of over 250µm, 16mm cleave
- FSM-60S - CLAMP-S60B - Sheath Clamp for coating diameter up to 1000µm, 8mm to 16mm cleave
- FSM-60S - CLAMP-S60C - Sheath Clamp for 900µm loose tube fibre
- FSM-60S - BTR-08 - Battery Pack
- FSM-60S - DCC-14 - Battery Charge Cord for connecting BTR-08 and ADC-13
- FSM-60S - DCC-12 - DC Power Cord for ADC-13, cigarette lighter socket type
- FSM-60S - DCC-13 - DC Power Cord for ADC-13, alligator clamp type
- FSM-60S - MGS-06 - Magnifier with bracket
- FSM-60S - ELCT2-20A - Electrodes
- FSM-60S - WPM-08 - Wind Protector Mirror
| Model | FSM-60S |
|---|
? Multi Mode and Single Mode
? Suitable for use with SM (ITU-T G.652), DS (ITU-T G.653), NZDS (ITU-T G.655) and MM (ITU-T G.651) fibres and other single mode fibers including ITU-T G.657 fibers.
? Core to core alignment by PAS?Profile Alignment System) technology.
? Environmental resistant features.
? Arc calibration-free system.
? 4.1" TFT color LCD monitor.
? Dual directional operation system.
? Long life battery.
? Fiber holder option.
? Software upgrade via Internet.
? Supplied with CT-30A Precision Cleaver
