Fujikura

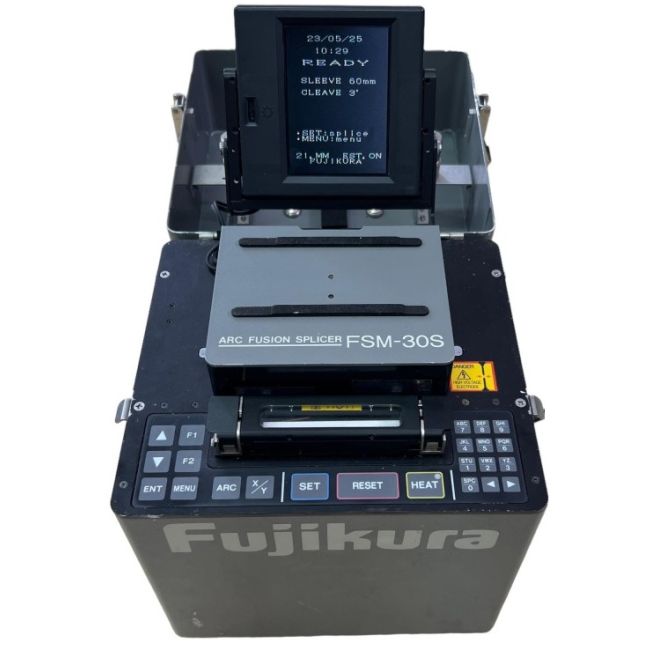

Fujikura FSM30S
Single Mode Fusion Splicer
Single-mode, Multimode, and Special fibers (SM, MM, DS, NZDS) Fiber Type Compatibility
9 seconds (standard single-mode fiber) Splicing Time
35 seconds (with standard protection sleeve) Heating Time
0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) Typical Splice Loss
Greater than 60 dB Return Loss
| Attribute | Value |
|---|---|
| Fiber Type Compatibility | Single-mode, Multimode, and Special fibers (SM, MM, DS, NZDS) |
| Splicing Time | 9 seconds (standard single-mode fiber) |
| Heating Time | 35 seconds (with standard protection sleeve) |
| Typical Splice Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Return Loss | Greater than 60 dB |
| Fiber Clad Diameter | 80 to 150 µm |
| Battery Capacity | Approximately 200 splice and heat cycles per charge |
| Display | 5.0-inch color LCD monitor with touch panel |
| Electrode Life | Approximately 5,000 arc discharges |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Model | FSM30S |
|---|
Fibre Splicing Capabilities Single Fibre: SM @ 1310 nm, DS @ 1550 nm, CS @ 1550 nm, MM, Erbium Doped fibre
Splice Loss Typical 0.02dB with SM fiber, 0.01dB with MM, and 0.05dB with dispersion shifted
Return Loss 60dB
