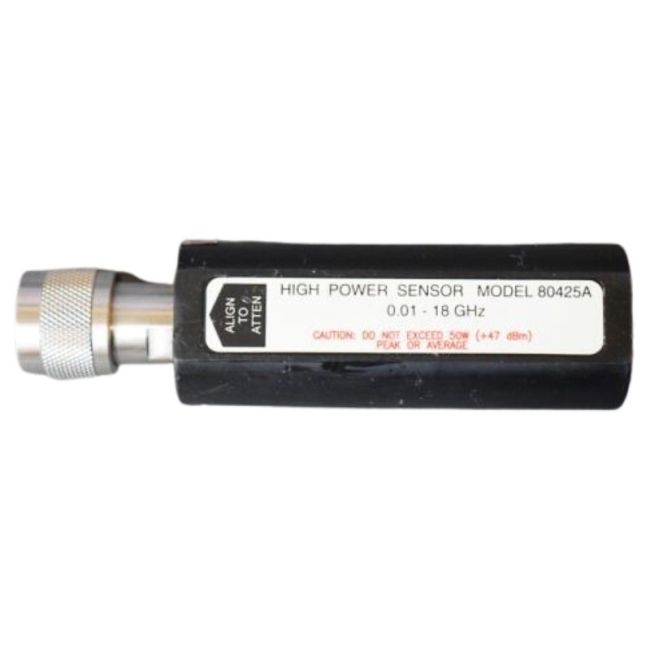

Gigatronics 80425A Power Sensor, 10 MHz - 18 GHz, +47 dBm to -34 dBm, 50W
Power Sensor, 10 MHz - 18 GHz, +47 dBm to -34 dBm, 50W modulation (40 kHz)
10 MHz - 18 GHz Frequency Range
-34 dBm to +47 dBm Power Range
50W Maximum Power (Watts)
Type-N Male Connector Type
50 Ohm Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz - 18 GHz |
| Power Range | -34 dBm to +47 dBm |
| Maximum Power (Watts) | 50W |
| Connector Type | Type-N Male |
| Impedance | 50 Ohm |
| SWR (Maximum) | 1.15 |
| Sensor Type | Thermocouple |
| Compatible Instruments | Gigatronics 8540C, 8541C, 8542C Series Power Meters |
| Operating Temperature Range | 0°C to +55°C |
| Calibration Factor | Stored in sensor EEPROM for automatic calibration |
Gigatronics 80425A Power Sensor, 10 MHz - 18 GHz, +47 dBm to -34 dBm, 50W Options:
- 8651A/8652A - 01 - Rack mount kit
- 8651A - 03 - Rear Panel Sensor and Calibrator Connections
- 8652A - 04 - Rear Panel Sensor and Calibrator Connections
- 8651A/8652A - 05 - Soft Carry Case
- 8651A/8652A - 07 - Side Mounted Carrying Handle
- 8651A/8652A - 08 - Transit Case (Includes Soft Carry Case)
- 8651A/8652A - 09 - Dual Rack Mount Kit (with assembly instructions)
- 8651A/8652A - 10 - Dual Rack Mount Kit (factory assembled)
- 8651A/8652A - 12 - 1 GHz, 50 MHz Switchable Calibrator
- 8651A - 13 - Rear Panel Input Connector
- 8652A - 14 - Rear Panel Input Connectors
| Model | 80425A |
|---|
The Gigatronics 80425A Power Sensor has a frequency range of 10 MHz to 18 GHz, Maxium power of +47 dBm (50W), Power linearity of -24 to + 10 dBm: ±0.00dB and -10 to +30 dBm: ±0.05 dB/10dB (at Frequency >8GHz). Connector type N(m).
