Gigatronics 80621A
Power Sensor, 10 MHz - 18 GHz, -47 to +37 dBm
10 MHz to 26.5 GHz Frequency Range
-67 dBm to +20 dBm Power Range
±0.5 dB Power Accuracy
87 dB Dynamic Range
2.4 mm (male) Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Power Range | -67 dBm to +20 dBm |
| Power Accuracy | ±0.5 dB |
| Dynamic Range | 87 dB |
| Connector Type | 2.4 mm (male) |
| VSWR | 1.15:1 maximum |
| Measurement Speed | Up to 1600 readings per second |
| Interface | GPIB (IEEE-488) |
| Operating Temperature | 0°C to 55°C |
| Calibration Factor | Stored in sensor EEPROM |
Gigatronics 80621A Options:
- 80621A - 01 - Rack mount kit
- 80621A - 03 - 8651A Rear Panel Sensor and Calibrator Connections
- 80621A - 04 - 8652A Rear Panel Sensor and Calibrator Connections
- 80621A - 05 - Soft Carry Case
- 80621A - 07 - Side Mounted Carrying Handle
- 80621A - 08 - Transit Case, (Includes Soft Carry Case)
- 80621A - 09 - Dual Rack Mount Kit (with assembly instructions)
- 80621A - 10 - Dual Rack Mount Kit (factory assembled)
- 80621A - 12 - 1 GHz, 50 MHz Switchable Calibrator
- 80621A - 13 - 8651A Rear Panel Input Connector
- 80621A - 14 - 8652A Rear Panel Input Connectors
| Model | 80621A |
|---|

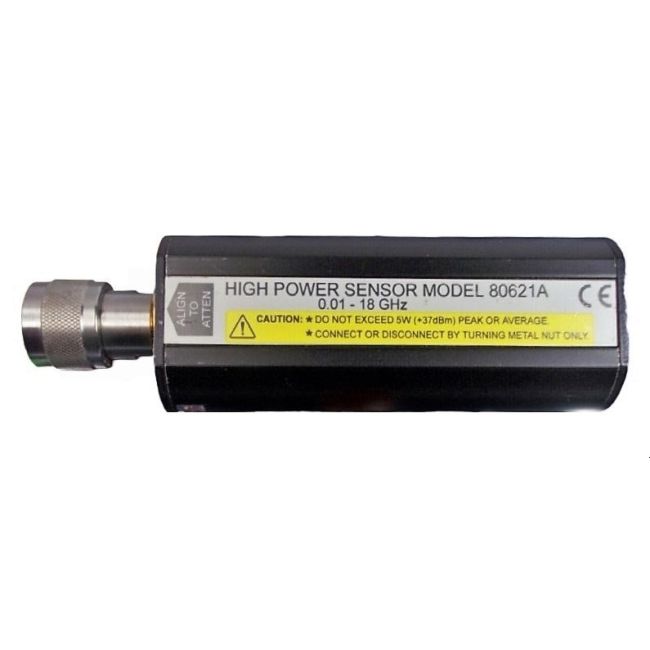

Gigatronics 80621A Power Sensor, 10 MHz - 18 GHz, -47 to +37 dBm
- Minimum Frequency 10 MHz
- Maximum Frequency 18 GHz
- Minimum Power (dB) -47 dBm
- Maximum Power (dB) 37 dBm
- Maximum Power (W) 5 Watts
- Minimum Power Linearity Range -47 dB
- Minimum Power Linearity Accuracy 0 dB
- Maximum Power Linearity Range 37 dB
- Maximum Power Linearity Accuracy 0.2 dB
- V/SWR, First Range 1.20: 0.01 to 6GHz
- V/SWR, Second Range 1.25: 6 to 12.4GHz
- V/SWR, Third Range 1.35: 12.4 to 18GHz
