Keysight (Agilent)

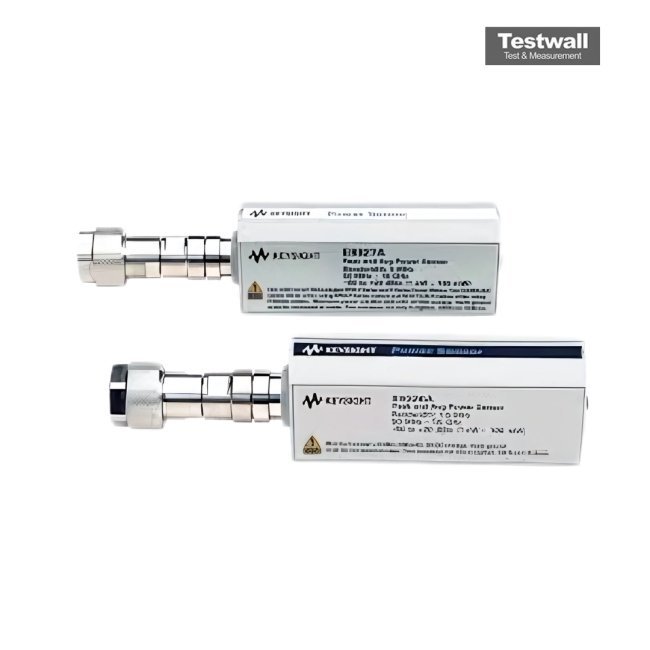

Keysight (Agilent) E9326A
50 MHz - 18 GHz E-Series Peak & Average Power Sensor
peak and average (diode) Sensor Type
50 MHz to 18 GHz Frequency Range
1.5 MHz Video Bandwidth
0.3 µs (VBW off) Rise Time
Type-N male Connector
| Attribute | Value |
|---|---|
| Sensor Type | peak and average (diode) |
| Frequency Range | 50 MHz to 18 GHz |
| Video Bandwidth | 1.5 MHz |
| Rise Time | 0.3 µs (VBW off) |
| Connector | Type-N male |
| Power Range | -60 to +20 dBm (average only mode), -45 to +20 dBm (normal mode) |
| Maximum Power | +23 dBm average, +30 dBm peak (<10 µs) |
| SWR | 1.12 max. at 50 MHz to 2 GHz, 1.18 max. at 2 to 12 GHz, 1.21 max. at 12 to 16 GHz, 1.27 max. at 16 to 18 GHz |
| Compatible Meters | EPM-P series E4416A/E4417A; P-series N1911A/N1912A; EPM series N1913A/N1914A, E4418B/E4419B (average only) |
| Dimensions | 38 × 30 × 150 mm |
| Weight | 0.2 kg |
Compatible power meters
Keysight Technologies E9326A Options:
- E9326A - A6J - Supplies ANSI/NCSL Z540-1-1994 test data including measurement uncertainties
- E9326A - 0B1 - Add manual set
The Keysight (Agilent) E9326A Power Sensor offers 1.5 MHz video bandwidth, enabling high-performance analysis in Bluetooth® and cdmaOne systems. It supports rapid data acquisition with up to 1000 corrected readings per second via GPIB and features a wide dynamic range.
Equipped with EEPROM-stored correction data and a precision type-N connector, it is fully compatible with EPM-P and P-Series power meters for accurate and reliable measurements.
Testwall can supply the used Keysight (Agilent) E9326A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E9326A.
