Glassman
Glassman FX20P15
300W 20V 15A DC Power Supply
20 kV Output Voltage
15 mA Output Current
300 W Output Power
Positive Output Polarity
90–264 VAC, 47–63 Hz Input Voltage
| Attribute | Value |
|---|---|
| Output Voltage | 20 kV |
| Output Current | 15 mA |
| Output Power | 300 W |
| Output Polarity | Positive |
| Input Voltage | 90–264 VAC, 47–63 Hz |
| Voltage Regulation (Line/Load) | 0.005% of maximum output |
| Current Regulation (Line/Load) | 0.01% of maximum output |
| Ripple and Noise | 0.01% RMS, 0.05% peak-to-peak of maximum output voltage |
| Operating Temperature | 0°C to 50°C |
| Interface / Control | Analog programming and monitoring via 0–10 V reference signals |
Glassman FX20P15 Options:
- FX20P15 - 100 - 90 to 110VRMS input, 48-400Hz. NEMA 5-15 Plug.
- FX20P15 - 200 - 180 to 220VRMS, 48-63Hz, NEMA 6-15 plug. Derate output current by 10% when combined with PFC option.
- FX20P15 - 220 - 198 to 264VRMS input, 48-400Hz. NEMA 6-15 Plug.
- FX20P15 - PFC - Power Factor Corrected. AC Input line rated for 198 to 264VAC, 48-63Hz, 400VA maximum. Active correction circuitry achieves an AC input line current harmonic content well below the maximum specified in EN61000-3-2.
- FX20P15 - NC - Blank front panel, power switch only.
- FX20P15 - 5VC - 0-5V voltage and current program/monitor.
- FX20P15 - CT - Current trip. Power supply trips off when the load current reaches the programmed level. This option has a rear panel switch that selects either "trip" operation or current limiting.
- FX20P15 - ZR - Zero start interlock. Voltage control, local or remote, must be at zero before HV will enable.
- FX20P15 - SS - Slow start ramp. Specify standard times of 1, 2, 3, 5, 10, 15, 20, or 30 s +/-20%.
- FX20P15 - HVS - High voltage status indicator. Open drain with 5k pullup to +15V. High signal = HV on.
- FX20P15 - ARC - Arc count and quench as described in the specifications for 1-6 kV models.
- FX20P15 - G09 - RS-232 control and monitor.
| Model | FX20P15 |
|---|

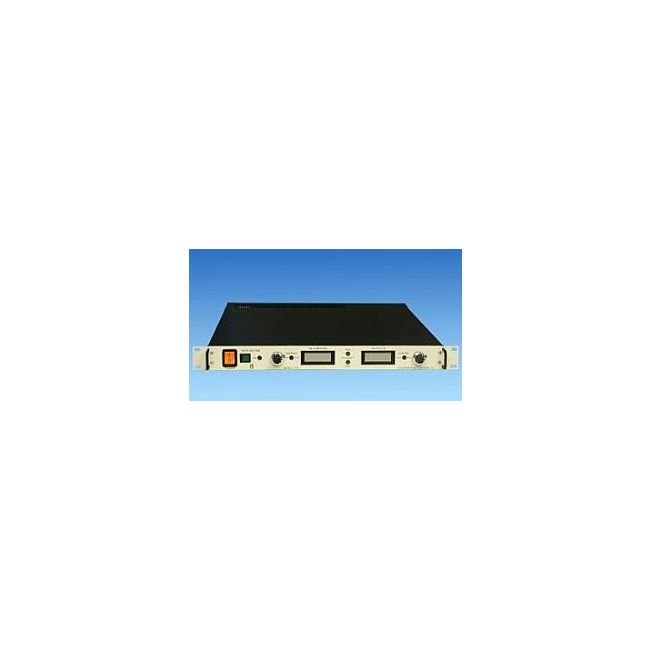

The Glassman FX20P15 is a 300W, 20V, 15ADC Power Supply. The FX Series are sophisticated, 300 Watt, High Voltage Power supplies in a small and lightweight package. They are air insulated, fast response units with tight regulation.
