Hipotronics HD125
| Attribute | Value |
|---|---|
| Output Voltage | 125 kV DC |
| Output Current | 5 mA |
| Power Rating | 625 W |
| Voltage Regulation | ±1% of full scale |
| Ripple | Less than 3% peak-to-peak at full load |
| Test Modes | Dielectric Withstand, Leakage Current, Insulation Resistance |
| Display | Digital metering for voltage and current |
| Safety Features | Automatic discharge, overcurrent protection, remote interlock |
| Input Power | 115/230 V AC, 50/60 Hz, single phase |
| Applicable Standards | IEEE, ASTM, IEC high voltage test standards |
Hipotronics HD125 Options:
- HD125 - A - 120V/60Hz input
- HD125 - B - 230V/50Hz input
| Model | HD125 |
|---|

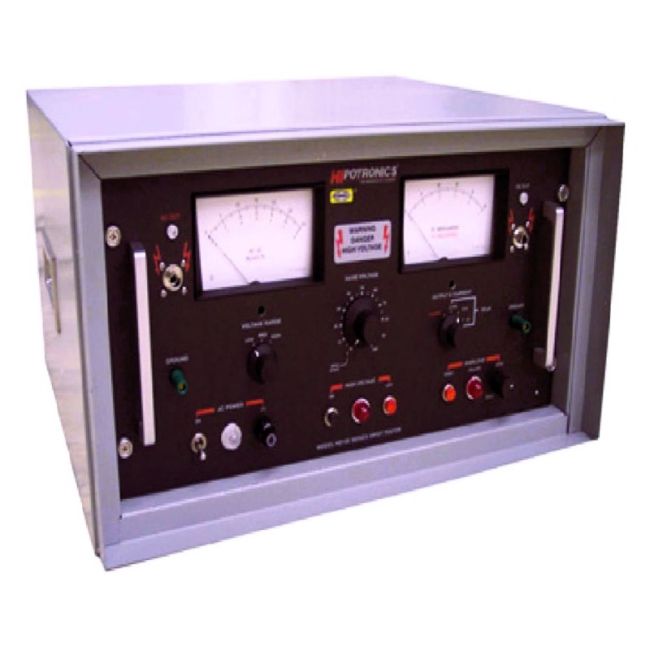

HIPOTRONICS HD125 AC/DC Benchtop HiPot Tester
The Hipotronics HD125 AC/DC Benchtop Hipot is a reliable and user-friendly instrument designed for efficient production testing of various electrical units, systems, and components. This hipot tester offers the convenience of a continuously adjustable test voltage, eliminating the need for separate AC and DC units. The HD125 ensures accurate voltage measurements under varying loads, meeting industry standards such as UL, CSA, VDE, IEC, and MIL for dielectric withstand testing.
The Hipotronics HD125 includes features like a shielded output cable, adjustable overload protection, and audible/visual alarms for clear indication of overloads, this hipot provides a comprehensive testing solution. Additionally, the HD125 offers a zero start interlock and shorting solenoid for safety. The dual functionality and automatic grounding makes it a cost-effective choice, suitable for a wide range of applications, including testing capacitors, transformers, wire and cable, coils, connectors, medical devices, and appliances.
Specifications for the HIPOTRONICS HD125 AC/DC Benchtop HiPot Tester Include:
| AC Range | 0 - 10 kV |
| DC Range | 0 -25 kV |
| Voltage Meter | 0 -5/10/25kV |
| Cur Meter | 0-50/500/5000 µA DC, 0-5mA AC |
