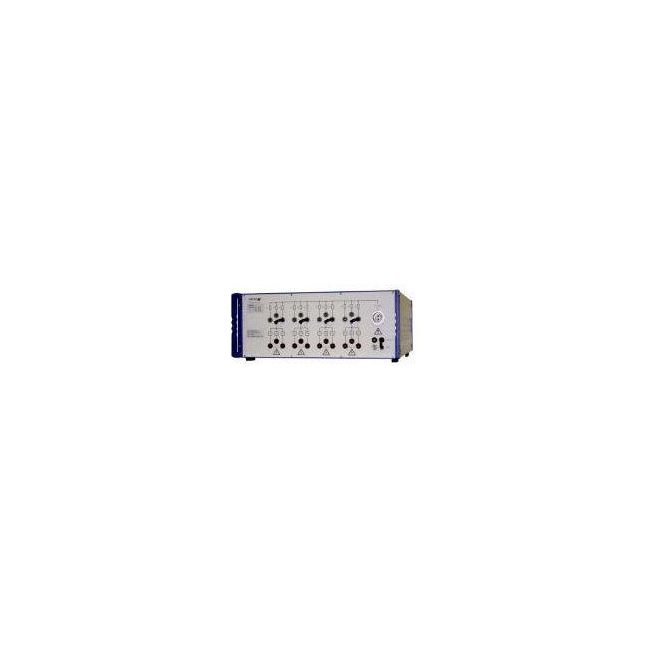

Haefely PCD121
| Attribute | Value |
|---|---|
| Application | Partial Discharge Coupling Device for Power Cables and Accessories |
| Capacitance | 1 nF |
| Maximum Voltage | 12 kV (RMS) |
| Frequency Range | 10 kHz – 500 kHz |
| Impedance | 50 Ω |
| Connector Type | BNC Output Connector |
| Standard Compliance | IEC 60270 |
| Operating Temperature | -10°C to +50°C |
| Housing Material | Aluminum Enclosure |
| Measurement Sensitivity | High Sensitivity Partial Discharge Detection Down to 1 pC |
| Model | PCD121 |
|---|
The Haefely PCD121 is a multi-line coupling/decoupling network designed for EFT/Burst and surge testing. It supports various line types, protecting auxiliary equipment while applying disturbances. Built with a modular design and rugged construction, it complies with IEC/EN 61000-4 standards.
Ideal for compliance labs and manufacturers, the PCD121 ensures reliable and repeatable testing. Its flexibility and long-term durability make it an essential tool for professional EMC testing environments.
Testwall can supply the used Haefely PCD121, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Haefely PCD121.
