Haefely PIM120
| Attribute | Value |
|---|---|
| Test Standard Compliance | IEC 62037, passive intermodulation testing |
| Frequency Range | 700 MHz – 2700 MHz |
| Carrier Output Power | 2 x 20 W (2 x 43 dBm) |
| PIM Measurement Sensitivity | -120 dBm (typical) |
| Intermodulation Order | 3rd order intermodulation products (IM3) |
| Dynamic Range | Greater than 160 dBc |
| Connector Type | 7/16 DIN female |
| Measurement Mode | Swept frequency and spot frequency measurement |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Interface / Connectivity | USB, LAN (Ethernet), compatible with PC-based control software |
Haefely PIM120 Options:
- PIM120 - PCD 120 - 4 wire coupling unit compliant to ITU & IEC requirements. Automatic coupling path switching.
- PIM120 - PCD 122 - 4 wire coupling unit compliant to IEC and ITU requirements. Manual coupling path control.
- PIM120 - PIM 100 - Combination wave generator according to ANSI C62.41 & IEC 61000-4-5
- PIM120 - DEC 5 - 4 wire decoupling unit with current compensated inductors for decoupling according to IEC 61000-4-5.
- PIM120 - DEC 6 - 4 wire decoupling unit with resistors according to ITU K.44.
- PIM120 - Meas. Adapter - Pig tail cable with HV plug, 1m. Used to connect the PIM 120 directly to the EUT.
- PIM120 - WinFEAT&R - Control and reporting software. Runs under windows 98, NT, ME, 2000, XP
| Model | PIM120 |
|---|

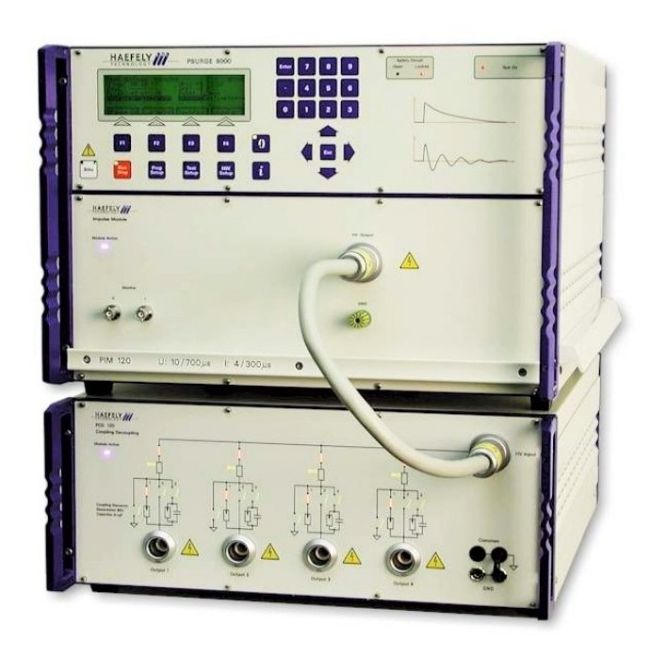

The Haefely PIM120 is a precision impulse current generator designed for component and material testing. It delivers controlled, high-current pulses that ensure durability verification and compliance with industry standards. Built with advanced engineering, the PIM120 offers accuracy, repeatability, and a reliable safety design, making it suitable for demanding laboratory environments.
Its high-current generation capability makes it ideal for testing material performance under stress. Engineers and researchers can depend on the PIM120 to evaluate product resilience while maintaining rigorous safety and precision requirements.
Testwall can supply the used Haefely PIM120, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Haefely PIM120.
