Haefely PSURGE 8000
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 8 kV (open circuit) |
| Output Current Range | Up to 4 kA (short circuit) |
| Surge Waveforms | 1.2/50 µs voltage wave, 8/20 µs current wave (combination wave) |
| Standards Compliance | IEC 61000-4-5, ANSI/IEEE C62.41, ITU-T K.44, Telcordia GR-1089 |
| Source Impedance | 2 Ω (combination wave generator) |
| Coupling/Decoupling Network | Integrated CDN for line-to-line and line-to-earth coupling |
| Repetition Rate | Up to 60 surges per minute |
| Phase Angle Selection | 0° to 360°, programmable synchronization to AC mains |
| Control Interface | PC-based software control via USB/RS-232, automated test sequences |
| Mains Supply Input | 100–240 V AC, 50/60 Hz, single phase |
Haefely PSURGE 8000 Options:
- PSURGE 8000 - PIM 100 (2499020) - Combination wave impulse module, built according to IEC/EN 61000-4-5 Ed. 1 & 2 and ANSI C62.41/45; 1.2/50 µs open circuit up to 7.4 kV, 8/20 µs short circuit up to 3.7 kA
- PSURGE 8000 - PIM 110 (2499030) - Ring wave impulse module, built according to IEC/EN 61000-4-12 and ANSI C62.41/45; 100 kHz frequency, 0.5 µs rise time, impulse voltage up to 7.8 kV
- PSURGE 8000 - PIM 120 (2499400) - Telecom wave impulse module, built according to IEC/EN 61000-4-5 Ed. 1 & 2, ITU K-series and IEC 60950; 10/700 µs open circuit voltage, 5/320 µs short circuit current, up to 7.4 kV
- PSURGE 8000 - PIM 150 (2499390) - Oscillating wave impulse module, built according to IEC/EN 61000-4-12 Ed.1, IEC 61000-4-18 Ed.1, IEC 60255-22-1 and ANSI C37.90; 100 kHz and 1 MHz burst frequencies, 75 ns rise time, up to 3.3 kV / 200 Ω
- PSURGE 8000 - PCD 100 (2499040) - Single-phase CDN for combination wave and ring wave, built according to IEC/EN 61000-4-5 Ed. 1 & 2, ANSI C62.41/45, TIA-968A, Telcordia GR 1089 CORE; up to 8 kV, EUT mains up to 264 V / 16 A
- PSURGE 8000 - PCD 120 (2499410) - Four-wire coupling unit for telecom wave; 4-wire coupling for unshielded symmetrical operated lines, compliant with IEC 61000-4-5 (10/700 µs), ITU K.20/K.21/K.44/K.45
- PSURGE 8000 - PCD 130 (2499640) - Three-phase CDN for combination wave and ring wave, built according to IEC/EN 61000-4-5 Ed. 1 & 2, ANSI C62.41/45, TIA-968A, Telcordia GR 1089 CORE; up to 8 kV, EUT mains up to 690 V / 400 V, up to 32 A per phase
| Model | PSURGE 8000 |
|---|

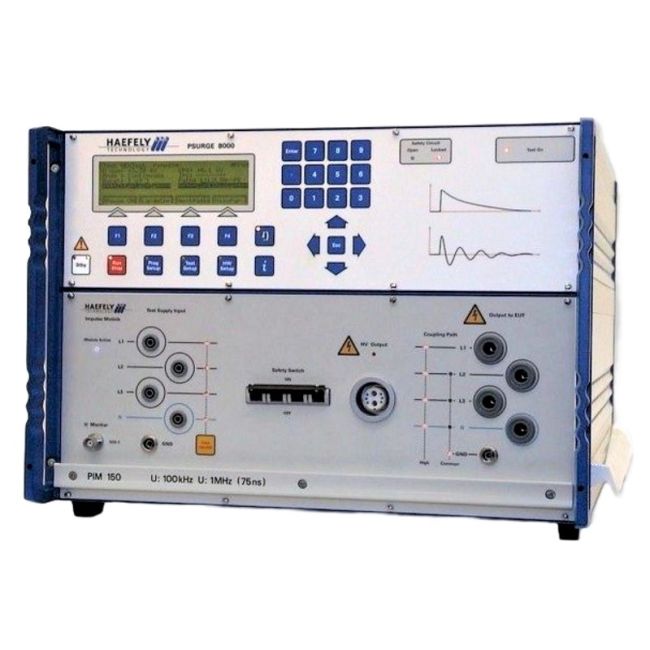

The Haefely PSURGE 8000 is a surge generator designed for telecom and industrial testing, supporting IEC, ANSI, and ITU-T standards. It delivers a wide range of surge waveforms to replicate real-world electrical disturbances with precision. Its modular design allows for flexible expansion, ensuring adaptability across diverse compliance and validation requirements.
Engineered for robustness, the PSURGE 8000 is ideal for laboratories and industries requiring long-term reliability in surge testing. Its flexible architecture makes it suitable for both standard and advanced testing applications.
Testwall can supply the used Haefely PSURGE 8000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Haefely PSURGE 8000.
