Rohde & Schwarz ESCI3
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz – 3 GHz |
| Frequency Resolution | 1 Hz |
| Display Average Noise Level (DANL) | -145 dBm (typ.) at 1 GHz, preamp off |
| Phase Noise | -108 dBc (1 Hz) at 10 kHz offset, 1 GHz carrier |
| Level Measurement Range | -145 dBm to +20 dBm |
| Input Impedance | 50 Ω |
| Resolution Bandwidth (RBW) | 10 Hz – 10 MHz (in 1/2/3/5/10 steps), plus 200 Hz, 9 kHz, 120 kHz EMI bandwidths |
| Video Bandwidth (VBW) | 1 Hz – 10 MHz |
| Third-Order Intercept (TOI) | +15 dBm (typ.) at 1 GHz |
| EMI Measurement Compliance | CISPR 16-1-1 compliant, supports EMI pre-compliance testing with peak, quasi-peak, and average detectors |
Rohde & Schwarz ESCI3 9kHz To 3GHz EMI Compliance Test Receiver Options:
- ESCI3 - B1 - Rugged Case, With Carrying Handle
- ESCI3 - B10 - External Generator Control
- ESCI3 - B16 - Lan Interface 100Baset
- ESCI3 - B20 - Expanded Environmental Specifications (Flash Disk)
- ESCI3 - B30 - Dc Power Supply
- ESCI3 - B31 - Battery Pack, With Charging Unit
- ESCI3 - B32 - Spare Battery Pack (Nimh)
- ESCI3 - B4 - Ocxo Reference Frequency
- ESCI3 - B6 - Tv Trigger/Rf Power Trigger
- ESCI3 - B9 - Tracking Generator, I/Q Modulator
- ESCI3 - EMC32-EB - Emi Measurement Software; Basic Version With Hardlock Copy Protection
- ESCI3 - EMC32-K10 - Emi Auto Test Option For Emc32-Eb
- ESCI3 - EMC32-K11 - Sequencer For Emc Measurements
- ESCI3 - ES-SCAN - Emi Precompliance Software
- ESCI3 - K3 - Noise Measurement Software
- ESCI3 - K7 - Fm Measurement Demodulator
| Model | ESCI3 |
|---|

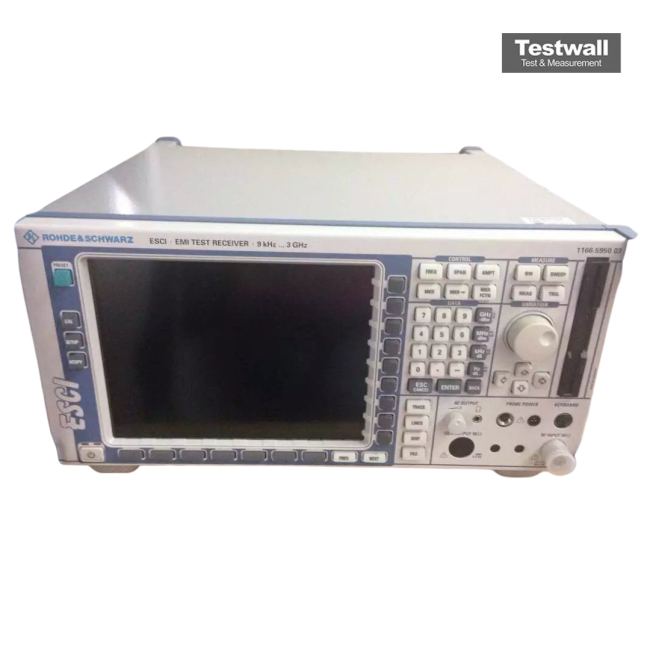

The Rohde & Schwarz ESCI3 EMI Compliance Test Receiver operates from 9 kHz to 3 GHz and features 11 preselection filters, pulse weighting per CISPR 16-1-1, and a pulse-protected RF input. It includes a 21 cm TFT color display and supports remote control via IEC/IEEE or LAN interface.
Ideal for laboratory and field use, it supports manual, automatic, and system-compatible modes. Also acts as a spectrum and time domain analyzer with comprehensive compliance features.
Testwall can supply the used Rohde & Schwarz ESCI3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESCI3.
