Hameg

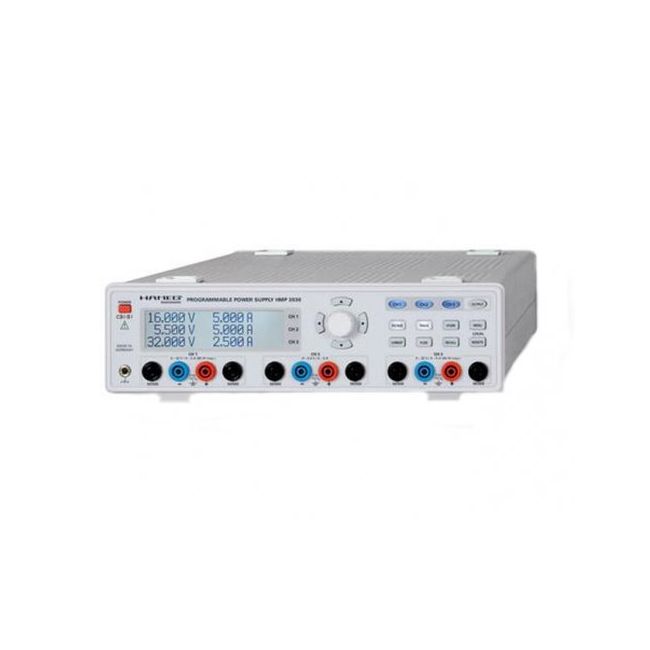

Hameg HMP4030 Power Supply
3 Number of Channels
0 – 32 V per channel Output Voltage Range
0 – 10 A per channel Output Current Range
384 W total Maximum Output Power
1 mV Voltage Setting Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 3 |
| Output Voltage Range | 0 – 32 V per channel |
| Output Current Range | 0 – 10 A per channel |
| Maximum Output Power | 384 W total |
| Voltage Setting Resolution | 1 mV |
| Current Setting Resolution | 1 mA |
| Line Regulation (Voltage) | < 0.5 mV |
| Load Regulation (Voltage) | < 0.5 mV |
| Interface / Connectivity | USB, RS-232, optional GPIB |
| Display | Backlit LCD, 4-digit voltage and current readout per channel |
Hameg HMP4030 Power Supply Options:
- HMP4030 - HO730 - Dual-Interface Ethernet/USB
- HMP4030 - HO740 - Interface IEEE-488 (GPIB), galvanically isolated
- HMP4030 - HZ10S - 5 x silicone test lead (measurement connection in black)
- HMP4030 - HZ10R - 5 x silicone test lead (measurement connection in red)
- HMP4030 - HZ10B - 5 x silicone test lead (measurement connection in blue)
- HMP4030 - HZ13 - Interface cable (USB) 1.8m
- HMP4030 - HZ14 - Interface cable (serial) 1:1
- HMP4030 - HZ43 - 19" Rackmount Kit 3RU
- HMP4030 - HZ72 - GPIB-Cable 2m
- HMP4030 - HZP91 - 19" Rackmount Kit 4RU
| Model | HMP4030 |
|---|
The HMP4030 is a high-performance programmable power supply.
With advanced parallel and series operation offering: simultaneous switching on/off of active Channels via "Output" button, common voltage- and current control using tracking mode (individual channel linking), individual mapping of Channels which shall be affected by FuseLink overcurrent protection (switch-off) and all Channels galvanically isolated from each other and the protective earth.
Key Features
- Intelligent power management
- Low residual ripple: < 150 ?V (RMS)
- Advanced parallel and serial operation via V/I tracking
- EasyArb function for user-definable V/I characteristics
- FuseLink: individual channel combination of electronic fuses
- User-adjustable overvoltage protection (OVP) for all outputs
- USB/RS-232 interface, optionally Ethernet/USB or IEEE 488 (GPIB)
- Galvanically isolated, earth-free and short-circuit-protected output channels
