Hioki PQ3198
| Attribute | Value |
|---|---|
| Measurement Parameters | Voltage, Current, Power, Power Factor, Harmonics, Flicker, Unbalance, Frequency |
| Voltage Measurement Range | 100 to 780V AC (L-N), 100 to 1350V AC (L-L) |
| Current Measurement Range | Depends on connected clamp sensor (compatible with Hioki clamp-on CT series) |
| Frequency Range | 50/60 Hz |
| Memory Capacity | Up to 8 GB (SD card), capable of storing extended recording sessions |
| Display | 5.7-inch TFT color LCD touchscreen |
| Power Quality Standards Compliance | IEC 61000-4-30 Class A, EN 50160 |
| Wiring Configuration Support | Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire, Three-phase 4-wire |
| Communication Interface | USB, LAN (Ethernet), SD card slot |
| Power Supply | AC adapter (100 to 240V AC), or Battery pack (optional), approximately 3 hours battery life |
Hioki PQ3198 Options:
- PQ3198 - PQ3198 - Base unit only (includes VOLTAGE CORD L1000, AC ADAPTER Z1002, BATTERY PACK Z1003, USB cable, Color clips, Spiral tubes, Strap, User manual, Measurement guide, PQ ONE software CD, SD MEMORY CARD Z4001)
- PQ3198 - PQ3198-92 - Includes AC CURRENT SENSOR CT7136 ×4, CARRYING CASE C1009, PATCH CORD L1021-02 ×3
- PQ3198 - PQ3198-94 - Includes AC FLEXIBLE CURRENT SENSOR CT7045 ×4, CARRYING CASE C1009, PATCH CORD L1021-02 ×3
| Model | PQ3198 |
|---|

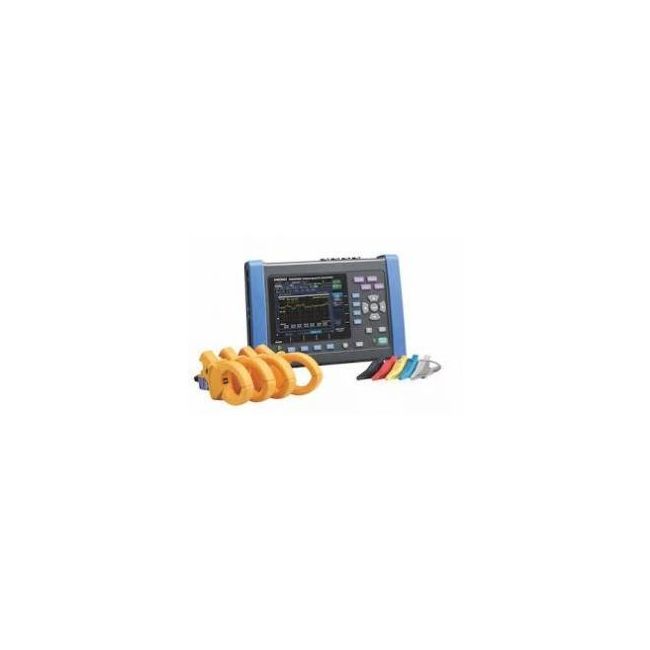

The Hioki PQ3198 Power Quality Analyzer is engineered to capture a wide spectrum of power anomalies, including interruptions, voltage dips, swells, frequency fluctuations, harmonics, and flicker. It features four voltage channels, one isolated, enabling simultaneous measurement of two independent circuits for efficiency and power validation, fully compliant with IEC 61000-4-30 Ed. 2 Class A standards.
Ideal for analyzing renewable energy systems, EV charging stations, or unstable grids, the PQ3198 ensures precise recording and monitoring. The included PQ ONE software offers advanced data visualization and streamlined analysis for field engineers and technicians.
Testwall can supply the used Hioki PQ3198 Power Quality Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Hioki PQ3198 Power Quality Analyzer.
