Hioki PW3337
| Attribute | Value |
|---|---|
| Measured Parameters | Voltage, Current, Power, Power Factor, Frequency, Harmonics |
| Number of Phases | Single-phase, Single-phase 3-wire, Three-phase 3-wire, Three-phase 4-wire |
| Voltage Measurement Range | 15 V to 600 V (RMS) |
| Current Measurement Range | 0.5 A to 65 A (direct input); expandable with clamp sensors |
| Frequency Range | 45 Hz to 66 Hz |
| Basic Power Accuracy | ±0.2% of reading |
| Display | Large LCD with simultaneous multi-parameter display |
| Data Storage & Interface | USB interface for data transfer and storage; compatible with PC software |
| Harmonic Analysis | Up to 50th order harmonic measurement |
| Power Supply | AC adapter or battery-powered operation for portability |
Hioki PW3337 Options:
- PW3337 - 01 - 3-channel with GP-IB interface
- PW3337 - 02 - 3-channel with D/A output
- PW3337 - 03 - 3-channel with GP-IB and D/A output
| Model | PW3337 |
|---|

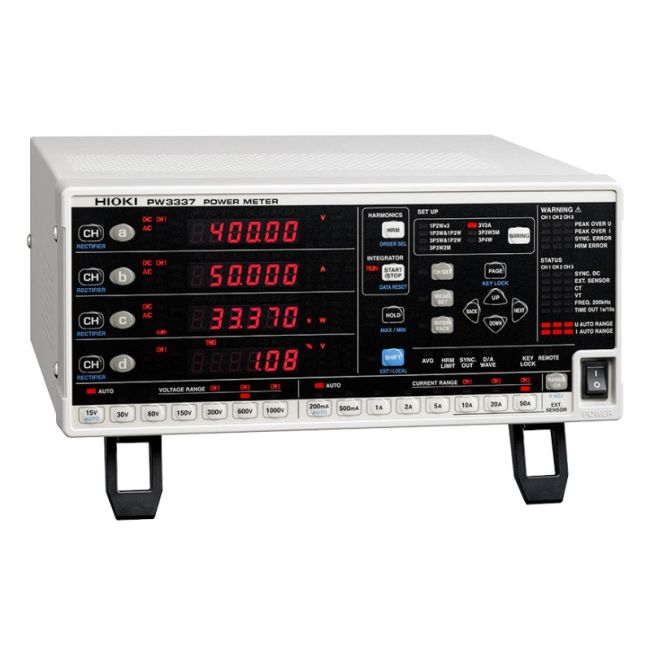

The Hioki PW3337 3-Channel Power Meter delivers precise power analysis with current measurement up to 65 A direct input and integrated harmonic analysis. Supporting 1-phase/2-wire to 3-phase/4-wire measurement lines, it ensures accuracy across a wide frequency range from DC and 0.1 Hz to 100 kHz. With GP-IB, LAN, and D/A output interfaces, it adapts seamlessly to diverse testing environments.
Engineered for inverter, motor, and power conditioner evaluations, the PW3337 enables accurate simultaneous measurement of power consumption and harmonic parameters. Its wide dynamic range ensures integrated power measurement accuracy, even with dramatic fluctuations.
Testwall can supply the used Hioki PW3337 3-Channel Power Meter, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Hioki PW3337 3-Channel Power Meter.
