Megger MIT1025
| Attribute | Value |
|---|---|
| Test Voltage Range | 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V DC |
| Maximum Insulation Resistance Measurement | 10 TΩ |
| Resistance Measurement Range | 10 kΩ to 10 TΩ |
| Low Resistance (Continuity) Test Range | 0.01 Ω to 999.9 Ω |
| Short Circuit Current | 3 mA maximum |
| Display | Dual LCD display with analog arc and digital readout |
| Measurement Functions | Insulation Resistance (IR), Polarization Index (PI), Dielectric Absorption Ratio (DAR), Step Voltage, Dielectric Discharge (DD) |
| Power Supply | 8 x AA alkaline batteries or external DC supply via USB |
| Safety Rating | CAT III 600 V / CAT II 1000 V, IEC 61010-1 |
| Environmental Rating | IP54 (dust and splash protected), operating temperature -10°C to +50°C |
Megger MIT1025 Options:
- MIT1025 - UK - MIT1025-UK (Part number 1001-943)
- MIT1025 - US - MIT1025-US (Part number 1001-944)
- MIT1025 - EU - MIT1025-EU (Part number 1001-945)
- MIT1025 - AU - MIT1025-AU (Part number 1001-946)
| Model | MIT1025 |
|---|

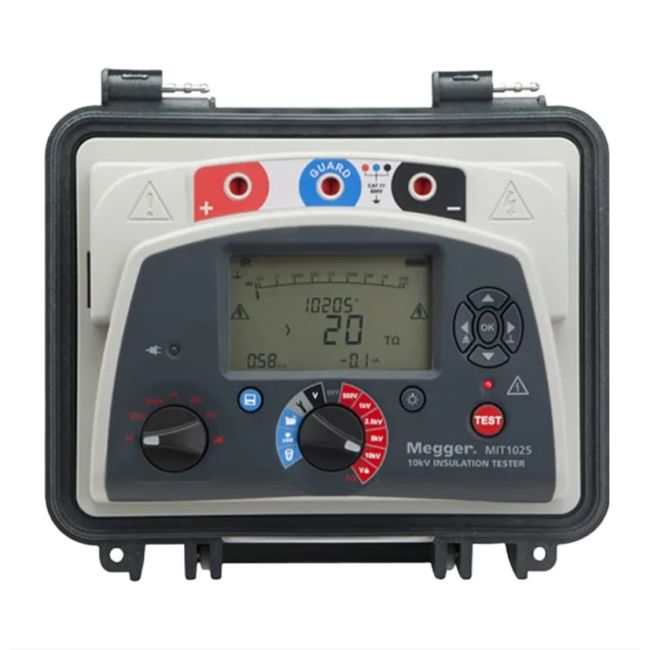

The Megger MIT1025 is a compact 10 kV insulation resistance tester offering CAT IV safety and advanced diagnostics, including Polarisation Index, Dielectric Absorption Ratio, Step Voltage, Dielectric Discharge, and ramp testing. It measures insulation resistance up to 20 TΩ with precision. Designed with lithium-ion fast rechargeable batteries and a large backlit display, it ensures excellent usability in both bright and dim environments.
Its dual case design combines a rugged outer shell with a fire-retardant inner case for superior durability. Operation is straightforward using two rotary switches and a clear interface, allowing multiple test results to be displayed simultaneously. Memory features include time/date stamping, data logging, and recall functions. A fully isolated USB interface enables safe data transfer to Megger PowerDB software.
Testwall can supply the used Megger MIT1025, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger MIT1025.
