Hipotronics X-WAVE
| Attribute | Value |
|---|---|
| Waveform Types | Lightning Impulse, Switching Impulse, AC, DC |
| Voltage Range | Up to 6000 kV |
| Current Range | Up to 500 kA |
| Measurement Accuracy | ±1% or better per IEC 60060-2 standards |
| Sampling Rate | Up to 400 MS/s |
| Resolution | 16-bit ADC |
| Communication Interface | Ethernet (TCP/IP), USB, GPIB |
| Standards Compliance | IEC 60060-1, IEC 60060-2, IEEE Std 4 |
| Software Compatibility | Windows-based control and analysis software included |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Hipotronics X-WAVE Options:
- X-WAVE - X-WAVE-BATTERY - Extra Auxiliary Battery Pack
- X-WAVE - X-WAVE-POWER - Auxiliary AC Power Adapter (Allows users to run the equipment while charging simultaneously.)
- X-WAVE - H-FLASH - Digital Acoustic/Ballistic Listening Device
- X-WAVE - EXT-WARN-1 - One year extended warranty
| Model | X-WAVE |
|---|

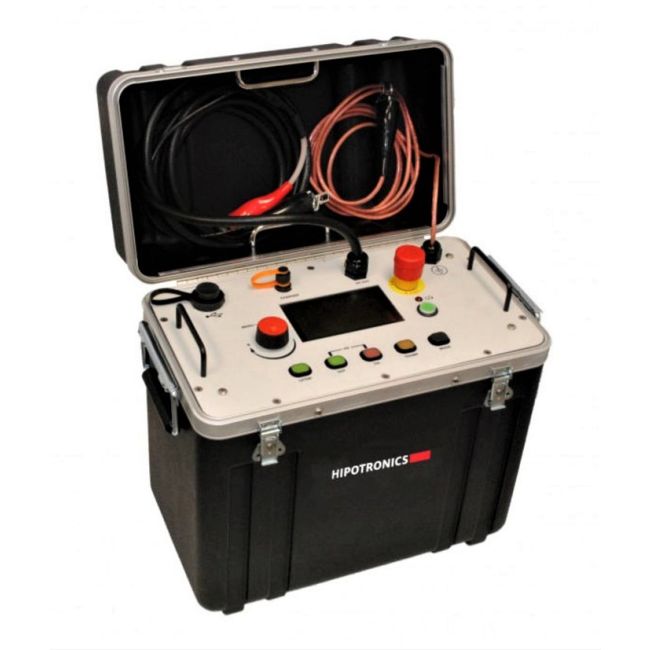

The Hipotronics X-Wave is a state-of-the-art partial discharge and diagnostic tool, designed to capture, analyze, and interpret electrical waveforms with exceptional accuracy. Its high-sensitivity detection technology allows for early identification of insulation defects, reducing downtime and extending the operational life of high-voltage assets.
Engineered for both field and laboratory use, the X-Wave features a portable design, enhanced fault location accuracy, and supports condition-based maintenance strategies. Its advanced waveform capture and analysis capabilities make it an indispensable instrument for reliable diagnostics.
Testwall can supply the used Hipotronics X-Wave, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Hipotronics X-Wave.
