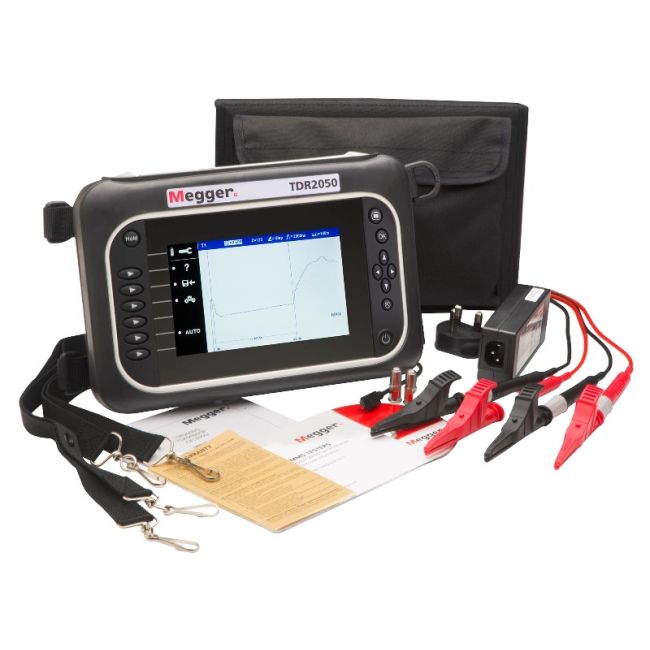

Megger TDR2050
| Attribute | Value |
|---|---|
| Operating Frequency Range | DC to 1.5 GHz |
| Distance Range | Up to 2000 meters (6560 feet) |
| Distance Resolution | 0.1 meter |
| Rise Time | 200 ps |
| Output Impedance | 50 Ohms |
| Display | 5.7-inch color LCD touchscreen |
| Battery Life | Up to 8 hours of continuous operation |
| Velocity of Propagation (VOP) | Adjustable from 1% to 99% |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Connector Type | BNC (50 Ohm) |
Megger TDR2050 Options:
- TDR2050 - 6231-652 - Miniature clip test lead set (1 pair)
- TDR2050 - 1002-015 - Split conductor fused test lead set (1 pair)
- TDR2050 - 1002-552 - Replacement battery
- TDR2050 - 1003-218 - Terminal adaptor kit
- TDR2050 - 25970-002 - AC power lead - US
- TDR2050 - 1002-491 - Red and black probes and clips - for use with all Megger TDR Fused Test Leads
- TDR2050 - 1006-511 - Retractable sheath fused test lead (1 pair)
| Model | TDR2050 |
|---|
The Megger TDR2050 dual-channel Time Domain Reflectometer provides precise fault location on metallic paired cables with a 0.1 m resolution and up to 20 km range. Its selectable impedances (25–140Ω + AUTO) and adjustable velocity factor (0.2–0.99) ensure adaptability across diverse cable types. With AUTO setup and manual override, it simplifies fault detection and supports advanced dual trace and dual cursor analysis.
Equipped with 100 internal trace memories, FindEnd for rapid cable length measurement, and trace tagging, the TDR2050 enhances data management. TraceXpert software adds control over storing, reporting, and downloading test results.
Testwall can supply the used Megger TDR2050, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger TDR2050.
