InTest - Temptronic ATS-870-M
| Attribute | Value |
|---|---|
| Temperature Range | -80°C to +225°C |
| Temperature Stability | ±0.1°C |
| Airflow Rate | Up to 870 CFM |
| Cooling Technology | Liquid Nitrogen (LN2) or CO2 cooling |
| Heating Capacity | 6000W |
| Control Interface | IEEE-488 (GPIB) and RS-232 |
| Temperature Ramp Rate | Up to 50°C per minute |
| Power Requirements | 208/240 VAC, 50/60 Hz, Single Phase |
| Nozzle Diameter | Adjustable, compatible with standard thermal stream nozzles |
| Application | IC device thermal testing, component-level temperature forcing for ATE systems |
InTest - Temptronic ATS-870-M Options:
- ATS-870-M - - 4.5 inch ID Thermal Cap for connection to external Thermal Chambers or enclosures
- ATS-870-M - - 5.5 inch ID Thermal Cap for connection to external Thermal Chambers or enclosures
- ATS-870-M - - FlexExtender Hose for connection to external Thermal Chambers or enclosures
- ATS-870-M - - Extended Height Option (188.0 cm / 74.0 in. maximum operating height)
- ATS-870-M - - MobileTemp Thermal Chambers (temperature chambers designed specifically for use with ATS ThermoStream Systems)
| Model | ATS-870-M |
|---|

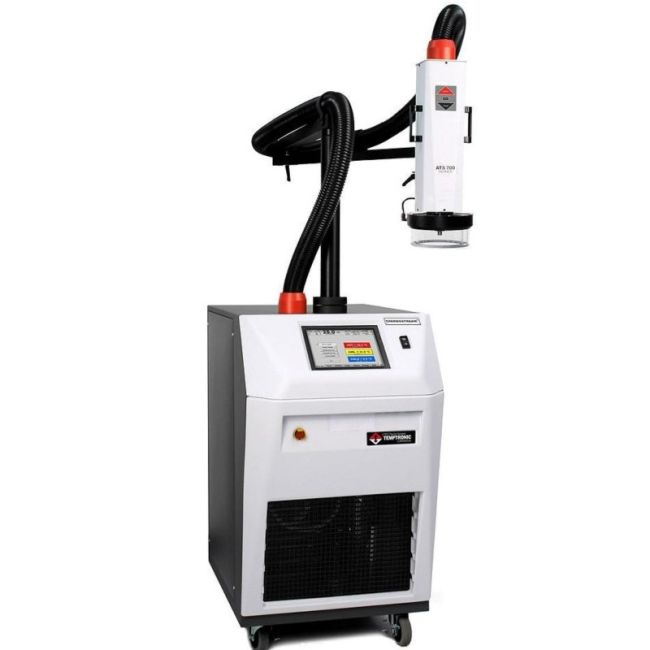

The inTEST ATS-870-M is a mobile thermal forcing system engineered for high-performance testing with extended thermal capacity. It delivers precise temperature control and rapid transitions, ensuring accuracy in demanding applications. Designed for portability, it supports both on-site and laboratory environments with durable construction for long-term, reliable operation.
Engineers can depend on its fast response and strong build for efficient evaluations at manufacturing or client sites. Its extended range and accuracy make it an ideal solution where precision and reliability are critical.
Testwall can supply the used inTEST ATS-870-M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the inTEST ATS-870-M.
