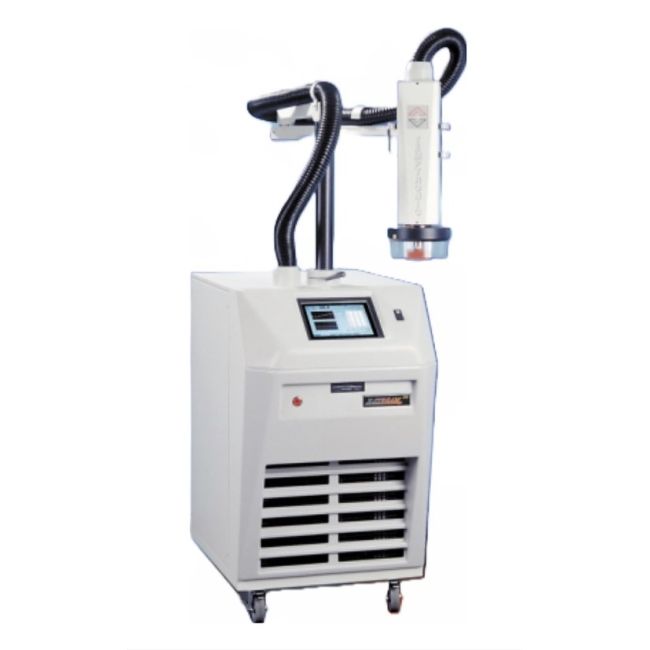

InTest - Temptronic TP04300A
| Attribute | Value |
|---|---|
| Temperature Range | -60°C to +225°C |
| Temperature Stability | ±0.1°C |
| Cooling Technology | Thermostream air temperature forcing system |
| Flow Rate | Up to 425 SCFH (200 liters/min) |
| Transition Time (Hot to Cold) | Less than 15 seconds (ambient to -60°C) |
| Heating Capacity | 1800W maximum |
| Cooling Capacity | Liquid nitrogen or liquid CO2 assisted |
| Interface/Control | RS-232 serial interface with programmable controller |
| Power Requirements | 208/240 VAC, 50/60 Hz, single phase |
| Applications | IC device testing, PCB thermal testing, component characterization |
InTest - Temptronic TP04300A Options:
- TP04300A - THERMAL CAP (4.5 in. ID) - Transparent glass Thermal Cap, 4.5 in. ID (one included with system; additional caps optional)
- TP04300A - THERMAL CAP (5.5 in. ID) - Transparent glass Thermal Cap, 5.5 in. ID (optional, additional)
- TP04300A - METAL CAP (5.5 in. ID) - Non-transparent metal Thermal Cap, 5.5 in. ID (available by special order, check with factory)
- TP04300A - MOBILETEMP - MOBILETEMP™ Thermal Chamber, Hood design (optional compact portable thermal chamber)
- TP04300A - MOBILETEMP - MOBILETEMP™ Thermal Chamber, Clamshell (top load) design (optional compact portable thermal chamber)
- TP04300A - MOBILETEMP - MOBILETEMP™ Thermal Chamber, Front Load design (optional compact portable thermal chamber)
- TP04300A - TALLER HEIGHT - Taller operating height option (contact factory for details)
| Model | TP04300A |
|---|
The inTEST Temptronic TP04300A provides advanced thermal control for large devices, delivering a wide and precise temperature range with repeatable and accurate thermal conditioning. Its robust platform ensures stable performance, simplifying validation and qualification processes.
Engineers rely on the TP04300A for device testing under extreme conditions, making it ideal for short-term analysis and long-term qualification studies with reliable thermal management.
Testwall can supply the used inTEST Temptronic TP04300A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the inTEST Temptronic TP04300A.
