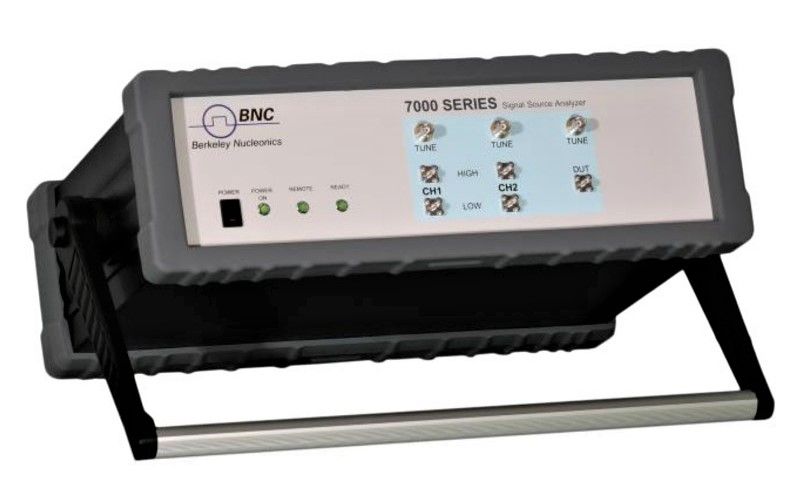

Berkeley Nucleonics 7070

 BERKELEY NUCLEONICS 7070 Signal Source Analyzer

The Berkeley Nucleonics 7070 is an integrated solution that offers an indispensable set of measurement functions for evaluating signal sources ranging from VHF to microwave frequencies such as crystal oscillators, PLL synthesizers, clocks, phase-locked or free-running VCOs, DROs, SAW or YIG oscillators, and others.  The flexible instrument comprises a two-channel cross-correlation system with two internal tunable references sources and also allows measurements with externally fed references.  It is a compact and powerful instrument available with LAN (VXI-11), USBTMC, or with GPIB (optionally) interfaces. Platform independent intuitive graphical user interface (GUI), API library, and powerful SCPI command language set are available. The Berkeley Nucleonics 7070 has a frequency range from 1 MHz to 7 GHz.

Features of  the  BERKELEY NUCLEONICS 7070 Signal Source Analyzer Include:

• Absolute and residual phase noise measurements
• Amplitude noise measurements
• Pulsed absolute and residual phase noise measurements
• Two channel 100 MHz FFT analyzer
• Transient measurements (frequency, phase, amplitude versus time)
• Spectrum analysis
• Frequency counter function / power meter
