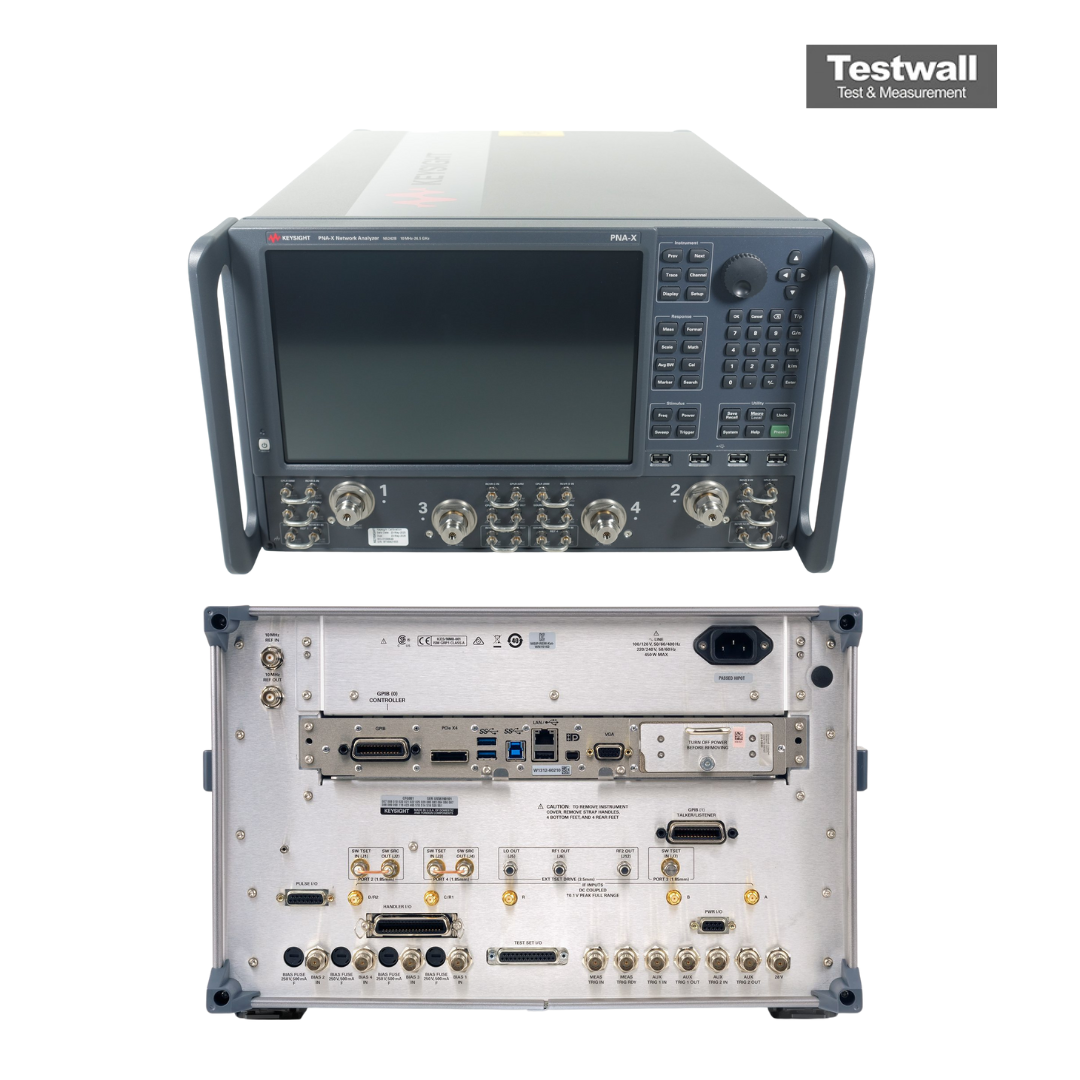

Keysight (Agilent) N5242B
| Attributo | Valore |
|---|---|
| Intervallo di frequenza | 10 MHz - 26,5 GHz |
| Numero di porte | 4 porte |
| Dinamica di misura | Fino a 132 dB |
| Potenza di uscita | Da -85 dBm a +10 dBm |
| Livello di rumore del pavimento | -114 dBm tipico |
| Tracce simultanee | Fino a 16 tracce simultanee |
| Impedenza nominale | 50 Ohm |
| Connettori RF | 3,5 mm (compatibile con SMA) |
| Interfacce di connettività | USB, LAN (GPIB opzionale) |
| Alimentazione | 100-240 V CA, 50/60 Hz |
Keysight (Agilent) N5242B Options:
- N5242B - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires option 219, 222, 224, 419, 422, or 423)
- N5242B - 201 - 2-port standard test set (includes six front-panel access loops) and power range
- N5242B - 217 - 2-port standard test set (includes six front-panel access loops), power range, and source and receiver attenuators (extended power range)
- N5242B - 219 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), and bias-tees
- N5242B - 222 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches
- N5242B - 224 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches, and bias tees
- N5242B - 401 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5242B - 417 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source (Option 080 recommended), and source and receiver attenuators (extended power range)
- N5242B - 419 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source (Option 080 recommended), source and receiver attenuators (extended power range), and bias-tees
- N5242B - 422 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches
- N5242B - 423 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches, and bias tees
- N5242B - 425 - 4-port configurable test set, source and receiver attenuators, internal second source, combiner, mechanical switches, low frequency extension (LFE), and dedicated 26.5 GHz noise receiver
| Model | N5242B |
|---|

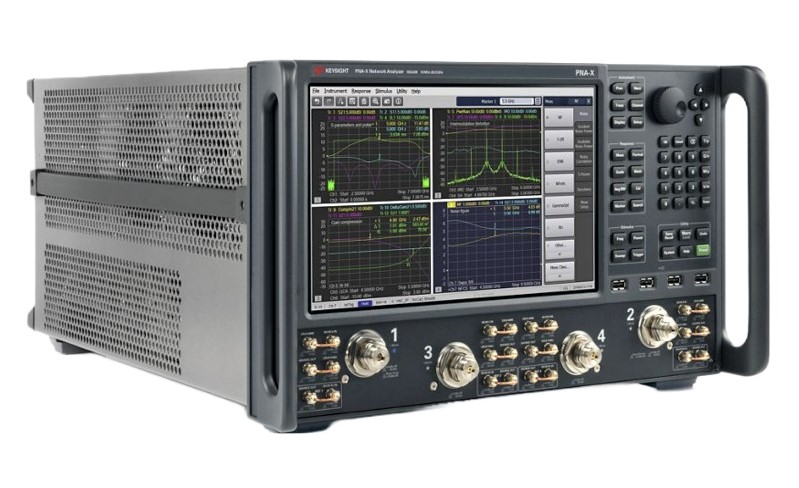

Keysight (Agilent) N5242B PNA-X Network Analyzer
More than just a vector network analyzer, the Keysight N5242B PNA-X Network Analyzer is the world's most integrated and flexible microwave test engine for measuring active devices like amplifiers, mixers, and frequency converters. The combination of two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a flexible set of switches and RF access points provide a powerful hardware core for a broad range of linear and nonlinear measurements, all with a single set of connections to your device-under-test (DUT).
When you're characterizing active devices, the right mix of speed and performance gives you an edge. In R&D, the Keysight N5242B provides a level of measurement integrity that helps you transform deeper understanding into better designs. On the production line, the N5242B delivers the throughput and repeatability you need to transform great designs into competitive products. The Keysight N5242B PNA-X applications bring speed, accuracy, and ease-of-use to common RF measurements, in coaxial, fixtured, and on-wafer environments.
Specifications for the Keysight (Agilent) N5242B PNA-X Network Analyzer Include:
| Maximum Frequency | 26.5 GHz |
| Dynamic Range | 127 dB |
| Output Power | 13 dBm |
| Harmonics | -60 dBc |
