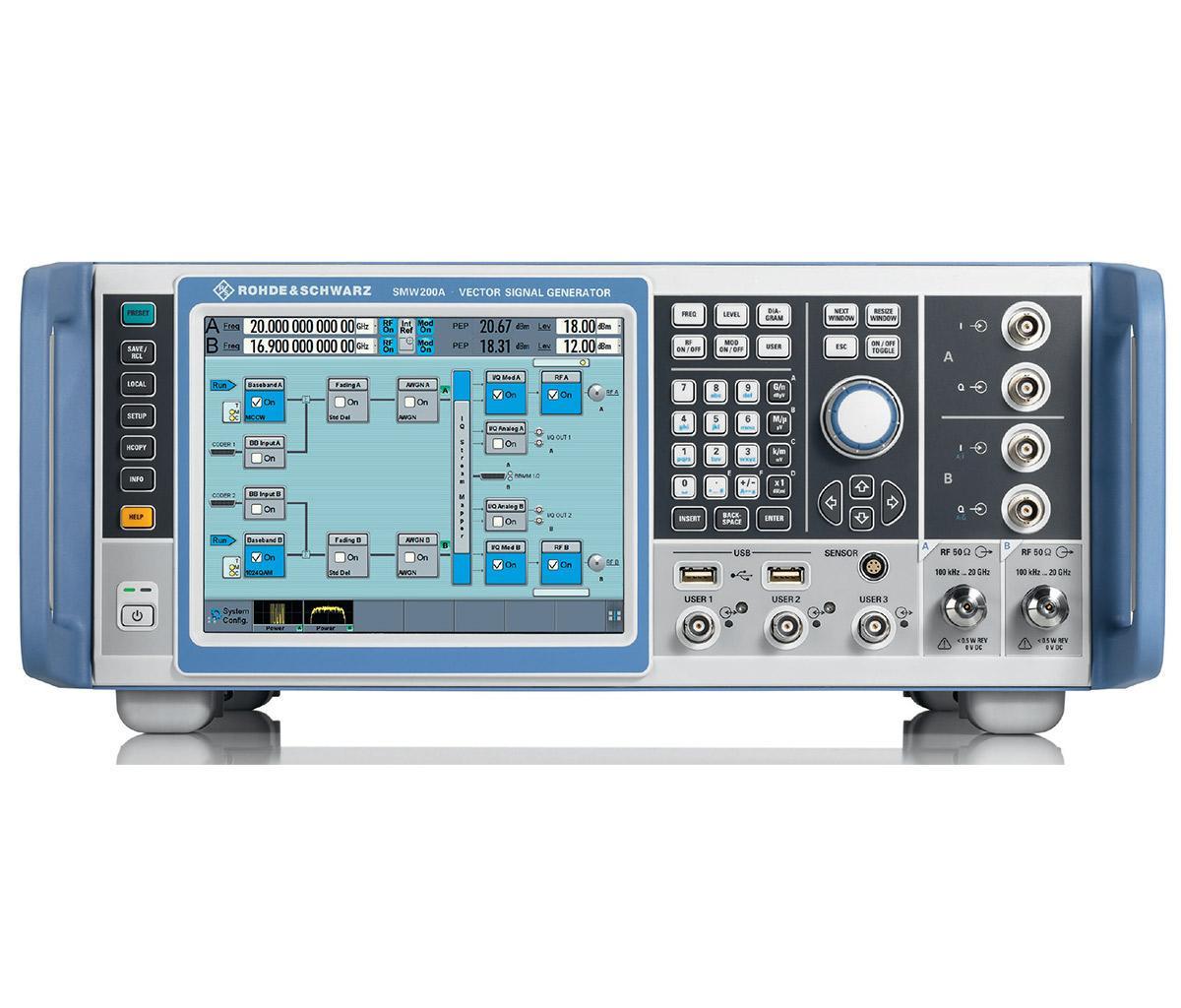

Rohde & Schwarz SMW200A-B103 3 GHz 2-Channel Vector Signal Generator, Type N (f)
3 GHz 2-Channel Vector Signal Generator
100 kHz – 3 GHz Gamma di frequenza
2 canali Numero di canali RF
Type N (femmina) Connettore RF
+18 dBm Livello di uscita massimo
0,001 Hz Risoluzione di frequenza
| Attributo | Valore |
|---|---|
| Gamma di frequenza | 100 kHz – 3 GHz |
| Numero di canali RF | 2 canali |
| Connettore RF | Type N (femmina) |
| Livello di uscita massimo | +18 dBm |
| Risoluzione di frequenza | 0,001 Hz |
| Larghezza di banda di modulazione I/Q | fino a 2 GHz |
| Purezza spettrale (rumore di fase) | -142 dBc/Hz a 20 kHz di offset (a 1 GHz) |
| Generazione di segnali standard supportati | LTE, 5G NR, WLAN, Bluetooth, GSM, WCDMA e altri |
| Interfacce di controllo | LAN (LXI), USB, GPIB (opzionale) |
| Alimentazione | 100 – 240 V AC, 50/60 Hz |
Rohde & Schwarz SMW200A-B103 3 GHz 2-Channel Vector Signal Generator, Type N (f) Options:
- SMW200A-B103 - SMW-B106 - Frequency option RF path A, 100 kHz to 6 GHz
- SMW200A-B103 - SMW-B112 - Frequency option RF path A, 100 kHz to 12.75 GHz
- SMW200A-B103 - SMW-B120 - Frequency option RF path A, 100 kHz to 20 GHz
- SMW200A-B103 - SMW-B131 - Frequency option RF path A, 100 kHz to 31.8 GHz
- SMW200A-B103 - SMW-B140 - Frequency option RF path A, 100 kHz to 40 GHz
- SMW200A-B103 - SMW-B13 - Signal Routing and Baseband Main Module, one I/Q path to RF
- SMW200A-B103 - SMW-B13T - Signal Routing and Baseband Main Module, two I/Q paths to RF
- SMW200A-B103 - SMW-B203 - Frequency option RF path B, 100 kHz to 3 GHz
- SMW200A-B103 - SMW-B206 - Frequency option RF path B, 100 kHz to 6 GHz
- SMW200A-B103 - SMW-B212 - Frequency option RF path B, 100 kHz to 12.75 GHz
- SMW200A-B103 - SMW-B220 - Frequency option RF path B, 100 kHz to 20 GHz
- SMW200A-B103 - SMW-B20 - FM/φM Modulator
- SMW200A-B103 - SMW-B22 - Enhanced Phase Noise Performance and FM/φM Modulator
- SMW200A-B103 - SMW-B90 - Phase Coherence
- SMW200A-B103 - SMW-K22 - Pulse Modulator
- SMW200A-B103 - SMW-K23 - Pulse Generator
- SMW200A-B103 - SMW-K24 - Multifunction Generator
- SMW200A-B103 - SMW-K739 - Differential Analog I/Q Inputs
- SMW200A-B103 - SMW-B10 - Baseband Generator with ARB (64 Msample) and Digital Modulation (realtime), 120 MHz RF bandwidth
- SMW200A-B103 - SMW-K16 - Differential Analog I/Q Outputs
- SMW200A-B103 - SMW-K18 - Digital Baseband Output
- SMW200A-B103 - SMW-K511 - ARB Memory Extension to 512 Msample
- SMW200A-B103 - SMW-K512 - ARB Memory Extension to 1 Gsample
- SMW200A-B103 - SMW-K522 - Baseband Extension to 160 MHz RF bandwidth
- SMW200A-B103 - SMW-K540 - Envelope Tracking
- SMW200A-B103 - SMW-K541 - AM/AM, AM/φM Predistortion
- SMW200A-B103 - SMW-K551 - Slow I/Q
- SMW200A-B103 - SMW-B14 - Fading Simulator
- SMW200A-B103 - SMW-K62 - Additive White Gaussian Noise (AWGN)
- SMW200A-B103 - SMW-K71 - Dynamic Fading
- SMW200A-B103 - SMW-K72 - Enhanced Fading Models
- SMW200A-B103 - SMW-K74 - MIMO Fading/Routing
- SMW200A-B103 - SMW-K76 - Multiple Entities
- SMW200A-B103 - SMW-K40 - GSM/EDGE
- SMW200A-B103 - SMW-K41 - EDGE Evolution
- SMW200A-B103 - SMW-K42 - 3GPP FDD
- SMW200A-B103 - SMW-K46 - CDMA2000®
- SMW200A-B103 - SMW-K47 - 1xEV-DO
- SMW200A-B103 - SMW-K49 - IEEE802.16
- SMW200A-B103 - SMW-K50 - TD-SCDMA
- SMW200A-B103 - SMW-K51 - TD-SCDMA Enhanced BS/MS Tests
- SMW200A-B103 - SMW-K52 - DVB-H/DVB-T
- SMW200A-B103 - SMW-K54 - IEEE802.11 (a/b/g/n)
- SMW200A-B103 - SMW-K55 - EUTRA/LTE
- SMW200A-B103 - SMW-K60 - Bluetooth® EDR
- SMW200A-B103 - SMW-K61 - Multicarrier CW Signal Generation
- SMW200A-B103 - SMW-K68 - TETRA Release 2
- SMW200A-B103 - SMW-K69 - LTE Closed-Loop BS Test
- SMW200A-B103 - SMW-K81 - LTE Log File Generation
- SMW200A-B103 - SMW-K83 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests
- SMW200A-B103 - SMW-K84 - EUTRA/LTE Release 9 and Enhanced Features
- SMW200A-B103 - SMW-K85 - EUTRA/LTE Release 10 (LTE-Advanced)
- SMW200A-B103 - SMW-K86 - IEEE802.11ac
- SMW200A-B103 - SMW-K87 - 1xEV-DO Rev. B
- SMW200A-B103 - SMW-K89 - NFC A/B/F
- SMW200A-B103 - SMW-K112 - LTE Release 11 and Enhanced Features
- SMW200A-B103 - SMW-K542 - Baseband Power Sweep
- SMW200A-B103 - SMW-K240 - GSM/EDGE (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K241 - EDGE Evolution (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K242 - 3GPP FDD (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K244 - GPS 1 Satellite (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K246 - CDMA2000® (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K247 - 1xEV-DO (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K249 - IEEE802.16 (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K250 - TD-SCDMA (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K251 - TD-SCDMA Enhanced BS/MS Tests (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K252 - DVB-H/DVB-T (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K253 - DAB/T-DMB (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K254 - IEEE802.11n (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K255 - EUTRA/LTE (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K260 - Bluetooth® EDR (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K261 - Multicarrier CW Signal Generation (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K262 - Additive White Gaussian Noise AWGN (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K266 - Galileo 1 Satellite (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K268 - TETRA Release 2 (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K283 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K284 - EUTRA/LTE Release 9 and Enhanced Features (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K285 - EUTRA/LTE Release 10 (LTE-Advanced) (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K286 - IEEE802.11ac (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K287 - 1xEV-DO Rev. B (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K289 - NFC A/B/F (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K294 - Glonass 1 Satellite (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K407 - Beidou 1 Satellite (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-K412 - LTE Release 11 and Enhanced Features (using R&S WinIQSIM2)
- SMW200A-B103 - SMW-B81 - Rear Panel Connectors for RF path A and I/Q, for SMW-B103 or SMW-B106 frequency option
- SMW200A-B103 - SMW-B82 - Rear Panel Connectors for RF path B, for SMW-B203 or SMW-B206 frequency option
| Model | SMW200A-B103 |
|---|

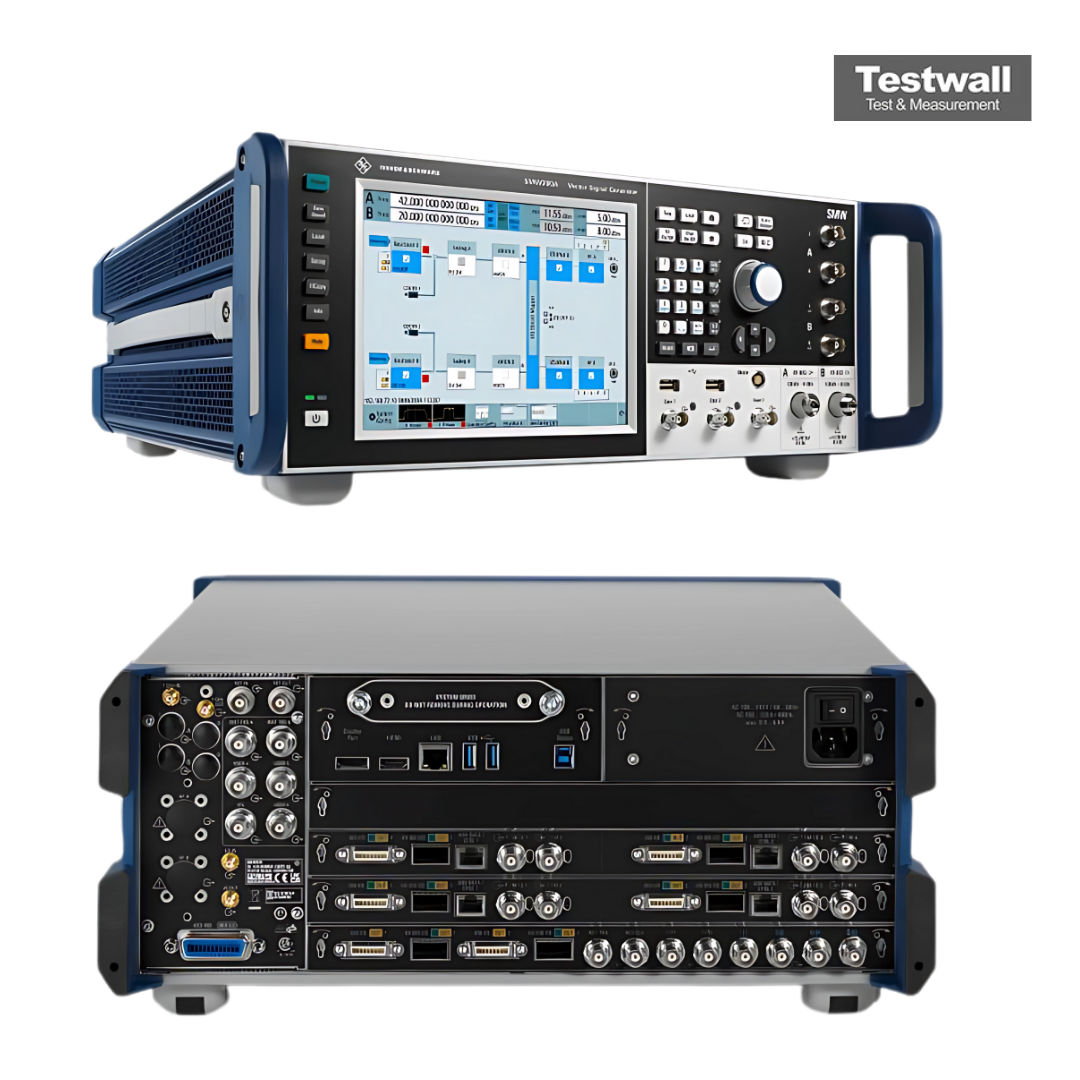

Il Rohde & Schwarz SMW200A è un generatore di segnali vettoriali ad alte prestazioni con copertura fino a 3 GHz, supporto a due canali RF e modulazione digitale avanzata. La sua architettura modulare consente una larghezza di banda I/Q interna fino a 160 MHz e l'integrazione di simulatori di fading e moduli baseband per una generazione di segnali complessi, incluso MIMO 8x2 e LTE-Advanced.
Ideale per test su stazioni base 3G/4G, applicazioni aerospaziali e difensive e futuri sistemi di comunicazione a banda larga.
Testwall può fornire il Rohde & Schwarz SMW200A 3 GHz 2-Channel Vector Signal Generator usato, completamente testato. Con supporto esperto e consegna globale, Testwall garantisce strumentazione ad alte prestazioni con affidabilità e qualità del servizio impareggiabili. Contattaci direttamente se hai bisogno di calibrazione o riparazione del Rohde & Schwarz SMW200A 3 GHz 2-Channel Vector Signal Generator.
