Seaward PV210 Options:
- PV210 - - Solar Power Clamp
- PV210 - - MC4 fused / unfused test leads
| Model | PV210 |
|---|

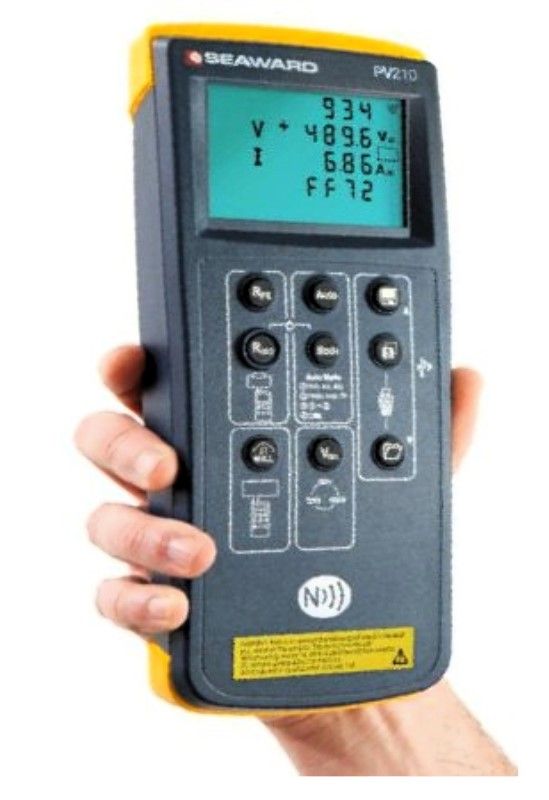

SEAWARD PV210 Photovoltaic Tester
The Seaward PV210 Photovoltaic Tester and I-V Curve Tracer is a compact and cost-effective device designed for efficient testing of PV systems. It offers simple push-button operation and versatile capabilities. It can store up to 999 datasets and enables easy comparison with standard test conditions through the SolarCert software. The PV210 conducts comprehensive tests including ground continuity, open circuit voltage, short circuit current, maximum power point voltage, current, and power (using AC/DC clamp). Additionally, it provides fill factor information for the PV module or system under test.
The Seaward PV210 includes a 1kV insulation resistance test function, eliminating the need for a separate device. The PV210 can wirelessly capture real-time irradiance, ambient temperature, and PV module temperature from the Solar Survey 200R, allowing data conversion to standard test conditions for comparison. Notable features encompass all-in-one commissioning tests, automatic fill factor calculation, various measurements for PV string evaluation, insulation tests, memory storage, NFC data transfer, and a high-contrast display.
Specifications for the SEAWARD PV210 Photovoltaic Tester Include:
| Cur Measurement Range | 0.50 ADC - 15.00 ADC |
| Voltage Measurement Range | 5 VDC - 1000 VDC |
| Voltage Measurement Accuracy | ± (0.5 % + 2 digits) |
| Cur Measurement Accuracy | ± (1% + 2 digits) |
