Sunsight Instruments AAT-15
Sunsight Instruments AAT-15 Options:
- AAT-15 - SS-T-Wireless 1 - Wireless Communication with Remote Control Software – provides access to onboard software via WiFi adapter. It adds the ability to monitor real-time alignment measurements, trigger a capture, and review the captured results from the ground.
- AAT-15 - SS-T-LsrR-Kit 1 - LASER Rangefinder ("Laser Tape Drop") – enables AAT to capture Above Ground Level (AGL) height to +/- 1 ft. (0.3 meters). Measurements can be used in lieu of a traditional tape drop.
- AAT-15 - SS-T-AzmScope-Kit-1 - Azimuth Scope Kit – allows AAT user to measure antenna azimuth from the ground within +/-2.5°. Especially useful for quick audits for towers with T-booms, Powerpoles, or Osprey nests where climbing and installing AAT on panel antenna is not permitted.
- AAT-15 - SS-T-Side-Mount-Ext-1 - AAT Side Mount Extension – allows AAT to be used on the front of panel antennas. Especially useful on flagpole towers or any site where access to the antenna side/back is limited.
- AAT-15 - SS-T-Round-Adapter-1 - AAT Round Antenna Adapter – allows AAT to be used on a variety of round (column-shaped) antennas (5-14" diameter).
| Model | AAT-15 |
|---|
SUNSIGHT AAT-15

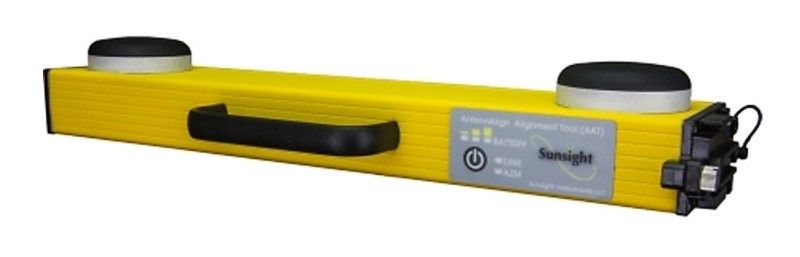

The Sunsight AAT-15 AntennAlign ® Alignment Tool is the lightest and most accurate antenna alignment tool used during equipment installation or antenna position audits. It measures antenna alignment in azimuth, tilt, and roll while also indicating its height above ground level. The AAT-15 features a quick capture feature for on site captures if antenna position data not available prior to climb. Get antenna installs right the first time, eliminate costly site re-visits or re-climbs. The AAT-15 has the best cost of ownership saving you time and money over the long life of product. It is extremely durable, with it's powder-coated aluminum housing, it is weatherproof and rugged for tough conditions General Contractors and Climbers work in. The antenna alignment tool is simple to operate and can mount to any antenna locations. In seconds, a person can take a reading from anyWiFi enabled device, instantly creating a permanent record of an antenna alignment for accountability and traceability. Desired equipment position can be input prior to climb or entered into the tool on-site. The report records the final alignment specification, including latitude/longitude, azimuth, tilt, height, and cur date and time. Records can be downloaded (via PDF or CSV) at a later time to be used by contracting companies or quality control departments to certify the installation work was performed as specified.
Specifications of the Sunsight AAT-15 AntennAlign include:
- Azimuth (Heading) Accuracy (degrees):
- +/- .15 RMS
- +/- .3 R95
- +/- .4 R99
- Tilt and Roll Range and Accuracy (degrees):
- +/- 22.5 range
- +/- .1 accuracy
- +/- 1 standard
- +/- .125 premium
- Horizontal Accuracy (ft): +/- 1**
- Vertical Accuracy - MSL (ft) +/- 2**
- Size (in) 26 x 3 x 2.6
- Weight (lb) 3.6
** Depends on multipath environment, number of satellites in view, and satellite geometry. Requires SBAS correction
