Tektronix MSO64B
| Produttore | Tektronix |
| Modello | MSO64B |
| Prodotto | Mixed Signal Oscilloscope, 1 GHz up to 10 GHz, 4 Flexchannels, up to 50 GS/s |
| Tipo | Usato |

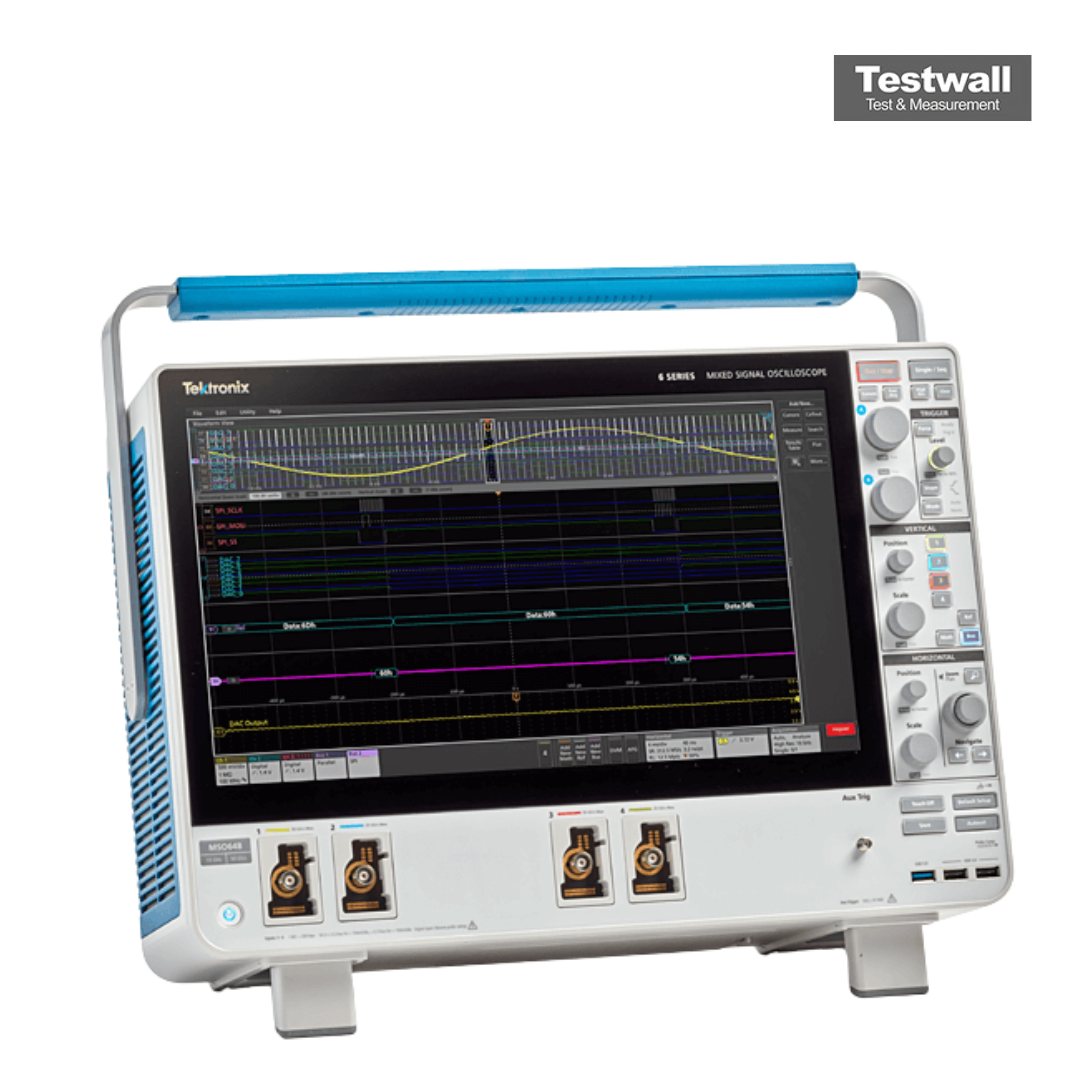

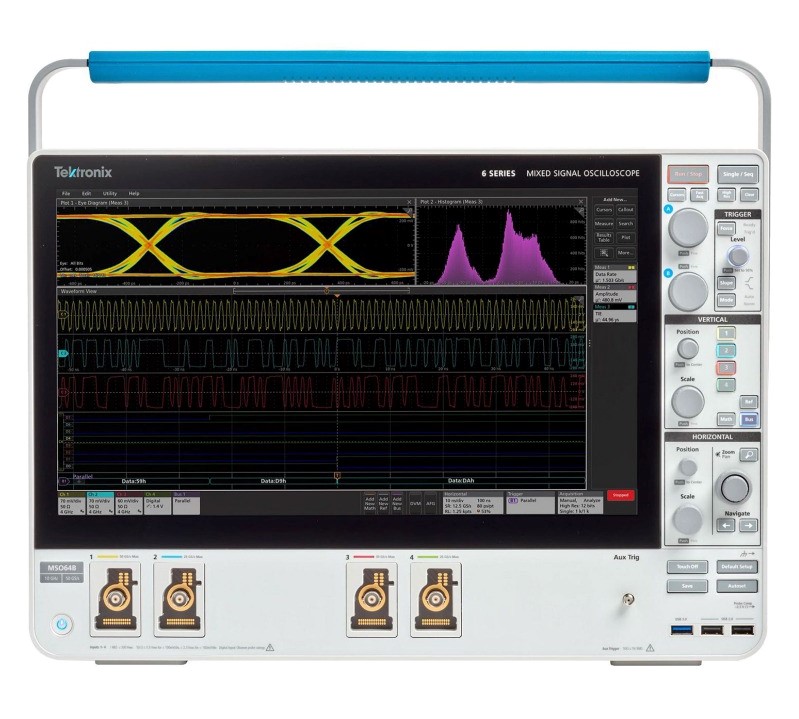

TEKTRONIX MSO64B Mixed Signal Oscilloscope
With the lowest input noise and up to 10 GHz analog bandwidth, the Tektronix MSO64B provides the best signal fidelity for analyzing and debugging today's embedded systems with GHz clock and bus speeds. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and Power Integrity require the observation of more than four analog signals to verify and characterize device performance and to debug challenging system issues. With the industry's largest high definition display and 4 FlexChannel inputs, Tektronix MSO64B let you measure one analog or four digital signals per channel.
The Tektronix MSO64B provides the performance to capture the signals of interest while minimizing the effects of unwanted noise when you need to capture high-amplitude signals while seeing smaller signal details. 12-bit analog-to-digital converters (ADCs) provides 16 times the vertical resolution of traditional 8-bit ADCs. A new High Res mode applies a hardware-based unique Finite Impulse Response (FIR) filter based on the selected sample rate. The oscilloscope has a large, high-resolution color display with a user-friendly interface that makes it easy to connect to a PC or other devices for data transfer and remote control. The Tektronix MSO64B has the performance you need to capture waveforms with the best possible signal fidelity and resolution for seeing small waveform details.
Specifications for the TEKTRONIX MSO64B Mixed Signal Oscilloscope Include:
| Bandwidth | 1 GHz to 10 GHz |
| Channels (Analog/Digital) | 4/32 |
| ADC Resolution | 12 bit |
| Sample Rate | Up to 50 GS/s |
Resi
Se non sei completamente soddisfatto del tuo acquisto, restituisci semplicemente l’articolo nelle condizioni originali entro 30 giorni dalla ricezione. Gli articoli restituiti devono essere inutilizzati e riconsegnati nell’imballaggio originale con tutta la documentazione allegata. Emetteremo un rimborso completo al ricevimento, escluse le spese di spedizione iniziali. In alternativa, se preferisci, possiamo sostituire l’articolo.
IVA
I prezzi sono al netto dell’IVA. Transazioni intracomunitarie: Secondo la Direttiva IVA dell’UE, le vendite B2B di beni all’interno dell’UE sono esenti da IVA. Dove applicata, l’aliquota IVA è del 23%. L’IVA non viene addebitata al di fuori dell’UE.
