Keithley

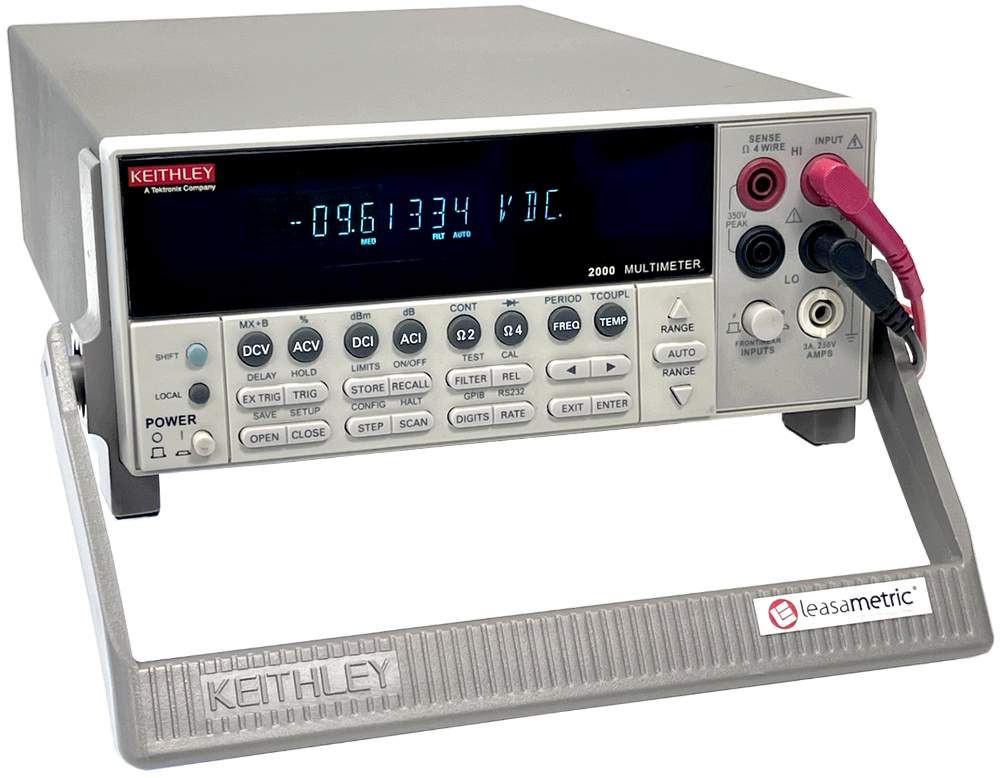

Keithley 2000
6½-Digit Digital Multimeter
Digital multimeter Instrument type
6½ digits Measurement resolution
100 mV – 1000 V DC voltage ranges
100 mV – 750 V AC voltage ranges
10 mA – 3 A DC current ranges
| Attribute | Value |
|---|---|
| Instrument type | Digital multimeter |
| Measurement resolution | 6½ digits |
| DC voltage ranges | 100 mV – 1000 V |
| AC voltage ranges | 100 mV – 750 V |
| DC current ranges | 10 mA – 3 A |
| AC current ranges | 1 A – 3 A |
| Resistance ranges | 100 Ω – 100 MΩ |
| Frequency range | 3 Hz – 500 kHz |
| Basic DCV accuracy | 0.002% |
| Scanner option | 10 channels (2000-SCAN) |
| Interfaces | GPIB, RS-232 |
| Programming | SCPI |
The Keithley 2000 is a 6½-digit digital multimeter combining high accuracy with fast measurement speed for bench and system use. It measures DC and AC voltage and current, 2- and 4-wire resistance, frequency, period, temperature, continuity and diode tests, with 0.002% basic DC voltage accuracy. An optional 10-channel internal scanner card (2000-SCAN) and GPIB and RS-232 interfaces make it a popular choice for production test and data logging.
Testwall can supply the used Keithley 2000 fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
