Keithley 2200-32-3
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 32 V |
| Output Current Range | 0 to 3 A |
| Maximum Output Power | 96 W |
| Line Regulation (Voltage) | ≤0.01% + 2 mV |
| Load Regulation (Voltage) | ≤0.01% + 2 mV |
| Ripple and Noise (Voltage, RMS) | ≤1 mVrms |
| Interface | USB, GPIB, RS-232 |
| Display | Dual 4-digit LED display |
| Input Voltage | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 40°C |
Keithley 2200-32-3 Options:
- 2200-32-3 - CS-1638-12 - Rear Panel Mating Connector
- 2200-32-3 - KPCI-488LPA - IEEE-488.2 Interface Board for the PCI Bus
- 2200-32-3 - USB-B-1 - USB Cable
- 2200-32-3 - 4299-7 - Fixed Rack Mount Kit
- 2200-32-3 - 7007-05 - Double Shielded Premium IEEE-488 Interface Cables, 0.5m (1.6 ft)
- 2200-32-3 - 7007-1 - Double Shielded Premium IEEE-488 Interface Cables, 1m (3.2 ft)
- 2200-32-3 - 7007-2 - Double Shielded Premium IEEE-488 Interface Cables, 2m (6.5 ft)
- 2200-32-3 - 7007-3 - Double Shielded Premium IEEE-488 Interface Cables, 3m (10 ft)
- 2200-32-3 - 7007-4 - Double Shielded Premium IEEE-488 Interface Cables, 4m (13 ft)
- 2200-32-3 - 2200-32-3-EW - 1 additional year of factory warranty
- 2200-32-3 - C/2200-32-3-3Y-STD - 3 calibrations within 3 years of purchase
- 2200-32-3 - C/2200-32-3-3Y-DATA - 3 (ANSI-Z540-1 compliant) calibrations within 3 years of purchase
- 2200-32-3 - C/2200-32-3-5Y-STD - 5 calibrations within 5 years of purchase
- 2200-32-3 - C/2200-32-3-5Y-DATA - 5 (ANSI-Z540-1 compliant) calibrations within 5 years of purchase
| Model | 2200-32-3 |
|---|

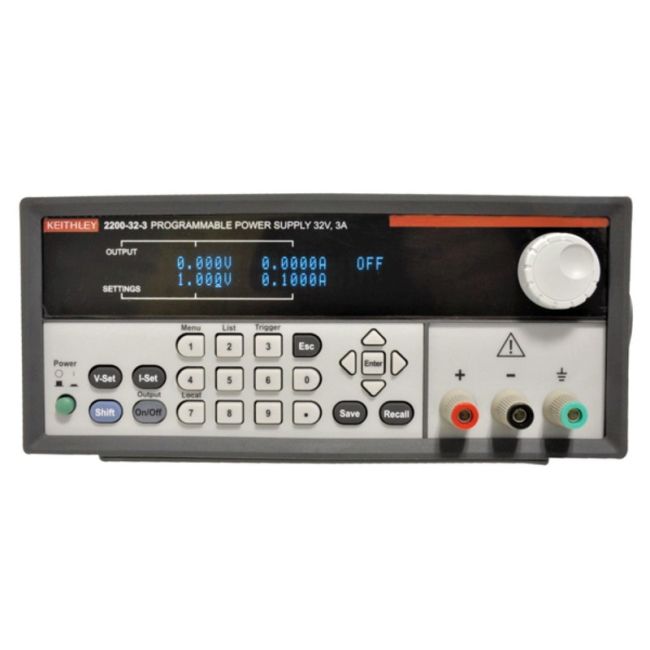

The Keithley 2200-32-3 Programmable DC Power Supply delivers 0–32 V and 0–3 A with 96 W max output, offering high resolution and dual-line display for real-time monitoring. It supports constant voltage and constant current modes with advanced list mode for up to 80 test steps and remote sensing to ensure voltage accuracy at the load.
Ideal for R&D labs, production testing, and device characterization, the 2200-32-3 includes GPIB and USB interfaces, remote sense, overvoltage protection, and TTL-compatible controls for automated, safe, and repeatable performance in test environments.
Testwall can supply the used Keithley 2200-32-3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2200-32-3.
