Keithley 2200-72-1
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 72 V |
| Output Current Range | 0 to 1 A |
| Maximum Output Power | 72 W |
| Voltage Setting Resolution | 10 mV |
| Current Setting Resolution | 1 mA |
| Line Regulation (Voltage) | ≤0.01% + 3 mV |
| Load Regulation (Voltage) | ≤0.01% + 3 mV |
| Ripple and Noise (RMS) | ≤3 mVrms |
| Interface | USB, RS-232 |
| AC Input | 100–240 VAC, 50/60 Hz |
Keithley 2200-72-1 Options:
- 2200-72-1 - CS-1638-12 - Rear Panel Mating Connector
- 2200-72-1 - KPCI-488LPA - IEEE-488.2 Interface Board for the PCI Bus
- 2200-72-1 - USB-B-1 - USB Cable
- 2200-72-1 - 4299-7 - Fixed Rack Mount Kit
- 2200-72-1 - 7007-05 - Double Shielded Premium IEEE-488 Interface Cables, 0.5m (1.6 ft)
- 2200-72-1 - 7007-1 - Double Shielded Premium IEEE-488 Interface Cables, 1m (3.2 ft)
- 2200-72-1 - 7007-2 - Double Shielded Premium IEEE-488 Interface Cables, 2m (6.5 ft)
- 2200-72-1 - 7007-3 - Double Shielded Premium IEEE-488 Interface Cables, 3m (10 ft)
- 2200-72-1 - 7007-4 - Double Shielded Premium IEEE-488 Interface Cables, 4m (13 ft)
- 2200-72-1 - 2200-72-1-EW - 1 additional year of factory warranty
- 2200-72-1 - C/2200-72-1-3Y-STD - 3 calibrations within 3 years of purchase
- 2200-72-1 - C/2200-72-1-3Y-DATA - 3 (ANSI-Z540-1 compliant) calibrations within 3 years of purchase
- 2200-72-1 - C/2200-72-1-5Y-STD - 5 calibrations within 5 years of purchase
- 2200-72-1 - C/2200-72-1-5Y-DATA - 5 (ANSI-Z540-1 compliant) calibrations within 5 years of purchase
| Model | 2200-72-1 |
|---|

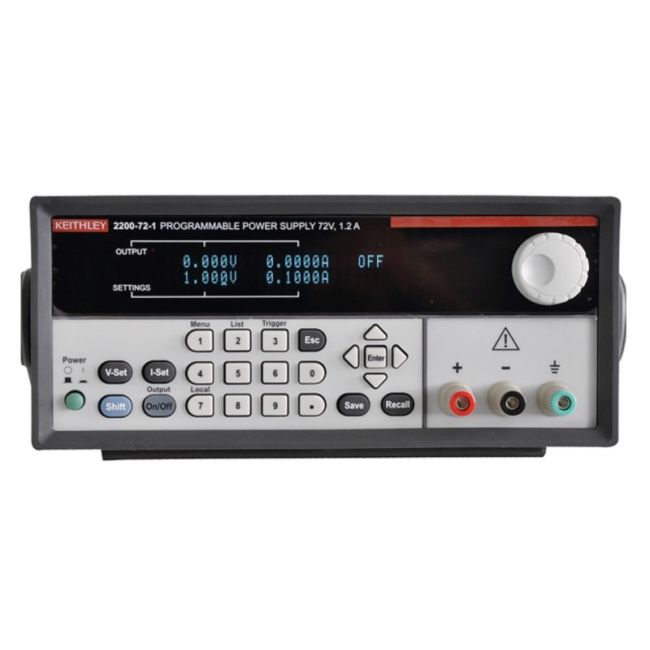

The Keithley 2200-72-1 Programmable DC Power Supply offers 0–72 V output, 0–1.2 A current, and up to 86 W of power. It features remote sensing, high-resolution output, a dual-line display, 80-step test sequences, and both USB and GPIB interfaces for automated control. Precision is ensured with tight regulation, ripple, and readback accuracy, making it ideal for testing sensitive electronic devices.
Ideal for lab, design, or production environments, this single-channel unit supports both constant voltage and constant current modes, protecting devices under test and offering programmable automation capabilities.
Testwall can supply the used Keithley 2200-72-1, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2200-72-1.
