Keithley 2260B-30-36
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 30 V |
| Output Current | 0 – 36 A |
| Output Power | 1080 W |
| Line Regulation (Voltage) | ≤0.01% + 10 mV |
| Load Regulation (Voltage) | ≤0.01% + 10 mV |
| Ripple and Noise (Voltage, RMS) | ≤3 mV RMS |
| Programming Interfaces | USB, LAN (LXI), RS-232, Analog |
| Command Set | SCPI compatible |
| Operating Temperature | 0°C to 40°C |
| Input Voltage | 100/120/220/240 VAC, 47–63 Hz |
Keithley 2260B-30-36 Options:
- 2260B-30-36 - EW - 3-year factory warranty extended to 1 additional year from date of shipment
- 2260B-30-36 - 5Y-EW - 3-year factory warranty extended to 5 years from date of shipment
- 2260B-30-36 - 3Y-STD - KeithleyCare 3 Year Standard Calibration Plan
- 2260B-30-36 - 3Y-DAT - KeithleyCare 3 Year Calibration with Data Plan
- 2260B-30-36 - 5Y-STD - KeithleyCare 5 Year Standard Calibration Plan
- 2260B-30-36 - 5Y-DAT - KeithleyCare 5 Year Calibration with Data Plan
| Model | 2260B-30-36 |
|---|

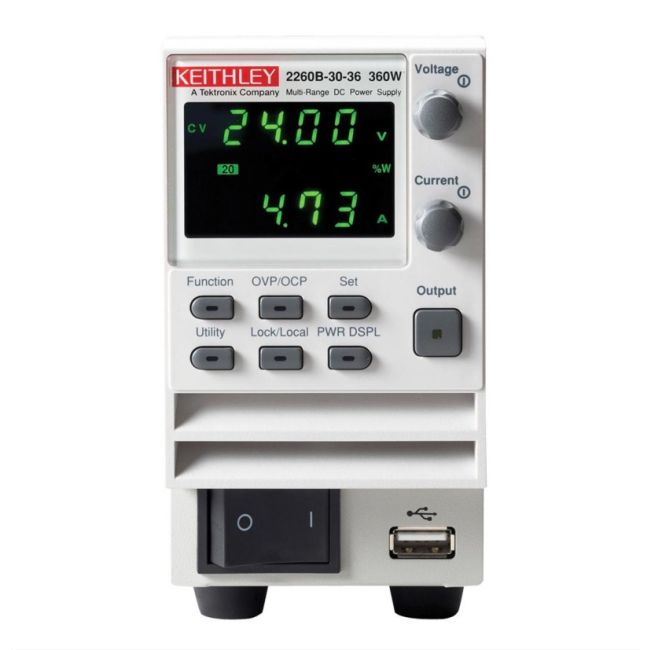

The Keithley 2260B-30-36 is a programmable DC power supply offering 360W output with a range of up to 30V and 36A, or 13.5A for higher voltage stability. It supports master-slave configurations to extend output up to 160V or 216A by combining units in series or parallel. With programmable slew rates, internal resistance simulation (up to 5.9Ω), and fast 1ms transient recovery, it's ideal for high-power, precision applications across R&D, production, and test environments.
This model simulates battery behavior, enables custom voltage waveforms, and fits compactly into standard racks. Interfaces include USB, LAN, and optional GPIB for automated testing.
Testwall can supply the used Keithley 2260B-30-36, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2260B-30-36.
