Xantrex

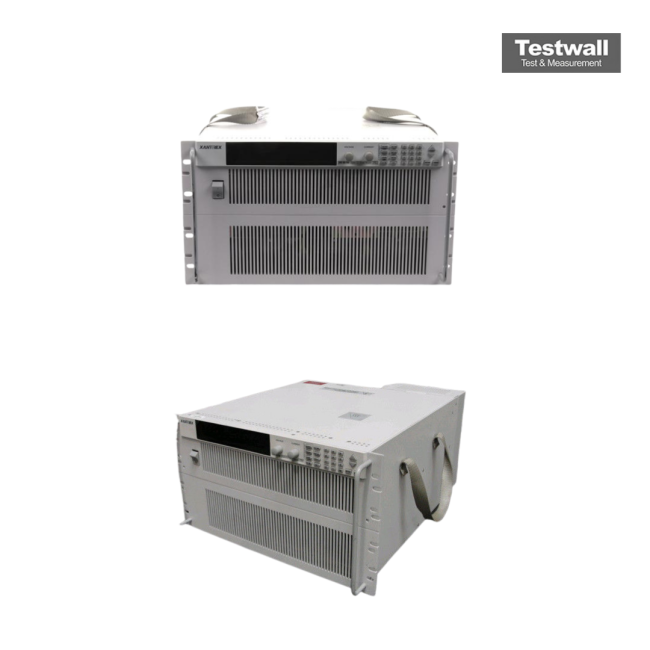

Xantrex XDC80-150
80V 150A Programmable DC Power Supply
0 – 80 V DC Output Voltage
0 – 150 A Output Current
12,000 W (12 kW) Output Power
208 / 400 / 480 V AC, Three-Phase Input Voltage
47 – 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 80 V DC |
| Output Current | 0 – 150 A |
| Output Power | 12,000 W (12 kW) |
| Input Voltage | 208 / 400 / 480 V AC, Three-Phase |
| Input Frequency | 47 – 63 Hz |
| Regulation (Line/Load) | 0.05% of full scale |
| Ripple and Noise (RMS) | 0.1% of full scale or 10 mV, whichever is greater |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Interface / Control | Analog programming, RS-232 / RS-485, GPIB (IEEE-488) optional |
| Cooling Method | Forced air cooling (variable speed fan) |
Xantrex XDC80-150 Options:
- XDC80-150 - GPIB - GPIB interface card (488.2 with SCPI)
- XDC80-150 - CANbus - CANbus communications link
- XDC80-150 - HV - High voltage input: 3Ø 342-500 VAC HV input
- XDC80-150 - GPIB-MC - GPIB-multichannel
| Model | XDC80-150 |
|---|
The Xantrex XDC80-150 programmable DC power supply delivers up to 80V and 150A with precision and durability. It ensures consistent low-ripple output, supporting both constant voltage and constant current modes for versatile industrial applications.
With advanced remote programmability and built-in protections against over-voltage, overload, and thermal faults, the XDC80-150 guarantees reliable performance during demanding testing and production environments.
Testwall can supply the used Xantrex XDC80-150, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Xantrex XDC80-150.
