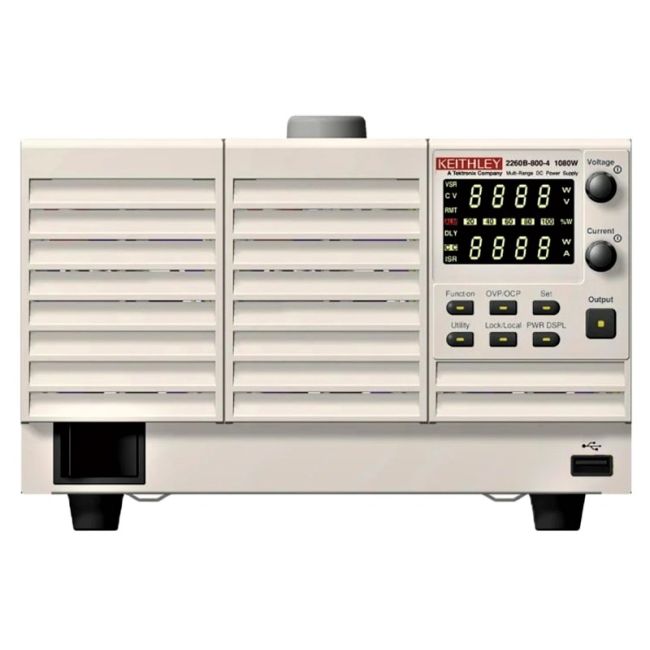

Keithley 2260B-800-4
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 800 V |
| Output Current | 0 – 4 A |
| Output Power | 1080 W |
| Line Regulation (Voltage) | ≤ 0.01% + 10 mV |
| Load Regulation (Voltage) | ≤ 0.01% + 10 mV |
| Programming Accuracy (Voltage) | ≤ 0.05% + 200 mV |
| Programming Accuracy (Current) | ≤ 0.1% + 8 mA |
| AC Input Voltage | 100/120/220/240 VAC, Single Phase |
| Interface | USB, RS-232, Analog (GPIB optional) |
| Form Factor | 2U Half-Rack |
Keithley 2260B-800-4 Options:
- 2260B-800-4 - 2260-001 - Accessory Kit: Analog control mating connector, pins, cover, and ground wire
- 2260B-800-4 - 2260-002 - Simple IDC Tool
- 2260B-800-4 - 2260-003 - Contact Removal Tool
- 2260B-800-4 - 2260-004 - Basic Accessories Kit: Air filter, analog connector cover, analog control lock lever, M8-size output terminal bolts, washers and screws, and M4-size output terminal screws with washers
- 2260B-800-4 - 2260-005 - Cable, 0.5m (1.6 ft.), to connect two Series 2260B power supplies in series
- 2260B-800-4 - 2260-006 - Cable, 0.5m (1.6 ft.), to connect two Series 2260B power supplies in parallel
- 2260B-800-4 - 2260B-007 - Cable, 0.5m (1.6 ft.), to connect three Series 2260B power supplies in parallel
- 2260B-800-4 - 2260B-GPIB-USB - GPIB-to-USB Adapter: Provides a GPIB interface for the Series 2260B power supplies
- 2260B-800-4 - 2260B-EXTERM - Extended Terminal: Test Leads, 0.7m (28 in.), and terminal box to bring outputs to the front of the instrument or another location. Magnetic base attaches to side of instrument
- 2260B-800-4 - 2260B-RMK-EIA - Rack Mount Kit (EIA racks)
- 2260B-800-4 - 2260B-RMK-JIS - Rack Mount Kit (JIS racks)
- 2260B-800-4 - Model Number-EW - 3-year factory warranty extended to 1 additional year from date of shipment
- 2260B-800-4 - Model Number-5Y-EW - 3-year factory warranty extended to 5 years from date of shipment
- 2260B-800-4 - C/Model Number-3Y-STD - KeithleyCare 3 Year Standard Calibration Plan
- 2260B-800-4 - C/Model Number-3Y-DAT - KeithleyCare 3 Year Calibration with Data Plan
- 2260B-800-4 - C/Model Number-5Y-STD - KeithleyCare 5 Year Standard Calibration Plan
- 2260B-800-4 - C/Model Number-5Y-DAT - KeithleyCare 5 Year Calibration with Data Plan
| Model | 2260B-800-4 |
|---|
The Keithley 2260B-800-4 is a programmable DC power supply with voltage output up to 800V and power delivery of 1080W, supporting 0–4.32A output. It offers programmable voltage and current slew rate control to prevent inrush damage, along with programmable internal resistance up to 185.4Ω for simulating battery output. It features USB, LAN, and optional GPIB interfaces, fast transient recovery time of 1ms, and analog input for custom DC signal generation.
It supports constant current mode for LED testing, analog control via voltage or resistance, and test sequence storage for multi-level voltage testing. Ideal for automotive, battery, and component testing applications.
Testwall can supply the used Keithley 2260B-800-4, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2260B-800-4.
