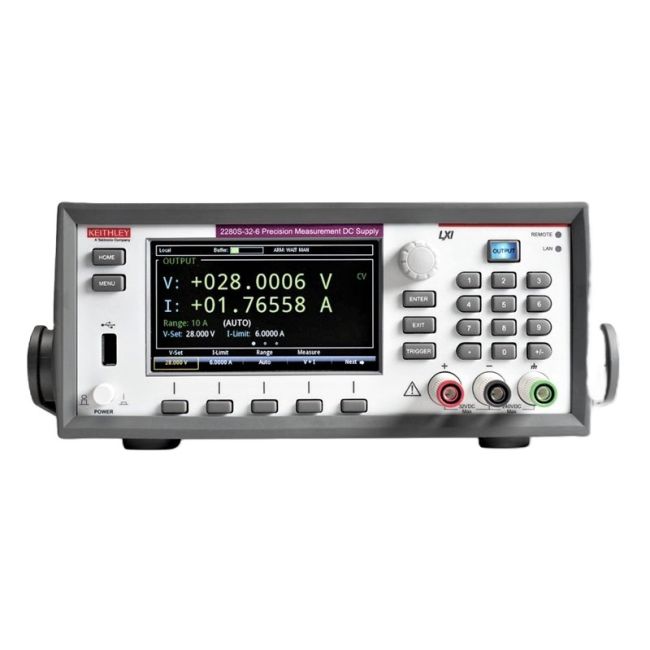

Keithley 2280S-32-6
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 32 V |
| Output Current Range | 0 to 6 A |
| Maximum Output Power | 192 W |
| Voltage Readback Resolution | 1 mV |
| Current Readback Resolution | 100 µA |
| Voltage Programming Accuracy | 0.03% + 10 mV |
| Current Programming Accuracy | 0.03% + 3 mA |
| Interface | USB, LAN (LXI), GPIB (optional) |
| Display | 4.3-inch color TFT touchscreen LCD |
| Form Factor | Half-rack, 2U |
Keithley 2280S-32-6 Options:
- 2280S-32-6 - EW - 1 Additional Year of Factory Warranty (total of 4 years)
- 2280S-32-6 - 5Y-EW - 2 Additional Years of Factory Warranty beyond the 3-Year factory warranty (total of 5 years)
- 2280S-32-6 - C/2280S-32-6-3Y-STD - 3 Calibrations Within 3 Years of Purchase
- 2280S-32-6 - C/2280S-32-6-3Y-DATA - 3 (ANSI-Z540-1 compliant) Calibrations Within 3 Years of Purchase
- 2280S-32-6 - C/2280S-32-6-3Y-1702 - 3 (ISO 17025 Accredited) Calibrations within 3 Years of Purchase
- 2280S-32-6 - C/2280S-32-6-5Y-STD - 5 Calibrations Within 5 Years of Purchase
- 2280S-32-6 - C/2280S-32-6-5Y-DATA - 5 (ANSI-Z540-1 compliant) Calibrations Within 5 Years of Purchase
- 2280S-32-6 - C/2280S-32-6-5Y-1702 - 5 (ISO 17025 Accredited) Calibrations within 5 Years of Purchase
| Model | 2280S-32-6 |
|---|
The Keithley 2280S-32-6 Precision Measurement DC Power Supply delivers 0-32V and up to 6A with superior accuracy and linear regulation. Its high-resolution TFT display, soft-key interface, and built-in graphing enable real-time visualization of voltage/current trends. Measurement sensitivity spans from nanoamps to 6A with 6½-digit resolution, and interfaces include USB, LAN, and GPIB for versatile connectivity.
Ideal for benchtop and automated test systems, the Keithley 2280S-32-6 supports programmable output sequences, list mode, and quick-discharge capabilities with 0.45A sink current.
Testwall can supply the used Keithley 2280S-32-6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2280S-32-6.
