Keithley 2400
| Attribute | Value |
|---|---|
| Voltage Source Range | 200 mV to 200 V |
| Current Source Range | 1 µA to 1 A |
| Voltage Measurement Accuracy | 0.012% basic accuracy |
| Current Measurement Accuracy | 0.027% basic accuracy |
| Maximum Power Output | 20.2 W |
| Source-Measure Resolution | 6½ digits |
| Interface | IEEE-488 (GPIB) and RS-232 |
| Minimum Resistance Measurement | 100 µΩ |
| Maximum Resistance Measurement | 211 MΩ |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
Keithley 2400 Options:
- 2400 - 2400 - 200V, 1A, 20W SourceMeter
- 2400 - 2400-C - 200V, 1A, 20W SourceMeter with Contact Check
- 2400 - 2400-LV - 20V, 1A, 20W SourceMeter
- 2400 - 2410 - 1100V, 1A, 20W SourceMeter
- 2400 - 2410-C - 1100V, 1A, 20W SourceMeter with Contact Check
- 2400 - 2420 - 60V, 3A, 60W SourceMeter
- 2400 - 2420-C - 60V, 3A, 60W SourceMeter with Contact Check
- 2400 - 2425 - 100V, 3A, 100W SourceMeter
- 2400 - 2425-C - 100V, 3A, 100W SourceMeter with Contact Check
- 2400 - 2430 - 100V, 10A, 1000W Pulse Mode SourceMeter
- 2400 - 2430-C - 100V, 10A, 1000W Pulse Mode SourceMeter with Contact Check
- 2400 - 2440 - 40V, 5A, 50W SourceMeter
- 2400 - 2440-C - 40V, 5A, 50W SourceMeter with Contact Check
| Model | 2400 |
|---|

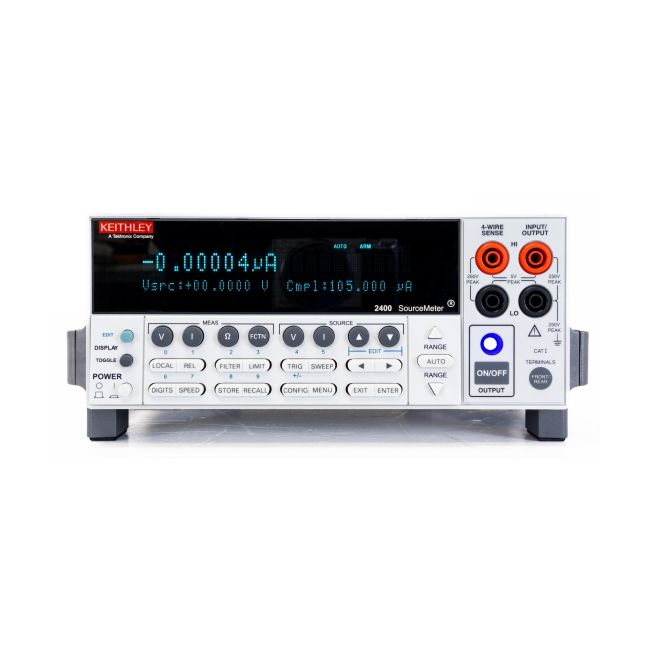

The Keithley 2400 SourceMeter is a compact 200V, 1A, 20W SMU combining precision sourcing and 6.5-digit measurement. It features a low-noise DC source and high-repeatability multimeter in one unit, capable of voltage/current sourcing, measurement, and resistance testing. Ideal for characterizing and testing electronic components across various industries.
It supports four-quadrant operation, high-speed readings (1700/s), 2- to 6-wire remote sensing, and automation via GPIB, RS-232, and DIO ports, enhancing efficiency in development and production testing.
Testwall can supply the used Keithley 2400, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2400.
