Keithley

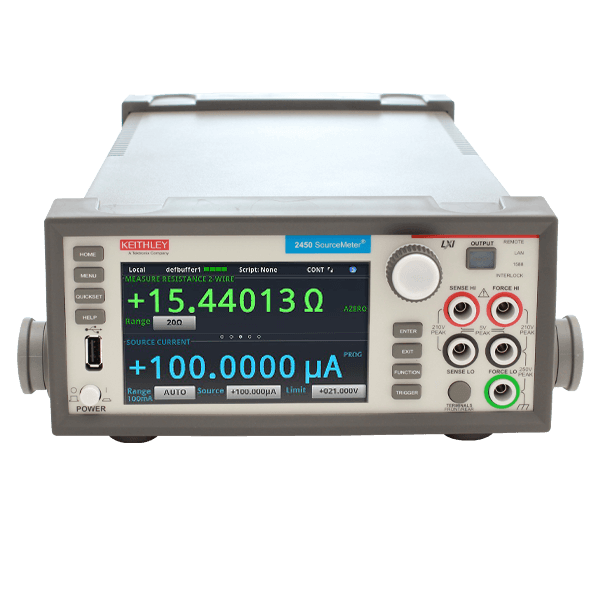

Keithley 2450
200V, 1A Graphical SourceMeter
Graphical SourceMeter (SMU) Instrument type
1 Number of channels
±200 V Maximum voltage (source/measure)
±1 A (up to 21 V) Maximum current (DC)
22 W Maximum power (DC)
| Attribute | Value |
|---|---|
| Instrument type | Graphical SourceMeter (SMU) |
| Number of channels | 1 |
| Maximum voltage (source/measure) | ±200 V |
| Maximum current (DC) | ±1 A (up to 21 V) |
| Maximum power (DC) | 22 W |
| Minimum current resolution | 10 fA |
| Minimum voltage resolution | 10 nV |
| Measurement resolution | 6½ digits |
| Display | 5-inch capacitive touchscreen |
| Interfaces | USB, GPIB, LAN (LXI), Digital I/O, TSP-Link |
| Programming | SCPI, TSP |
The Keithley 2450 is a 200 V, 1 A, 20 W graphical SourceMeter combining a precision power supply, true current source, 6½-digit DMM, electronic load and trigger controller in one instrument. Its 5-inch capacitive touchscreen makes setup and data visualisation quick, while measurement sensitivity reaches down to the 10 fA and 10 nV range. It suits I-V characterisation of semiconductors, nanomaterials, solar cells and LEDs, and supports SCPI and TSP scripting for automated test.
Testwall can supply the used Keithley 2450 fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
