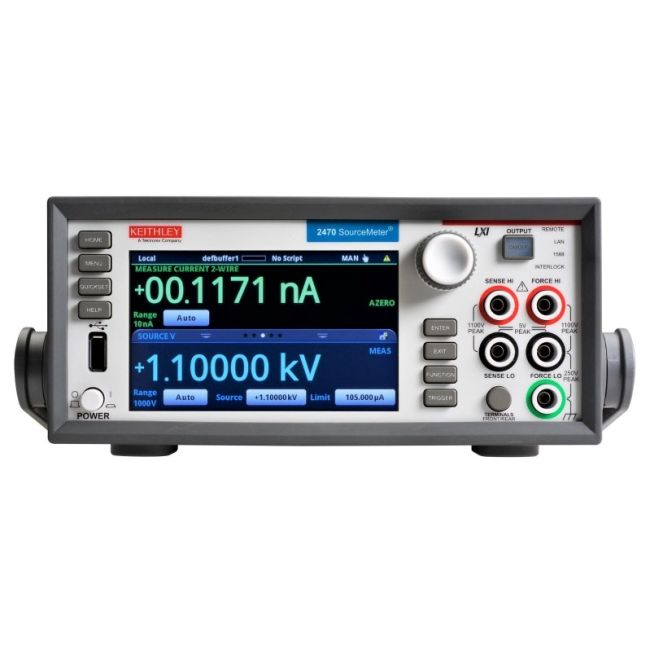

Keithley 2470
| Attribute | Value |
|---|---|
| Voltage Range | 100 nV to 1100 V |
| Current Range | 10 fA to 1 A |
| Maximum Source Power | 22 W |
| Voltage Measurement Accuracy | 0.015% basic accuracy |
| Current Measurement Accuracy | 0.020% basic accuracy |
| Resistance Measurement Range | 1 µΩ to 200 TΩ |
| Display | 5-inch (12.7 cm) graphical touchscreen LCD |
| Interface/Connectivity | USB, GPIB, Ethernet (LXI), TSP-Link |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Safety/Compliance | CAT II 1100 V safety rated, CE, CSA compliant |
Keithley 2470 Options:
- 2470 - 3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
- 2470 - 5Y-EW - 1-year factory warranty extended to 5 years from date of shipment
- 2470 - C/2470-3Y-17025 - KeithleyCare 3 Year ISO 17025 Calibration Plan
- 2470 - C/2470-3Y-DATA - KeithleyCare 3 Year Calibration w/Data Plan
- 2470 - C/2470-3Y-STD - KeithleyCare 3 Year STD Calibration Plan
- 2470 - C/2470-5Y-17025 - KeithleyCare 5 Year ISO 17025 Calibration Plan
- 2470 - C/2470-5Y-DATA - KeithleyCare 5 Year Calibration w/Data Plan
- 2470 - C/2470-5Y-STD - KeithleyCare 5 Year STD Calibration Plan
- 2470 - C/NEW DATA - Calibration Data for New Units
- 2470 - C/NEW DATA ISO - ISO-17025 Calibration Data for New Units
| Model | 2470 |
|---|
The Keysight (Aglient) 2470 High Voltage SourceMeter Source Measure Unit combines a five-inch full-color, high-resolution capacitive touchscreen GUI with advanced Touch, Test, Invent® technology to deliver intuitive operation, minimize the learning curve, and optimize productivity. With 1100 V sourcing range, 10 fA current resolution, and built-in measurement sequencing, it provides precise, high-accuracy performance for demanding test applications.
Engineered for characterizing and testing high-voltage, low-leakage devices and materials—including silicon carbide (SiC) and gallium nitride (GaN) semiconductors, power MOSFETs, transient suppression and circuit protection modules, power electronics, and battery cells—in both standalone lab benches and automated rack environments, the 2470 enhances throughput, reliability, and measurement fidelity.
Testwall can supply the used Keithley 2470 High Voltage SourceMeter® Source Measure Unit, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2470.
