Keithley 2601
| Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Voltage Source Range | 200 mV to 40 V |
| Current Source Range | 100 nA to 1.5 A (DC), 10 A (pulse) |
| Voltage Measurement Range | 100 mV to 40 V |
| Current Measurement Range | 100 nA to 1.5 A |
| Minimum Voltage Source Resolution | 1 µV |
| Minimum Current Source Resolution | 100 fA |
| Maximum Power Output | 40.4 W |
| Interface/Connectivity | GPIB (IEEE-488), RS-232 |
| Programming Language | Test Script Processor (TSP) with embedded Lua scripting |
| Model | 2601 |
|---|

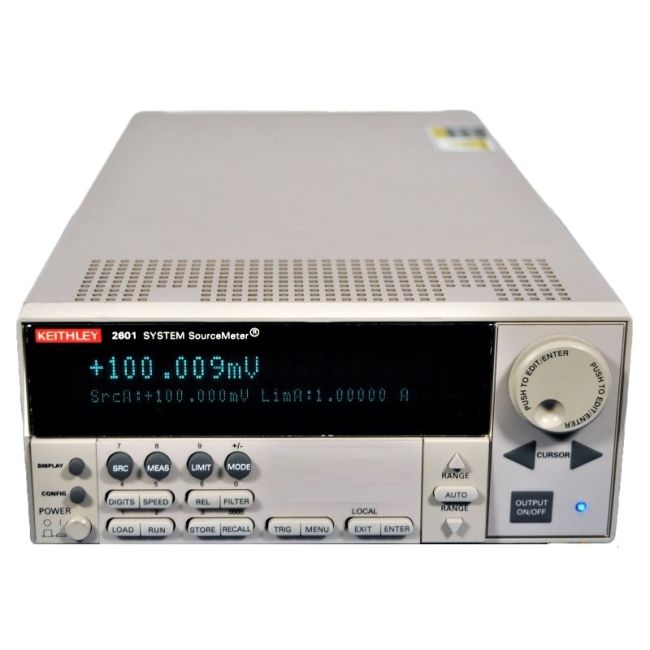

The Keysight (Agilent) Keithley 2601 SourceMeter delivers precision DC, pulse, and low-frequency AC source-measure testing with a high-speed third-generation SMU design, embedded Test Script Processor, TSP-Link bus, single 40 W/3 A electrically isolated channel, 5½-digit multimeter, and low-frequency arbitrary waveform generator for superior measurement integrity.
It features up to 50 000 lines of nonvolatile TSP code storage, over 200 000 reading capacity, 10 000 readings/s rate, 200 µs pulse capability, auto-ranging, custom measurement functions for diodes and FETs, I/V sweeps, thermal response tests, plus GPIB, RS-232, and 14-bit digital I/O for versatile test sequences.
Testwall offers this used Keithley 2601 fully tested, complete with expert support, global delivery, and optional calibration services, ensuring unmatched reliability, performance, and service quality to meet demanding application needs better than competing providers.
