Keithley 2602A
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Voltage Source Range | 200 mV to 40 V |
| Current Source Range | 100 nA to 3 A (DC), 10 A (pulse) |
| Minimum Source Resolution | 100 nV (voltage), 100 fA (current) |
| Measurement Functions | Voltage, Current, Resistance, Power |
| Maximum Power Output | 30 W per channel (DC), 60 W per channel (pulse) |
| Measurement Speed | Up to 10,000 readings per second |
| Interface/Connectivity | IEEE-488 (GPIB), RS-232 |
| Programming Language | Test Script Processor (TSP), SCPI |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Model | 2602A |
|---|

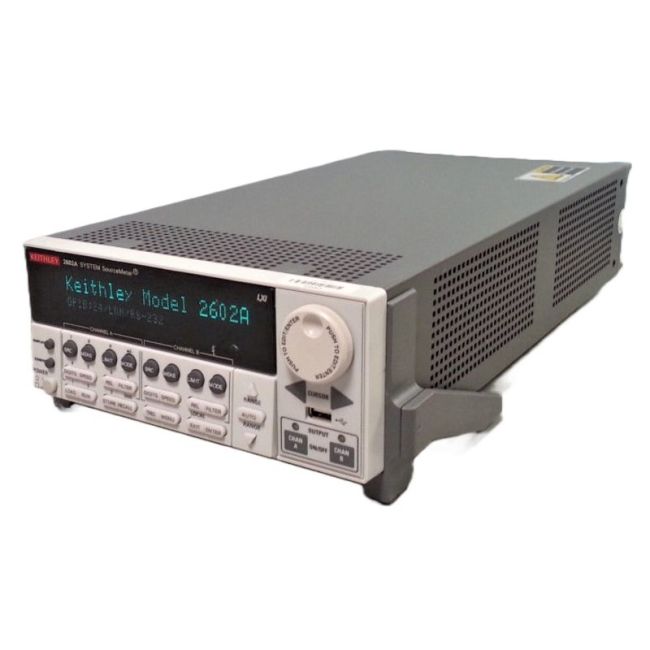

The Keithley 2602A SourceMeter is a dual-channel system instrument combining precision power supplies, true current sources, a high-speed digital multimeter, arbitrary waveform and pulse generators, electronic load, and trigger controller in one LXI Class C compliant bench-top and system-level unit with USB data storage.
With embedded TSP® Express software for quick I-V bench-top tests and the advanced Test Script Processor architecture enabling parallel test execution, precision timing under 500 ns, and up to 20 000 readings per second across a 1 fA–10 A and 1 µV–200 V dynamic range, the 2602A maximizes throughput and lowers testing costs, including remote monitoring capabilities.
Testwall supplies this used Keithley 2602A SourceMeter fully tested, offering expert support, global delivery, and optional calibration and repair services, ensuring high-performance I-V characterization with unmatched reliability and service quality that outclasses competitors for versatile instrumentation solutions.
