Keysight (Agilent) B2962B
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Voltage Output Range | ±210 V |
| Current Output Range | ±3 A DC, ±10 A Pulse |
| Minimum Current Resolution | 10 fA |
| Power Output (per channel) | 30 W |
| Voltage Measurement Accuracy | 0.01% + 300 µV |
| Current Measurement Accuracy | 0.05% + 1 pA |
| Output Impedance | Low Noise, High Stability floating output |
| Interface/Connectivity | GPIB, USB, LAN (LXI Core) |
| Form Factor | Benchtop, 2U Half Rack |
Keysight (Agilent) B2962B Options:
- B2962B - 1A7 - Calibration + Uncertainties + Guardbanding (Not Accredited)
- B2962B - A6J - ANSI Z540-1-1994 Calibration
- B2962B - UK6 - Commercial Calibration Certificate with Test Data
| Model | B2962B |
|---|

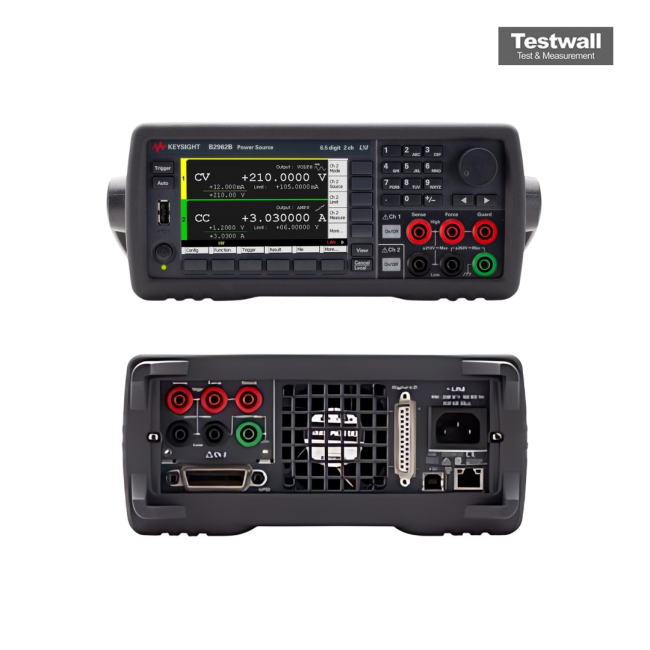

Keysight (Agilent) B2962B Low Noise Power Source
The Keysight B2962B 6.5 Digit Low Noise Power Source is a new bench-top power supply/source with revolutionary capabilities and functions not previously available. Its unique features include bipolar cur sourcing and sinking, a programmable output resistance feature, and a timedomain waveform viewer supported in the graphical user interface (GUI). In addition to these innovative bench-top power supply/source features, the B2962B can be controlled remotely using Keysight PC-based Pathwave BenchVue, Quick I/V Measurement Software or through any LXI compliant web browser.
The Keysight B2962B's superior performance and innovative functions make these instruments ideal companion power supplies/sources for use with other instruments such as network analyzers, spectrum analyzers, digital multimeters, and nano-voltmeters. For added convenience, the B2962B provides multiple viewing modes: single view, dual view (B2962B only) and graph view. These capabilities not only increase test and evaluation efficiency, but they also make the instrument easy to use without the need to struggle through paper manuals.
Specifications for the Keysight (Agilent) B2962B Low Noise Power Source Include:
| Max. voltage | ± 210 V |
| Max. current | ± 3.03 A |
| Minimum resolution | 100 nV /10 fA |
| Channels | 2 |
